Vision Master Calibration
758
FH/FZ5 Processing Item Function Reference Manual
Error detection values
This value is for confirming the accuracy of calibration result.
Output the error detection values when the Stage has θ-axis.
T
his value is calculated using a calibra
tion data calculated in Master calibration and a measurement result
sampled rotation movement.
If a problem of magnification, axis angle or center position
of r
otation is occurred, this value may be larger.
In the followings, describe the calculation
method in the case of sampling time is 2 as an example.

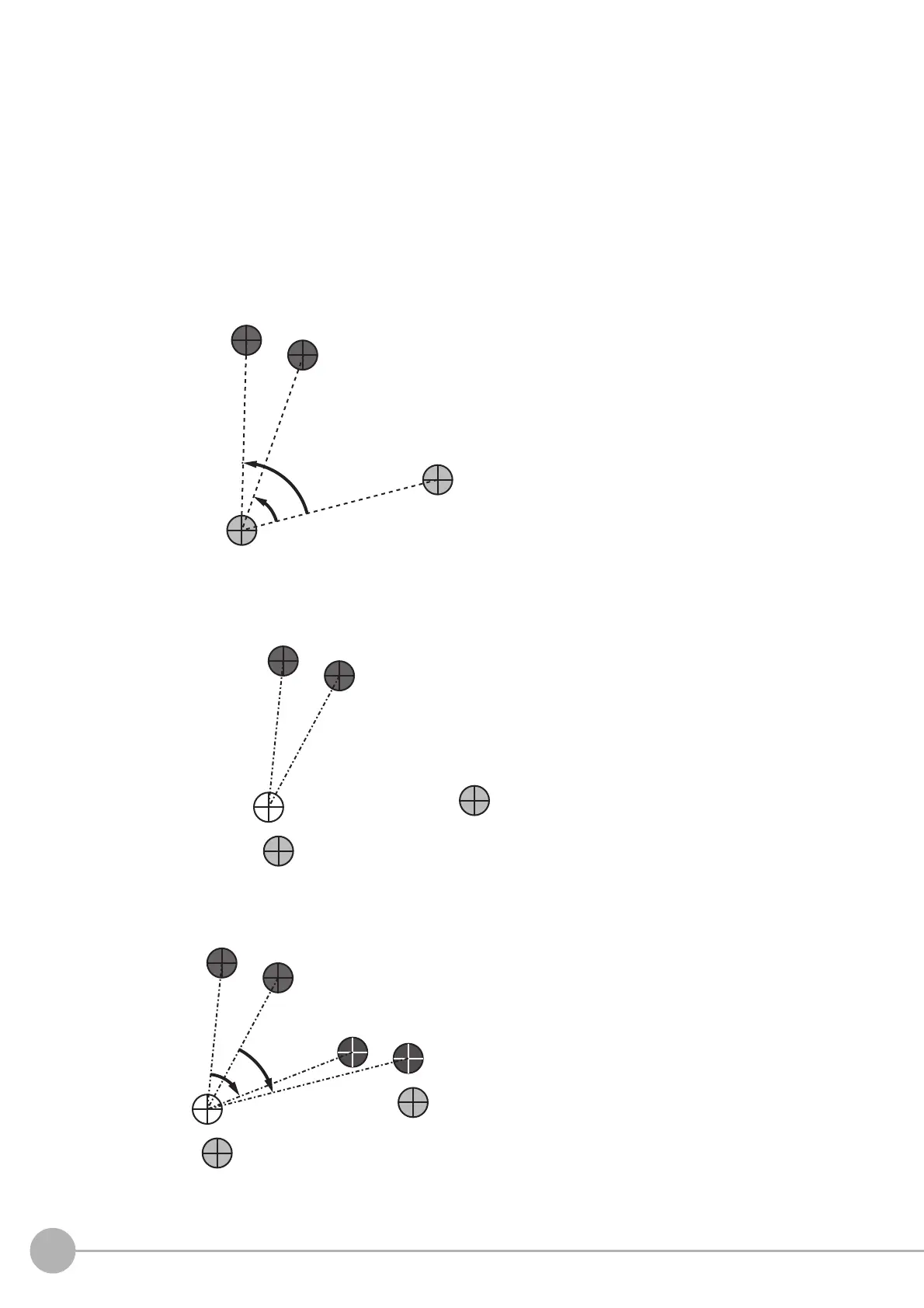

1) Rotation sampling is executed based on
sampling settings. A reference position
may change depending on sampling
method.
2) Calculates the center position of rotation
fr
om sampling result.
3) Calculates the reverse rotation point from
the calcul
ated rot
ation point each of
sampled points.
Reference position
(SX,SY)
Rotation center position of machine
Sampling position1
(x1,y1)
Sampling position2
(x2,y2)
Sampling position1
(x1,y1)
Sampling position2
(x2,y2)
Calculated position
of rotation center
Reference position
(SX,SY)
Rotation center position of machine
Sampling position
(x1,y1)
Sampling position2
(x2,y2)
Reversed position from
position 1 and calculated
rotation center (Sx1,Sy1)
Reversed position
from position 2
and calculated
rotation center
(Sx2,Sy2)
Calculated
position
of rotation
center
Reference position
(SX,SY)
Rotation center position of machine
