Camera Image Input HDR
74
FH/FZ5 Processing Item Function Reference Manual

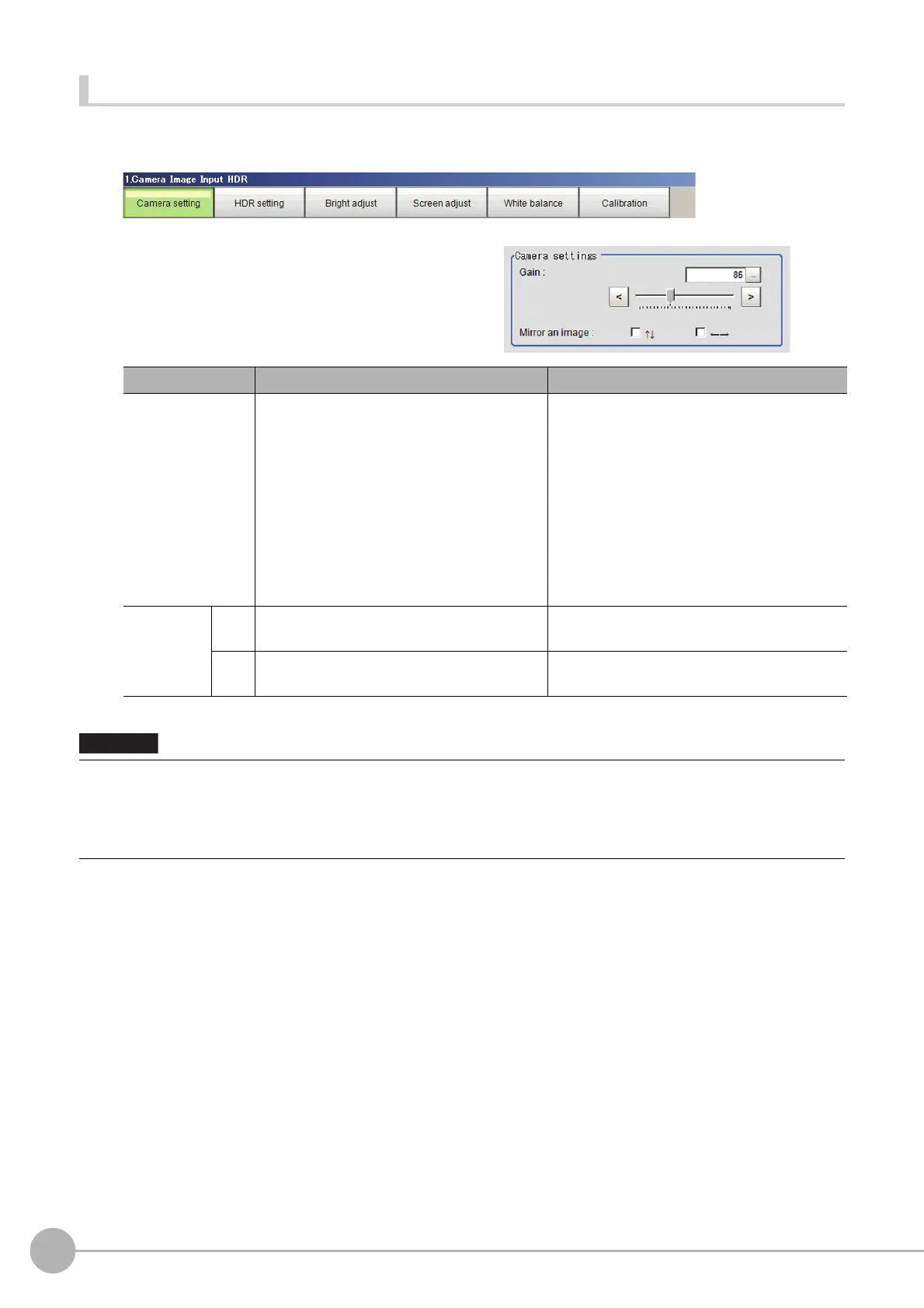

Camera Settings
Specify the camera gain and reverse conversion.
1 In the Item Tab area, click [Camera setting].
2 In the "Camera settings" area, specify
the camera gain and reverse conversion
settings.
Setting item Setting value [Factory default] Description
Gain
• FZ-SC/S/SHC/SH
0 to 230 [85]
• FZ-SC2M/S2M/SC5M2/S5M2/SF/SP
0 to 230 [50]
• FH-SC02/SM02/SC04/SM04/SC12/SM12
0 to 255 [0]
• FH-SC05R/SM05R
0 to 63 [0]
Set the camera gain when the shutter speed,
the len
s
aperture, and lighting conditions
cannot be used to brighten the image.
Usually, the factory default value can be used.
Mirror an
imag
e
↑↓
•
Checked
•[Unchecked]
Place a check here when reversing the camera
imag
e ve
rtically.
←→
• Checked
•[Unchecked]
Place a check here when reversing the camera
imag
e horizon
tally.
With CMOS cameras, striped bands of noise can arise if the camera gain is se
t too high, a characteristic inherent in the
imaging element specifications.
A number of pixel defects may also occur; however, such defect
s sho
uld not cause problems with product defects or failure.
If having problems with striped bands of noise or pixel defects affecting the measurement results, lower the camera gain
setting or use a CCD camera.
