Calc Axis Move by Multipoint
802
FH/FZ5 Processing Item Function Reference Manual

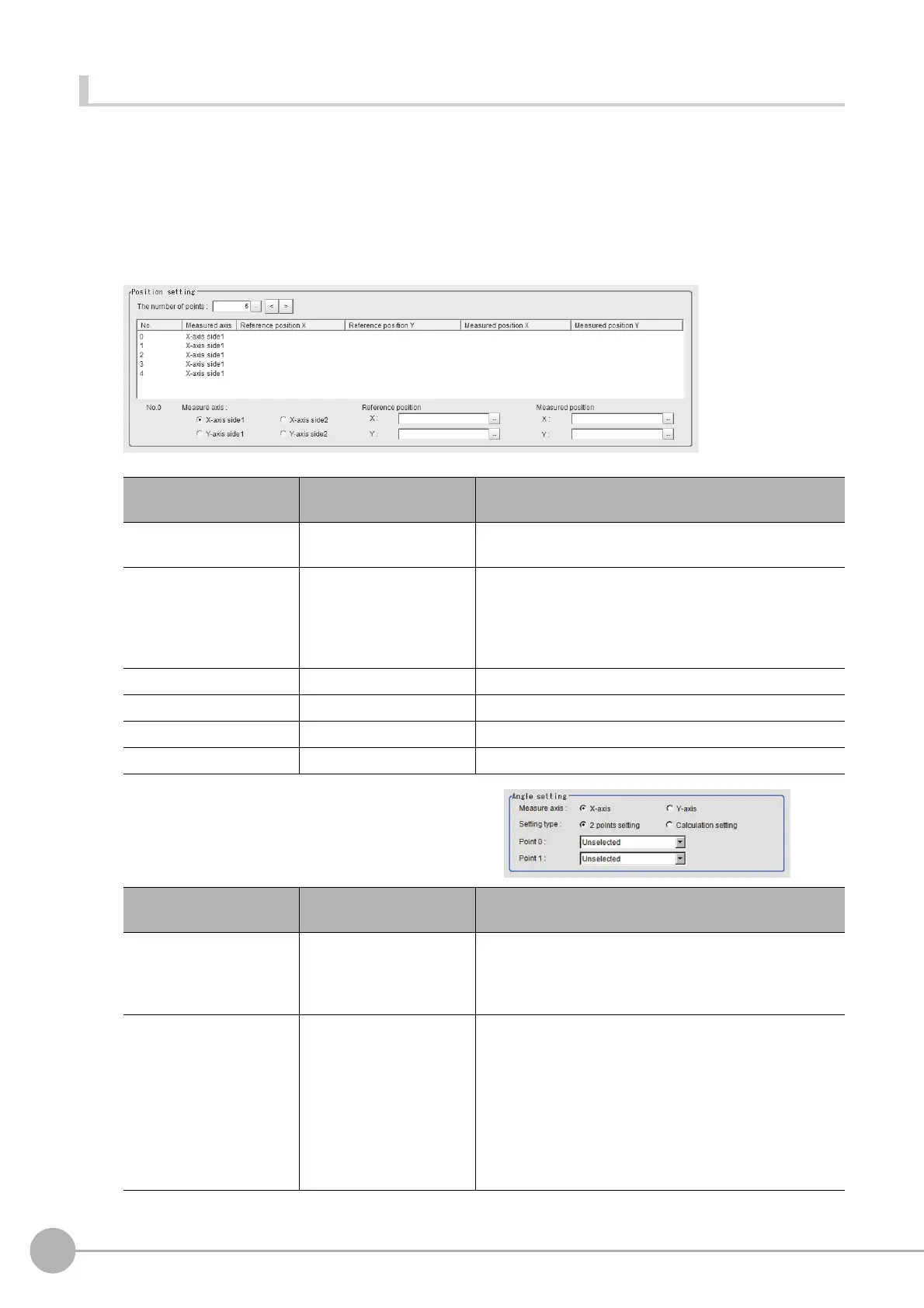

Side measurement
Use the procedure below to measure position and angle by detecting the edges of the sides of a rectangular or
square object to measure. Set at least two of the measurement points so as to measure the same side. Use the
Edge Position processing item for edge measurement. For each measurement point, the Edge Position
processing item must be registered and used in the measurement flow. The movement amount may not be
calculated correctly if you use a processing item other than the Edge Position processing item.
1 Set a number of points, Measured axis, reference position, and Measured position in the
"Position setting" area.
2 In "Angle setting" area, specify the
measurement axis and setting type.
Setting item
Setting value
[Factory default]
Description
The number of points
3 to 8
[5]
Used to set the number of locations to measure in the four
sides.
Measured axis
• [X-axis side 1]
• X-axis side 2
• Y-axis side 1
• Y-axis side 2
Set the measurement axis.
The measurement axis must be set to th
e actual
coordinate
axis that is parallel to the direction of the measurement
region of the Edge Position processing item used for
measurement.
Reference position X --- Set the X coordinate of the reference position.
Reference position Y --- Set the Y coordinate of the reference position.
Measured position X --- Set the X coordinate of the measu
r
ement position.
Measured position Y --- Set the Y coordinate of the measur
ement position.
Setting item
Setting value
[Factory default]
Description
Measure axis
•[X-axis]
• Y-axis
Used to set the measurement axis used for angle
calcul
ati
on.
This setting item is enabled when [2 points setting] is
specified
for the method.
Setting type
• [2 points setting]
• Calculation setting
Set the method for angle specification.
• 2 points setting:
A method in which the measurement axis used for angle
ca
lcula
tion is set by specifying two points on the same
side.
• Calculation setting:
A method in which the reference angle and
mea
s
urement angle are each set by a calculation
expression.
