Calc Axis Move by MultipointFH/FZ5 Processing Item Function Reference Manual
803
4
Support Inspection and Measurement
3 Set the current axis position.
Set the axis position of external device.
Point 0 --- This setting is enabled when [2 points setting] is selected.
Select each of the two points among the points set in the
position setting area. The two points selected must be
measurement points used to measure the same side.
Point 1 ---
Reference angle --- This setting is enabled when [Calculation setting] is
selected. Used to set the referenc
e angle and
measurement angle by calculation expressions.
Measured angle ---
• Use the Edge Position processing item for edge measurement. The movement amount will not be calculated
correctly if you use a processing item other than Edge Position.
• For measurement regions of two locations on one edge used for
angle calculations, the precision with which the
angle is calculated increases in proportion to the interval between measurement regions.
• Only specified movement axis or exist axial direction are applied to set in the case of X, Y, Xθ, Yθ, θX and θY
stages. Not exist axial direction is not displayed.
Setting item
Setting value
[Factory default]
Description

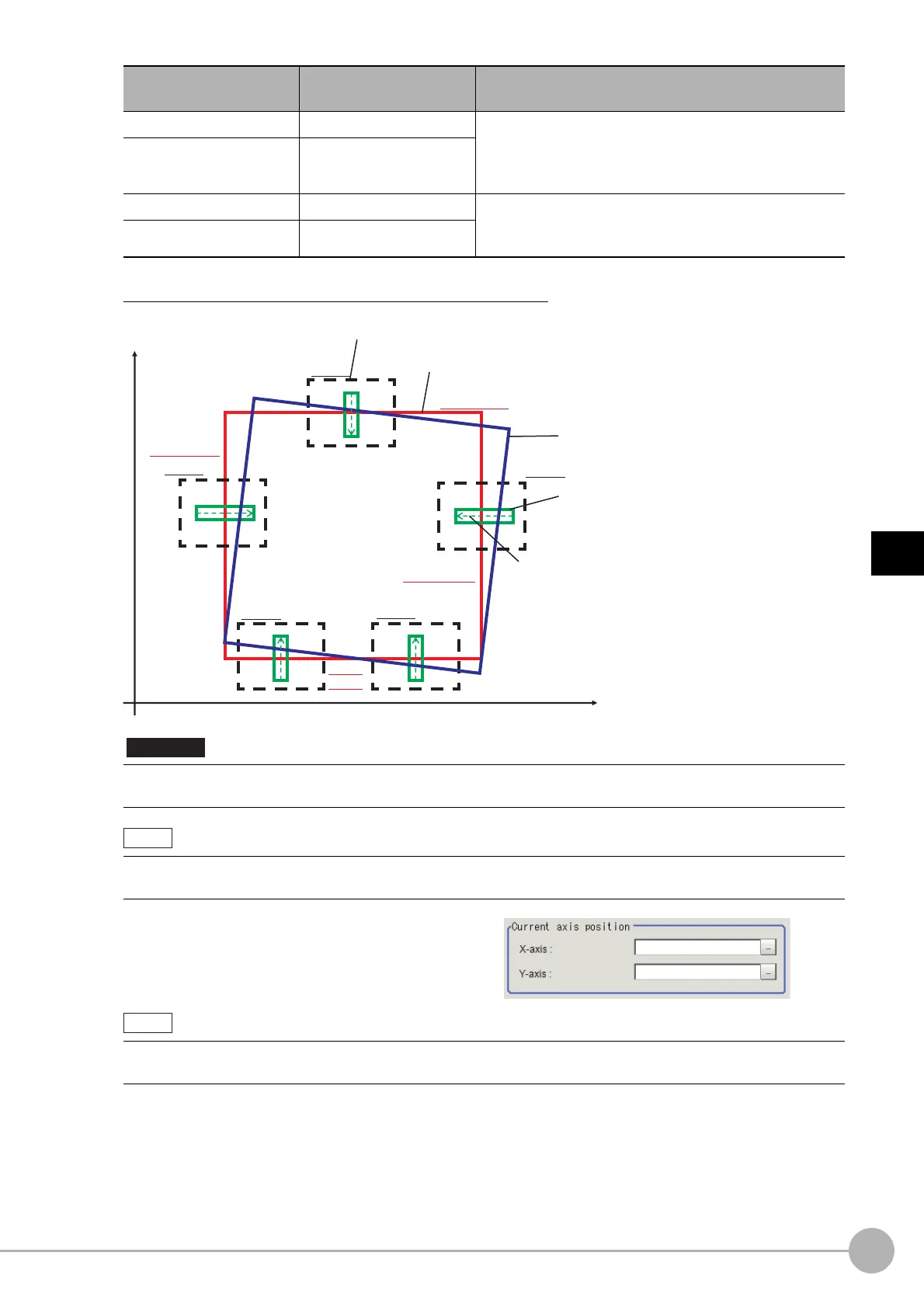

Example: When measuring edge positions at five points on the sides
X
Y
Point 0
Point 1
Point 4
Point 2
Point 5
Y-axis side 1
Y-axis
side 2
X-axis side 1
X-aixs side 2
Measurement position
Reference position
Camera position
Measurement area (edge position)
Measurement direction
Parameters and values to be set
· [Point number]: 5
· Point 0: [X-axis side 1] (or [X-axis side 2])
· Point 1: [X-axis side 2] (or [X-axis side 1])
· Point 2: [Y-axis side 1] (or [Y-axis side 2])
· Point 3: [Y-axis side 2] (or [Y-axis side 1])
· Point 4: [Y-axis side 2] (or [Y-axis side 1])
To Next Page
