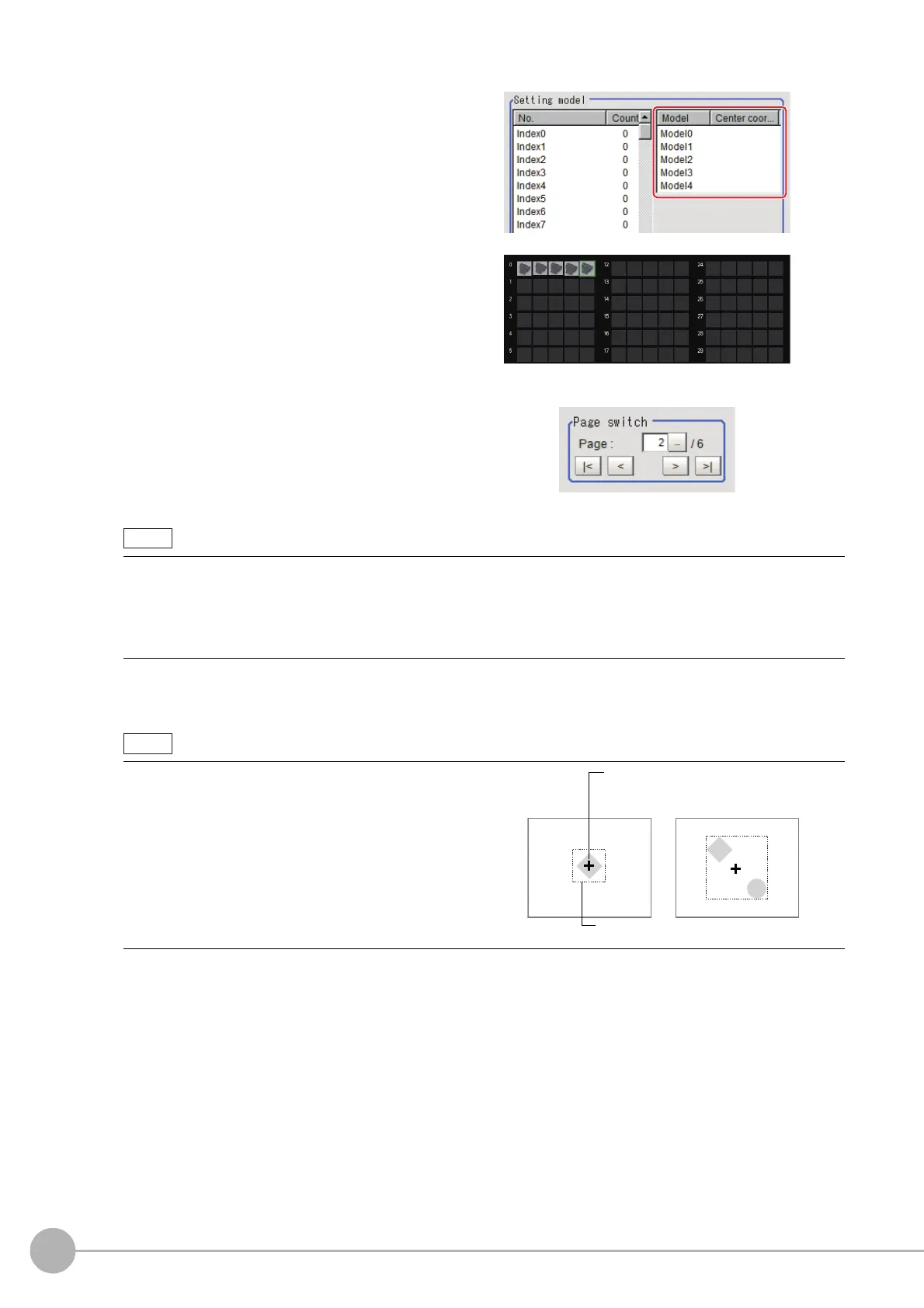

4 Click [OK].
The model is registered and its central X and
Y coordinate values are displayed in the
"Setting model" area.
The image specified for the model is displayed
in
th
e Image Display area.
Set the page in the Switch Page area to
d
i
splay models with index numbers 36 or
more.
5 To register two or more models, repeat the Steps Reference: 2 (p.215) to Reference: 4
(p.216).
Model Status and Measurement Processing
• Measurement time and accuracy may be affected by the status of
model in the following ways. Please select
measurement objects that are in good condition (clean) for Model Registration.
• In the case of large or complicated mode
ls, pro
cessing time is prolonged.
• With extremely small models or models without fe
atures, search processing is unstable.
• When a model is registered, the central coordinates of the
model
are registered as the detection point. A detection
point is a point output as a measurement value. If multiple
figures are combined, the central coordinates of the
circumscribed rectangle are registered.
Detection coordinate
Can be changed to an appreciate position.
Model
