Camera Image Input
32
FH/FZ5 Processing Item Function Reference Manual

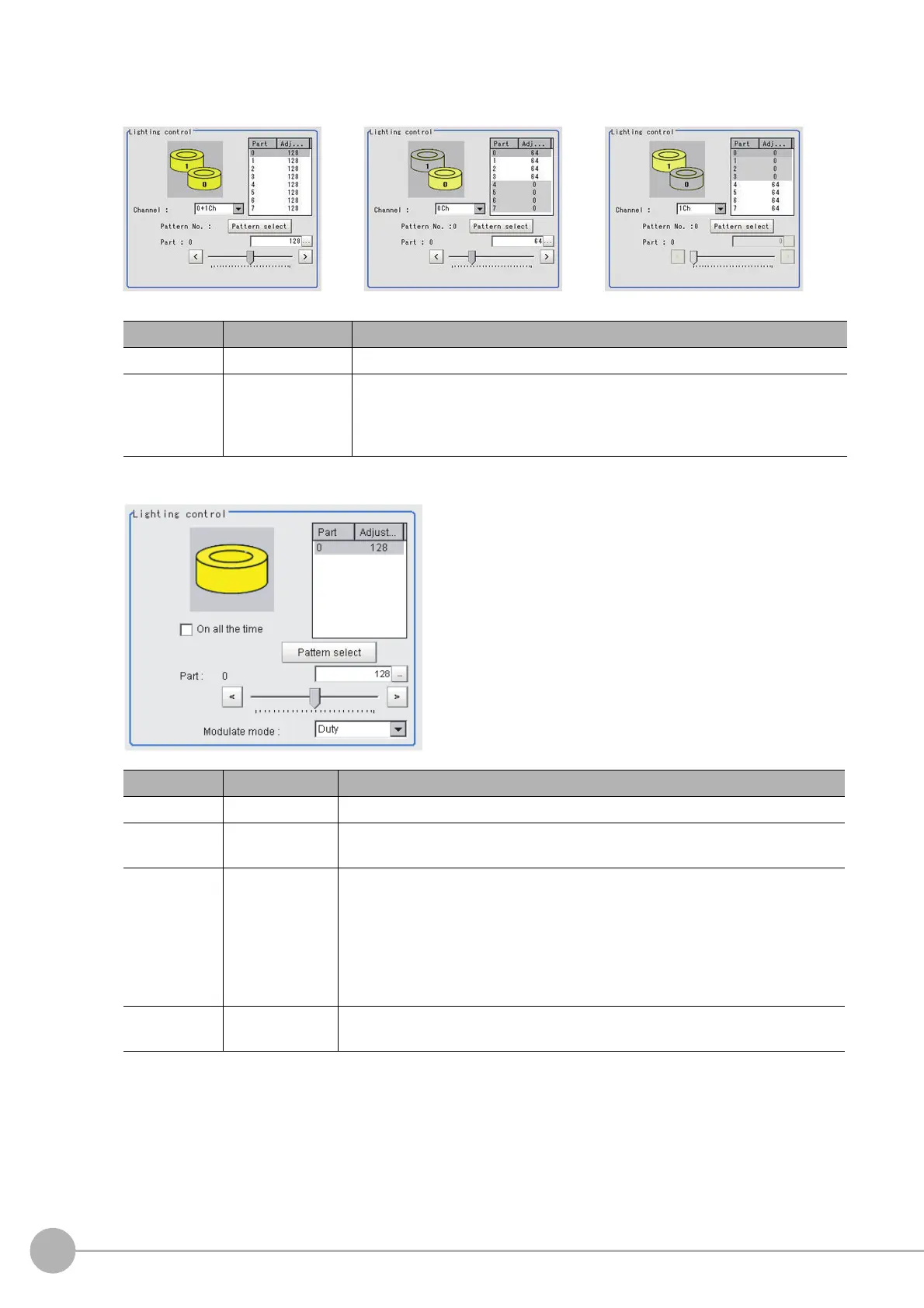

Electronic flash controller FZ-LTA200 is connected:
Camera-mount Lighting Controller FLV-TCC1 is
connected:
0 +1CH are used: 0CH is used: 1CH is used:
Item Set value Description
Pattern select Pattern 0 to 16 Can be selected from a preset lighting pattern.
Brightness at
ea
ch
part
0 to 255
[0]
When 1 channel is used, the light volume ca
n be a
djusted to one of 256 levels.
When 2 channels are used, the light volume can be adjusted to one of 128
levels. 0 indicates the lighting is OFF. The larger the number, the higher the
brightness.
Item Set value Description
Pattern select
--- Select from preset lighting patterns.
On all the time
• Checked
•[Unchecked]
Place a check here to keep the light turned ON
all of the time regardless of the
exposure time.
Modulate mode
•[Duty]
• Voltage /
Curre
nt
Select the lighting adjustment method.
•Duty
The brightness of the light is adjusted with
255 levels of the pulse width (PWM
frequency: 100 kHz).
• Voltage / Current
The brightness of the light is adjusted
with 255 voltage / current levels.
Select voltage lighting adjustment if you will use a hig
h-speed shutter speed.
Part
0 to 255
[128]
Set the brightness for the selected parts.
To Next Page
