Camera Image InputFH/FZ5 Processing Item Function Reference Manual
33
1
Input image

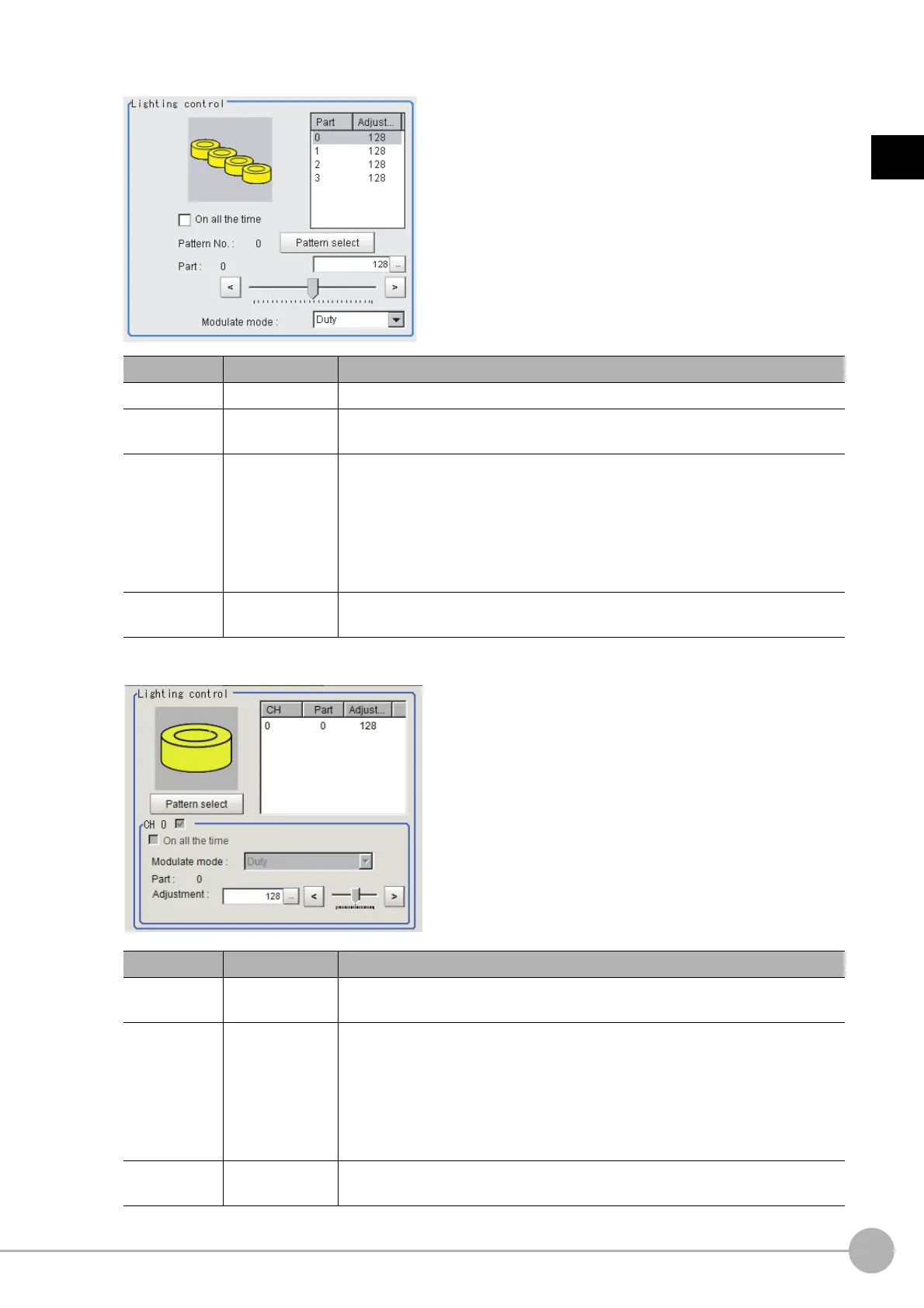

Camera-mount Lighting Controller FLV-TCC4 is connected:
Camera-mount Lighting Controller FLV-TCC1EP is connected:
Item Set value Description
Pattern select
--- Select from preset lighting patterns.
On all the time
• Checked
•[Unchecked]
Place a check here to keep the light turned ON all of the time regardless of the
exposure time.
Modulate mode
•[Duty]
• Voltage /
Curre
nt
Select the lighting adjustment method.
•Duty
The brightness of the light is adjusted with
255 levels of the pulse width (PWM
frequency: 100 kHz).
• Voltage / Current
The brightness of the light is adjusted
with 255 voltage / current levels.
Select voltage lighting adjustment if you will use a hig
h-speed shutter speed.
Part
0 to 255
[128]
Set the brightness for the selected parts.
Item Set value Description
On all the time
• Checked
•[Unchecked]
Place a check here to keep the light turned ON
all of the time regardless of the
exposure time.
Modulate mode
•[Duty]
• Voltage /
Curre
nt
Select the lighting adjustment method.
•Duty
The brightness of the light is adjusted with
255 levels of the pulse width (PWM
frequency: 100kHz).
• Voltage / Current
The brightness of the light is adjusted
with 255 voltage / current levels.
Select voltage / current adjustment if you will use a high-speed shutter speed.
Part
0 to 255
[128]
Set the brightness for the selected parts.
