Advanced Filter
578
FH/FZ5 Processing Item Function Reference Manual

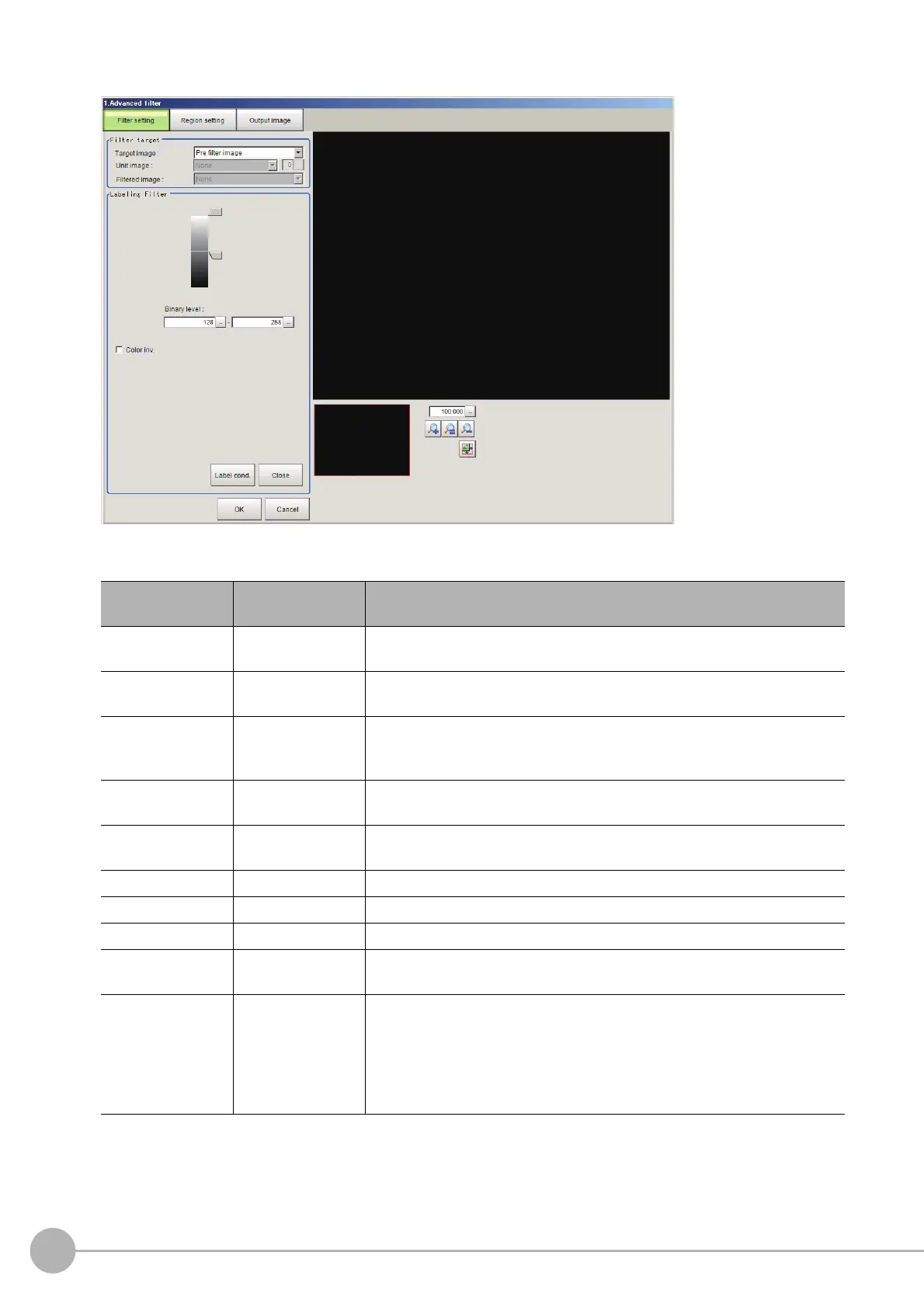

Binarization settings screen for monochrome images
Setting items in the [Color Ext.] (color ext
raction) settings screen for color images
Setting item
Setting value
[Factory default]
Description
More color ranges
•Checked
• [Unchecked]
To extract multiple colors, select the “More color ranges” checkbox.
Color extraction
range
Color 0 to Color 7
[C
o
lor 0]
This can be set when the “More color ranges” checkbox is selected.
Set the color ranges to be extracted.
Select
• [Checked]
• Unchecked
This can be set when the “More color ranges” checkbox is selected.
Select the “Select” checkbox to extract color using a color extraction range
se
lected in “Color extraction range”.
Auto
•Checked
• [Unchecked]
Select the “Auto” checkbox to set a color specified in an image as a color to
b
e measured.
Color inv.
•Checked
• [Unchecked]
To measure colors other than a specifie
d
color, select the “Color inv.”
checkbox.
H [0] to [359] Set the hue (difference in hue).
S [0] to [255] Set the saturation (difference in saturation).
V [0] to [255] Set the vividness (difference in
vividness).
Exclude this color
•Checked
• [Unchecked]
To exclude a selected color extraction range from the extracted colors, select
“Exclude this c
o
lor”.
Background color
• [Black]
•White
•Red
•Green
•Blue
Set the color used to cover background color parts other than the color to be
ext
racted.
When “Color selected image” is selected
in
“Display”, the background color
can be set for each selected color. When “All color image” is selected in
“Display”, background color parts are covered with the background color of
Color 0.
