Advanced Filter
580
FH/FZ5 Processing Item Function Reference Manual

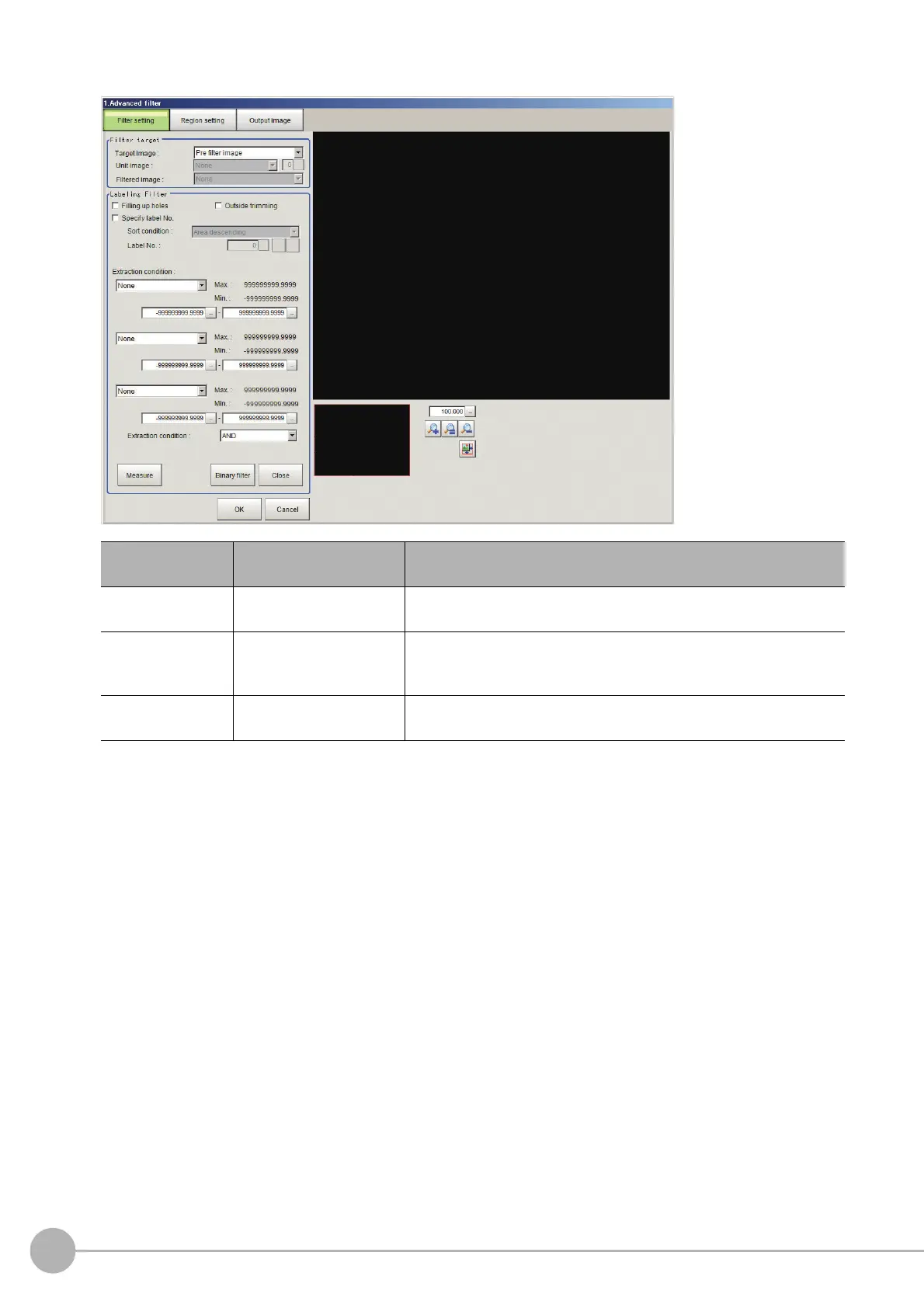

Label condition settings screen for monochrome images
Setting item
Setting value
[Factory default]
Description
Filling up holes
•Checked
• [Unchecked]
To fill the blank “donut hole” surrounded b
y the extracted color with the
extracted color, select the “Filling up holes” checkbox.
Outside trimming
•Checked
• [Unchecked]
If there is a part you do not want to measure in the place where the
color is extra
cted inside the measurement region, select the “Outside
trimming” checkbox.
Specify label No.
•Checked
• [Unchecked]
To use only a specified label as the extraction target, select the
“S
pecify label No.” checkbox.
