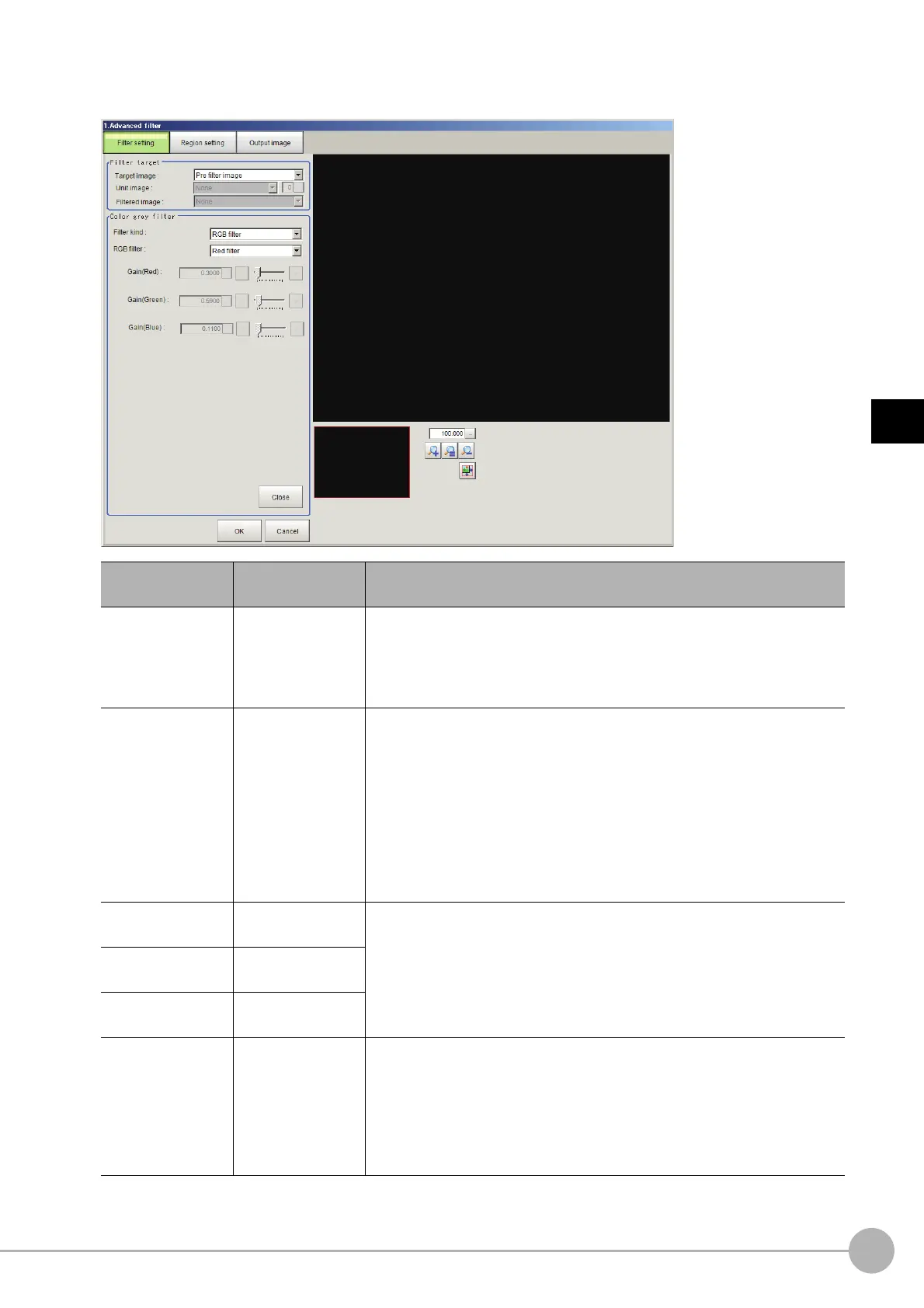

Advanced FilterFH/FZ5 Processing Item Function Reference Manual
589
3
Compensate image
Changing the Color Gray Filter Settings (Color Images Only)
The same filter settings as in the “Color Gray Filter” processing item can be changed.
Setting item
Setting value
[Factory default]
Description
Filter type
[RGB filter]
HSV filter
Set the filter type.
RGB filter
Set the color extraction range using R, G, B.
HSV filter
Set the color extraction range using H, S, V.
RGB filter
[Red filter]
Green filter
Blue filter
Magenta filter
Yellow filter
Brightness filter
(R + G + B)
Brightness filter
(R + 2G +
B)
•C
ustom filter
This can be set when “RGB filter” is selected for “Filter type”.
Set the type of filter used
as the Col
or Gray filter.
Gain (Red)
0.0001 to 9.9999
[0.3]
This can be set when “Custom filter” is selected for “RGB filter”.
Set the gain of R, G, B. To strength
en
an RGB component, set a larger value
for the gain of that component.
Gain (Green)
0.0001 to 9.9999
[0.59]
Gain (Blue)
0.0001 to 9.9999
[0.11]
HSV filter
•Fast
[Precision]
This can be set when “HSV filter” is
selected for
“Filter type”.
Set the type of filter used as the Col
or Gray filter.
•Fast
Set the color extraction range using standard hue only.
Precision
Set the color extraction range in detail using standard hue, hue range, and
color chroma.
