Advanced Filter
596
FH/FZ5 Processing Item Function Reference Manual
3 Click [OK].
• [OK]: Changes the settings and returns to the previous menu.
• [Cancel]: Changes are discarded. Returns to the previous menu.
4 Change the display settings in the Image Display area if necessary and check the settings.

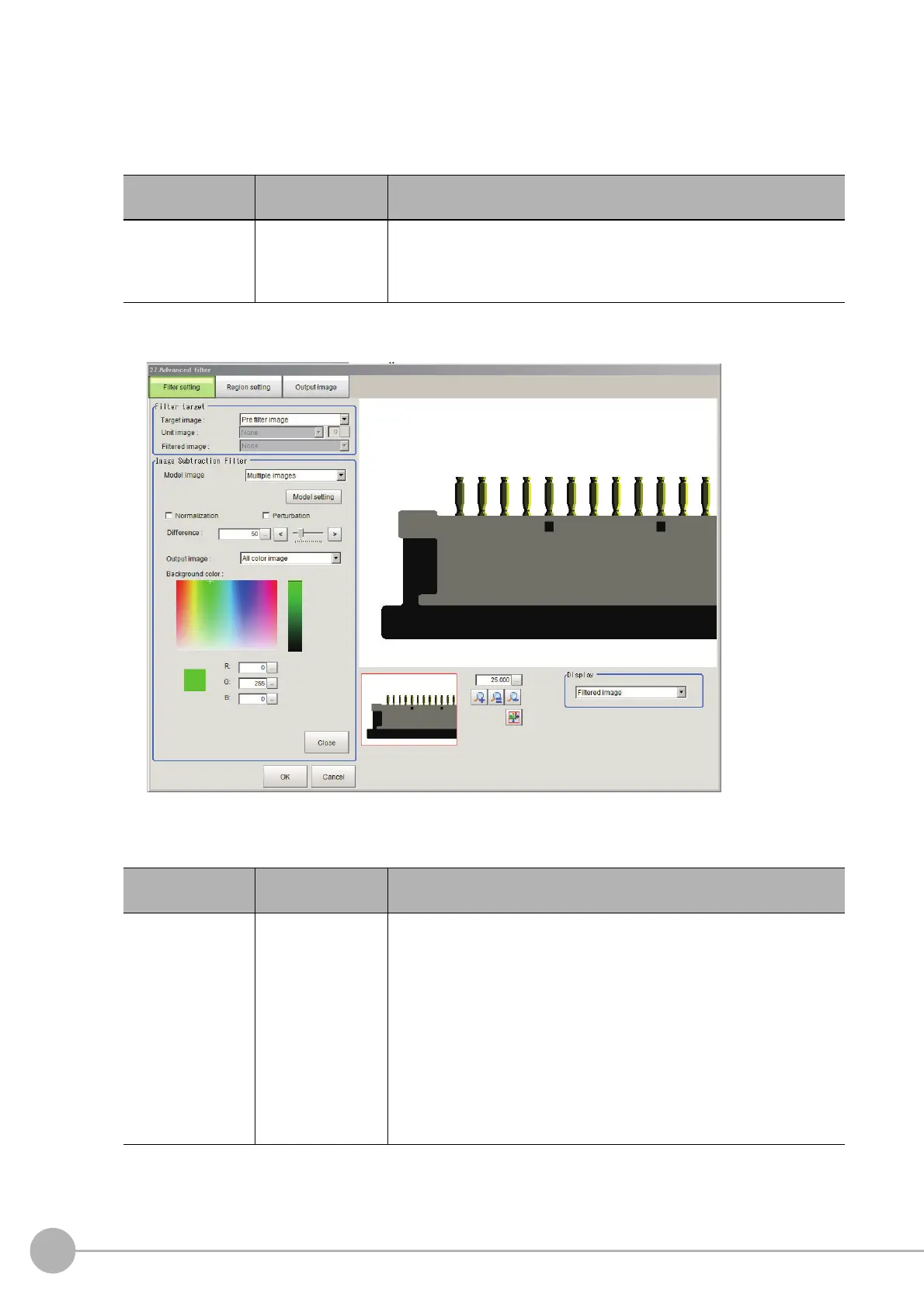

● Image subtraction filter setting window for multiple images
1 Select [Model image] in the Image Subtraction area.
Different screens are displayed according to the settings for the image subtraction model image.
Setting item
Setting value
[Factory default]
Description
Display setting
• [Filtered image]
• Model image
• Difference image
Set the image to be displayed in the Image Display area.
Filtered image: An image to be filtered is displayed.
Model image: A registered model image is displayed.
Difference image: A difference image is displayed.
Setting item
Setting value
[Factory default]
Description
Model image
• [Single image]
• Multiple images
Select to generate a model image for image subtraction using a single
or multiple images.
• Single image
Model image is generated using a single image. Select this when you
w
ant to subtract the difference of a target image from a single model
image.
• Multiple images
Model image is generated using multiple images. Select this when
the
r
e is variation in the measured image that occurs each time an
image is captured. A model is created from multiple image captures
and this minimizes variation in the subtracted difference image from the
model.
