Advanced FilterFH/FZ5 Processing Item Function Reference Manual
597
3
Compensate image

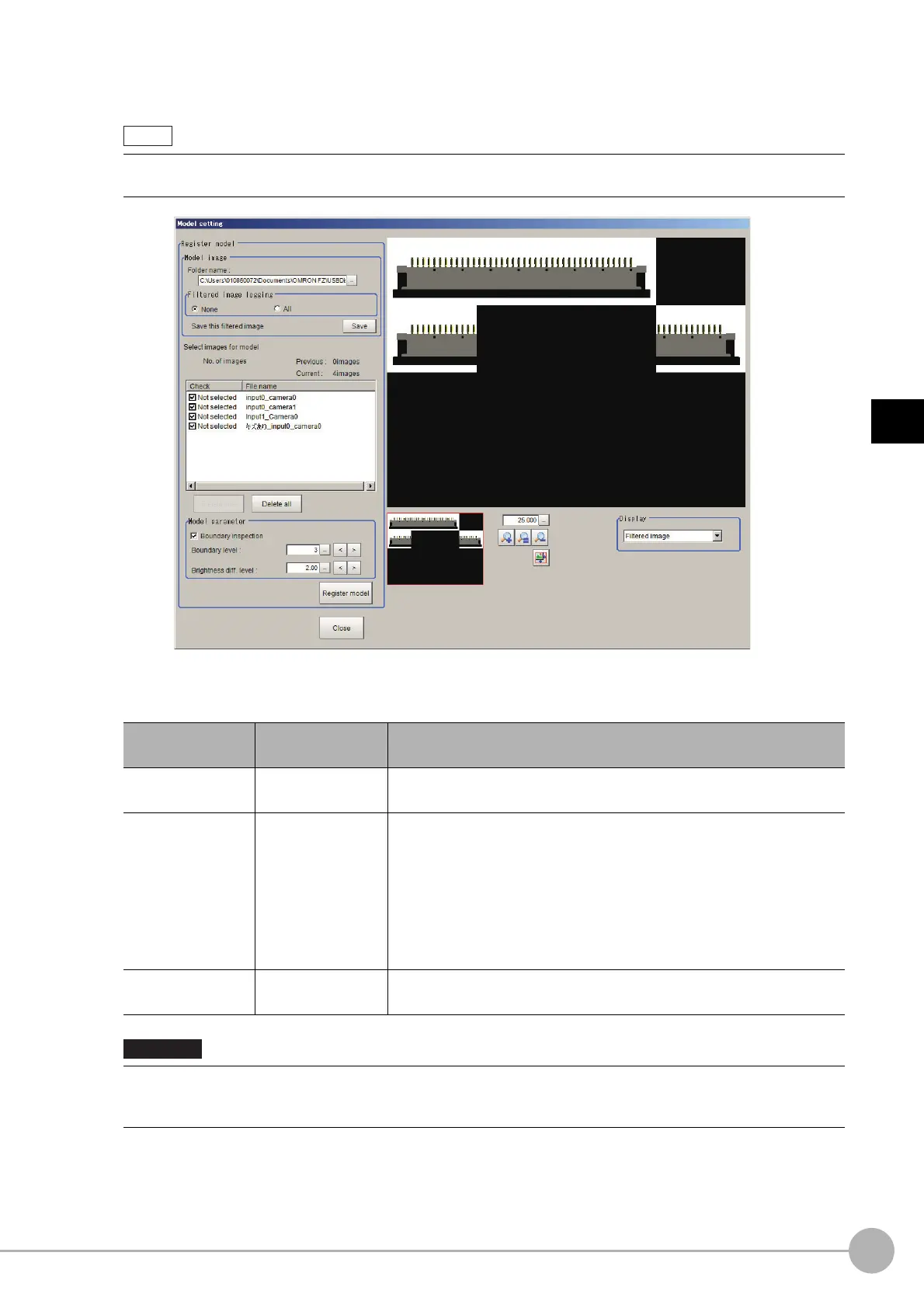

2 To register or correct a model, click [Model setting].
The Model setting window is displayed.
3 Specify the destination to save the model image and set whether or not to use a measured
image as the model image.
When displaying the Model setting window, for the image files in the folder specified in [Folder name] is checked.
[Image format mismatch] is displayed if the size or color of th
e image file and the input image is different.
Setting item
Setting value
[Factory default]
Description
Folder name ---
Specify the folder to store the generated
model image or the folder where
the model image is stored.
[Filtered image
lo
ggin
g]
• [None]
•All
Set whether or not to save measured images as subjects of model
registration.
• None
Select this to use the current image as the model image without saving
the
image to be filtered. Then click [Save] to add the current image to
the model image list.
•All
Select this to save the image to be filtered as a model image.
Save this filtered
imag
e
--- Press the [Save] button to save the current image
as the Model image.
When saving image is selected in [Filtered image logging], images th
at can be used as a model are saved in the
folder specified in [Folder name] during measurement. Register the model from among the images included in the
model image list again in this setting after measurement.
Important
