Camera Image Input FH
68
FH/FZ5 Processing Item Function Reference Manual

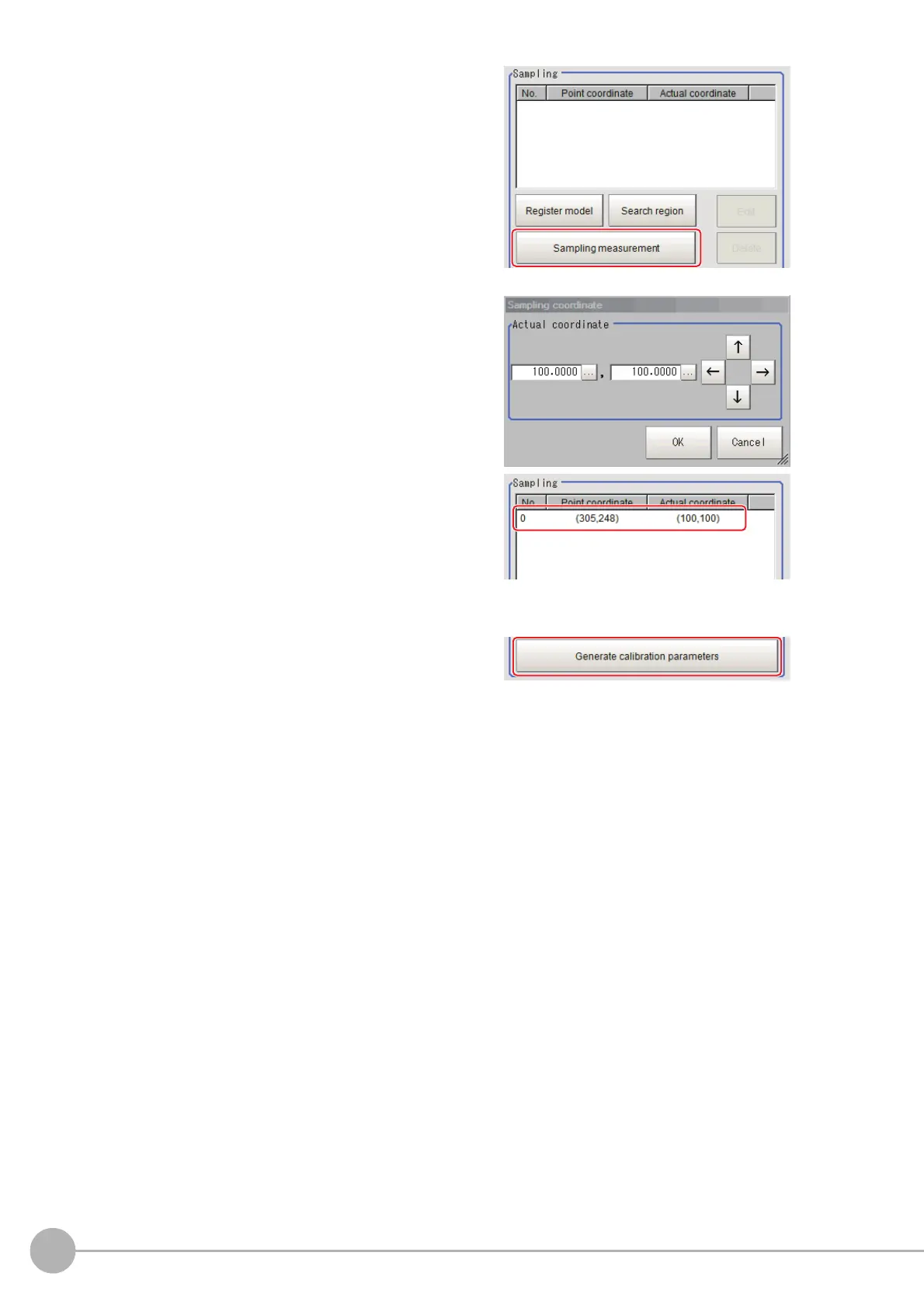

6 Click [Sampling measurement].
Measurement is performed.
The search result (cross-shaped cu
rsor) is
displayed in the Image Display area, and the
Sampling Coordinate window is displayed.
7 In the Sampling Coordinate window, set
the X and Y values.
8 Click [OK].
Point coordinates and actual coordinates are
registered in the "Sampling" area.
9 Move the object to be measured and repeat the Steps 3 to 8.
10 Click [Generate calibration parameters].
The calibration parameters will be generated.
To Next Page
