Stage DataFH/FZ5 Processing Item Function Reference Manual
727
4
Support Inspection and Measurement
V-axis direction
• [X-axis positive]
• X-axis negative
• Y-axis positive
• Y-axis negative
Set the axis direction of the V axis to either forward or backward with
respect to
the X axis or Y axis direction in the XY coordinate system that is
parallel or perpendicular to each UVWR axis.
V-axis limit
-99999.9999 to
99999.9999
[-99999.9999] to
[9999
9.9999]
Set the upper and lower limit values for the
V axi
s movement range. Units of
the coordinate system set in calibration is used.
W-axis direction
• [X-axis positive]
• X-axis negative
• Y-axis positive
• Y-axis negative
Set the axis direction of the W axis to either forward or backward with
respect to
the
X axis or Y axis direction in the XY coordinate system that is
parallel or perpendicular to each UVWR axis.
W-axis limit
-99999.9999 to
99999.9999
[-99999.9999] to
[9999
9.9999
]
Set the upper and lower limit values for the W axis movement range. Units
of
the coordinate system
set in calibration is used.
R-axis direction
• [X-axis positive]
• X-axis negative
• Y-axis positive
• Y-axis negative
Set the axis direction of the R axis to either forward or backward with
respect to
the
X axis or Y axis direction in the XY coordinate system that is
parallel or perpendicular to each UVWR axis.
Setting item
Setting value
[Factory default]
Description

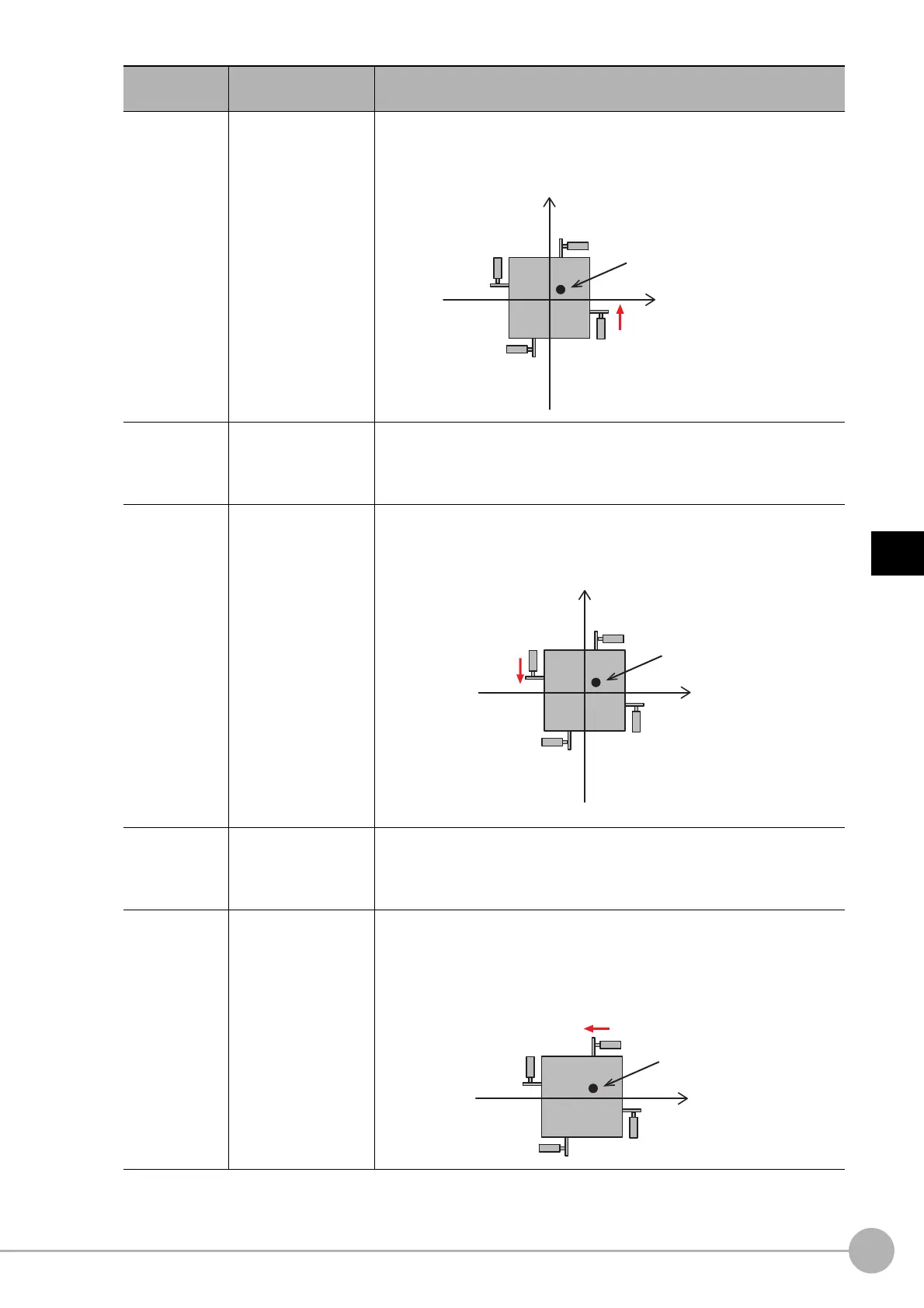

X axis
V axis
Y axis
Rotation center
In this case, the Y axis is in
the positive direction.
XY coordinate system that
becomes parallel or vertical
to UVWR axes
X axis
W axis
Y axis
Rotation center
In this case, the Y axis is in
the negative direction.
XY coordinate system that
becomes parallel or vertical
to UVWR axes
X axis
R axis
Y axis
Rotation center
In this case, the X axis is in
the negative direction.
XY coordinate system that
becomes parallel or vertical
to UVWR axes
