Waveform generator (Option R&S RTO6-B6)

R&S

1037User Manual 1801.6687.02 ─ 05

Remote command:

WGENerator<m>:

MODulation:

NOISe on page 2460

Relative level

Sets the level of the noise in percentage of the set "Amplitude" output of the signal.

Remote command:

WGENerator<m>:MODulation:NLPCent on page 2460

Absolute level

Displays the level of the noise in volts.

Remote command:

WGENerator<m>:MODulation:NLABsolute? on page 2460

Absolute level

For "Function type">"DC" only.

Sets the level for the DC signal.

Remote command:

WGENerator<m>:MODulation:NDCLevel on page 2459

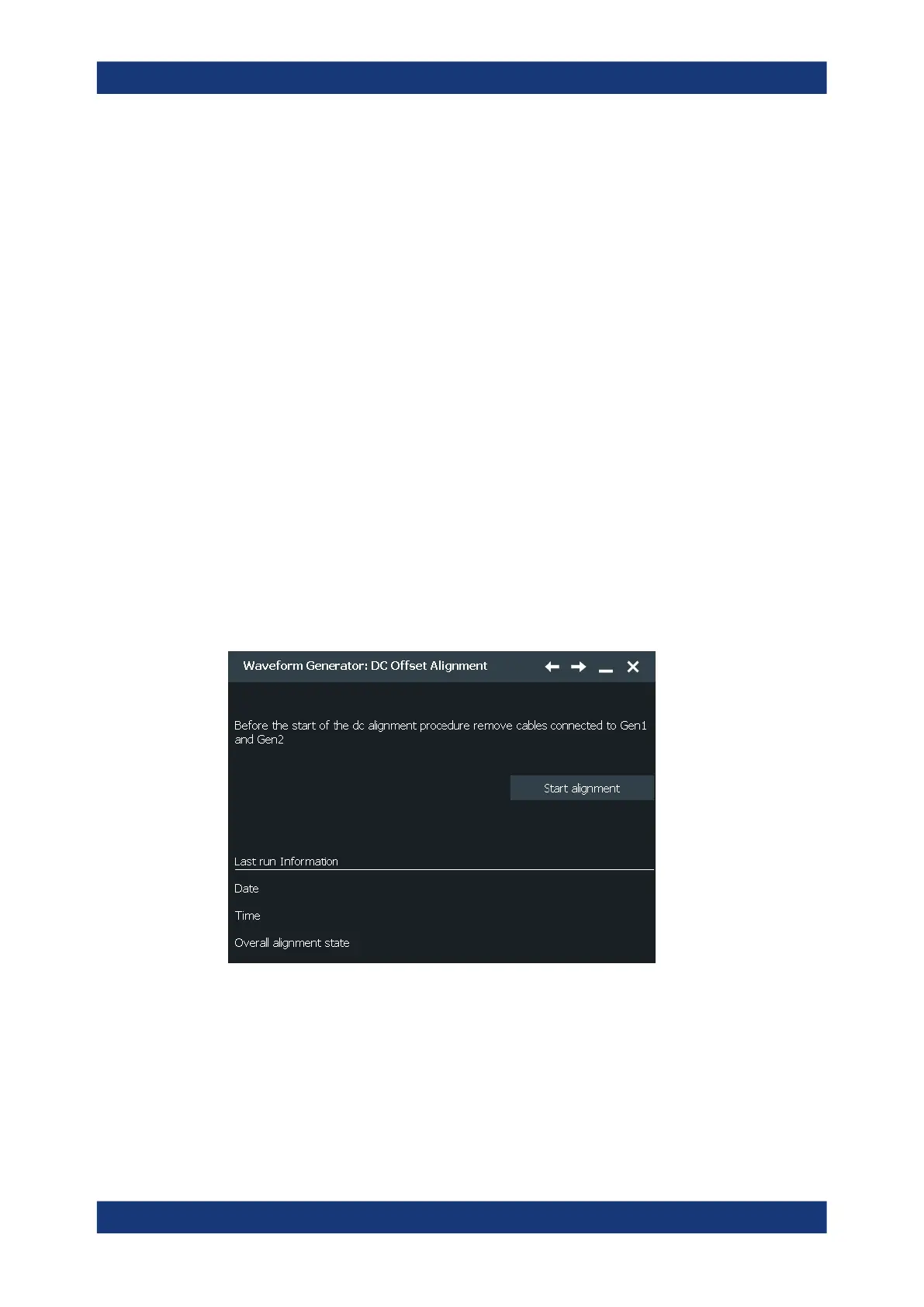

15.3.3 DC offset alignment

Access: [Gen] > "Output" > "Align DC Offset"

Start Alignement

Starts the alignment of the DC of

fset.

Remote command:

GENerator:

ALIGnment:DC[:STARt] on page 2461

Date

Displays the date of the last performed DC offset alignment.
