Waveform generator (Option R&S RTO6-B6)

R&S

1029User Manual 1801.6687.02 ─ 05

Content and format of the R&S arbitrary generator *.bin files

The file stream should contain the following information in the given order:

●

Sample rate

[double format]

●

Number of samples

[unsigned integer format]

●

Samples

[double format] * number of samples

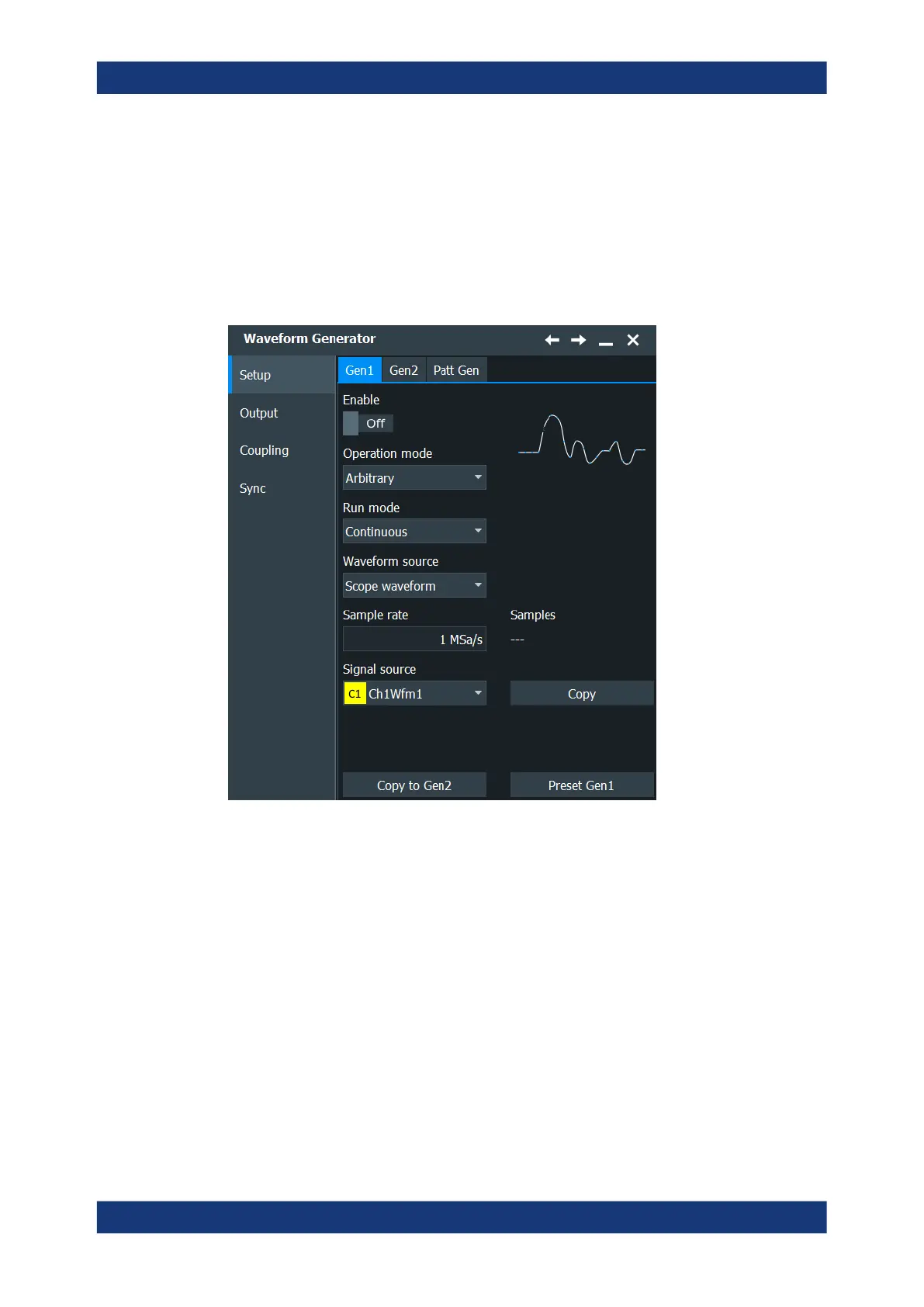

15.1.5.1 General settings

Waveform source

Selects the arbitrary waveform source. Y

ou can load an existing file or load the current

oscilloscope waveform.

Remote command:

WGENerator<m>:ARBGen[:SOURce] on page 2455

Run mode

Selects the duration for which the signal of the arbitrary generator will be output after

the trigger event. You can choose between a "Continuous" and "Single period" dura-

tion.

Remote command:

WGENerator<m>:ARBGen:RUNMode on page 2454

Setup of the waveform generator
