Xerox DocuColor 12/DCCS50 User Manual

1/05
8a-15
DocuColor 12/DCCS50
REP 2.7.5
High Capacity Feeder
Reissue
REP 2.7.5 HCF Assembly
Parts List on PL 15.1
Removal
WARNING
To avoid electrical shock, switch-OFF the Main Power Switch and disconnect the Power
Cord.

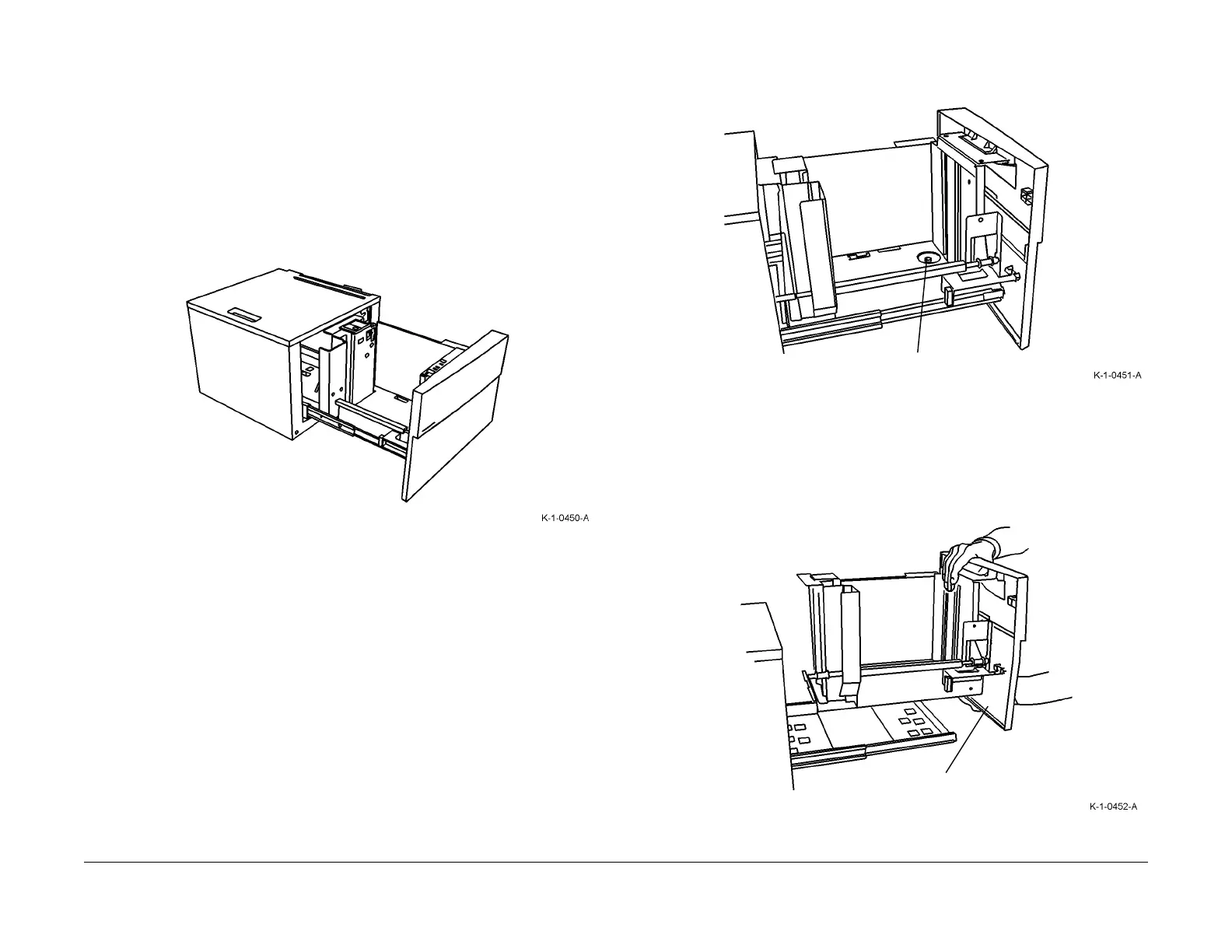

1. Pull out the HCF Assembly (Figu
re 1).
Figure 1 Pull out the HCF Drawer
2. Prepare to remove the HCF Assembly (Figu
re 2).
Figure 2 Preparing to remove the HCF Assembly
CAUTION
Support the HCF Drawer on a ream of paper so as not to put undue stress on the Drawer
Cover.
3.
Remove the HCF Assembly (Figure 3
).
Figure 3 Removing the HCF Assembly
Unscrew the knurled knob
Remove the Assembly
