DocuColor 12/DCCS50
PL 2.11
Reissue
Parts Lists

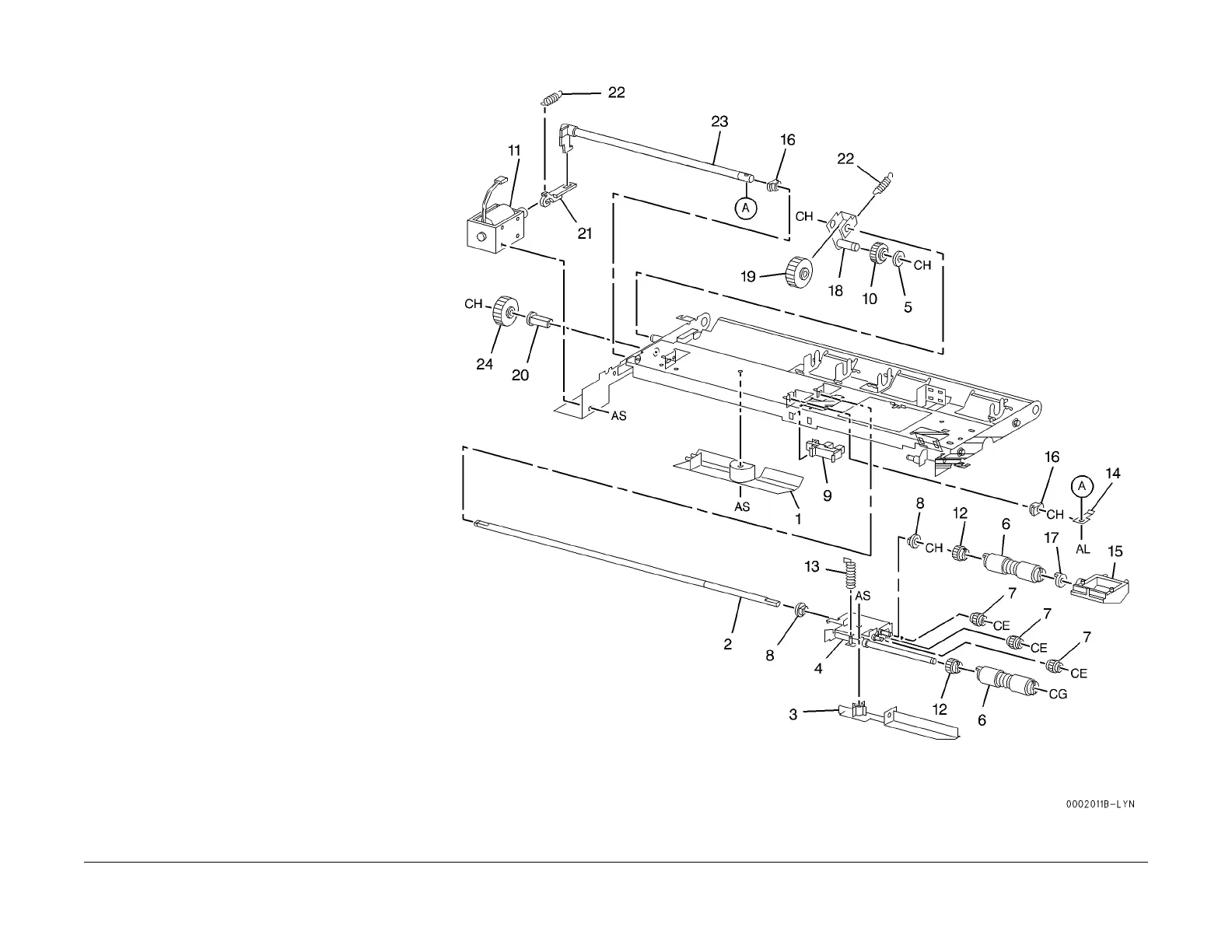

PL 2.11 Tray 5 Upper (Part 2 of 2)
Item Part Description
1 – Chute (P/O PL 2.9 Item 14)
2 – Shaft (P/O PL 2.9 Item 14)
3 032E10010 Paper Guide
4 – Support (P/O PL 2.9 Item 14)
5 – Collar (P/O PL 2.9 Item 14)
6 059K08850 Tray 5 Nudger Roll, Tray 5 Feed
Roll
(REP
2.11.1 REP 2.11.2 )
7 007E31180 Gear
8 – Bearing (P/O PL 2.9 Item 14)
9 130E82190 Tray 5 Stack Up Sensor
10 – Gear (P/O PL 2.9 Item 14)
11 121K17561 Tray 5 Nudger Solenoid
12 007E31160 Gear
13 009E76430 Spring
14 – Lever Plate (P/O PL 2.9 Item 14)
15 – Chute (Upper Front) (P/O PL 2.9
I
tem 14)
16 – B
earing (P/O PL 2.9 Item 14)
17 – Collar (P/O PL 2.9 Item 14)
18 – Link (P/O PL 2.9 Item 14)
19 – Gear (P/O PL 2.9 Item 14)
20 – Bearing (P/O PL 2.9 Item 14)
21 – Link (P/O PL 2.9 Item 14)
22 809E09410 Spring
23 – Lever (P/O PL 2.9 Item 14)
24 – Gear (P/O PL 2.9 Item 14)
