1/05
8d-132
DocuColor 12/DCCS50
ADJ 15.3.1, ADJ 15.3.2
Reissue
Finisher/Sorter

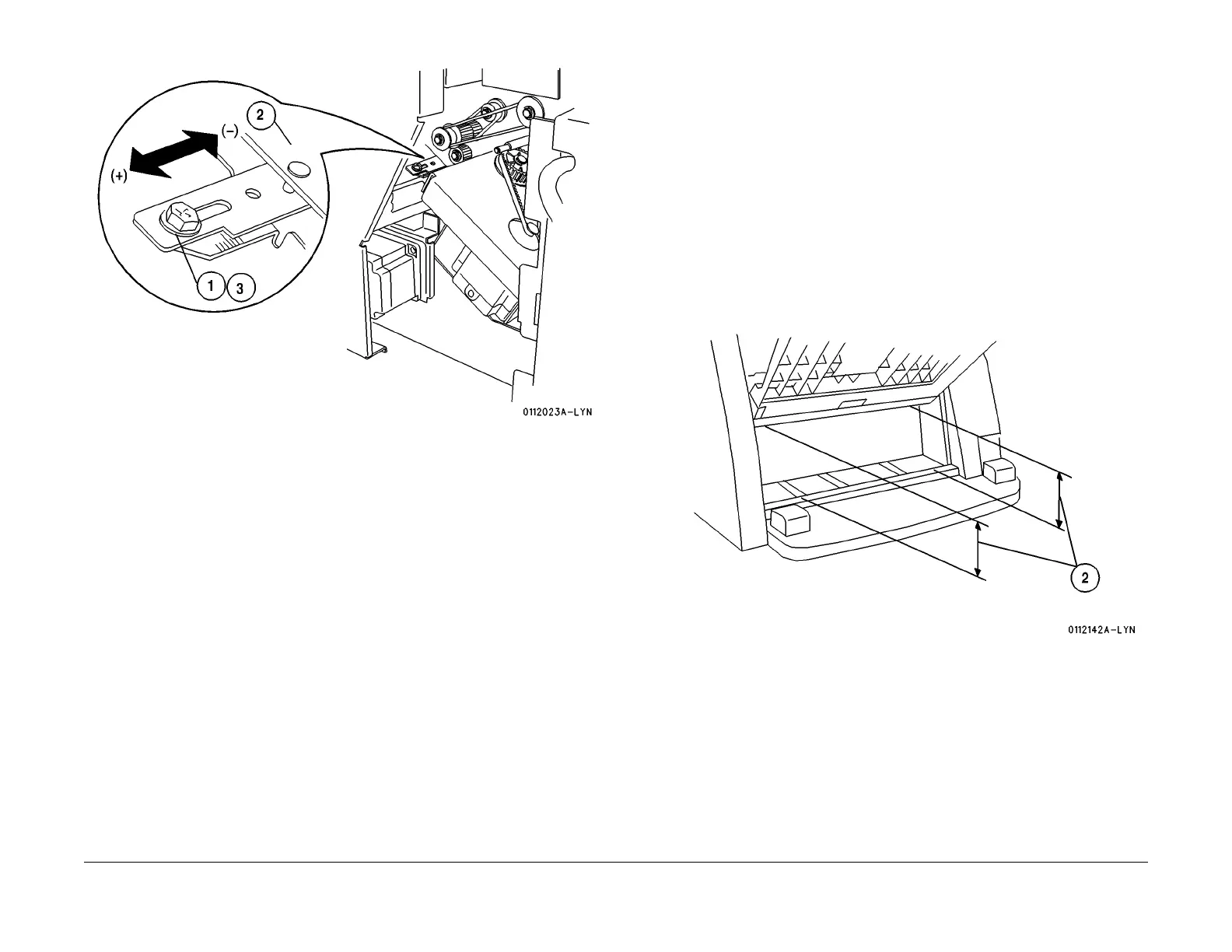

Figure 3 Adjust the Staple position (Dimension B)
4. Perform the check again.
ADJ 15.3.2 Stacker Tray Level
Purpose
The purpose of this adjustment is to ensure the Stacker Tray Carriage is level with the frame of
the Stacker Tray Assembly.
Check
1. Lower the Stacker Tray to the bottom of the Stacker Tray Assembly by supporting the
Stacker Tray with one hand then pull to separate the Dog Clutch Gear from the Dog
Clutch Pulley.
2. Check that the Stacker Tray Carriage is touching the Stacker Tray Assembly Tie Plate on
t
he
front and rear of the Assembly (Figure 1).
3. If both ends of the Stacker Tray Carriage are touching the Tie Plate, the check is good.
Figure 1 Checking the Stacker Tray Carriage
Adjustment
NOTE: If entering this procedure from REP 15.2.9 Stacker Tray Drive Belts or REP 15.2.10
Stacker Tray, proceed to Step 4.
1. Switch off the printer power and disconnect the AC Power Cord.
2. Remove the Stacker Tray Assembly (REP 15.2.
2).
3. Support the Stacker Tray with one hand and pull the Dog Clutch Gear away from the Dog
Clutch P
ulley and lower the Tray to the bottom of the Stacker Tray Assembly (PL 18.22).
4. Remove the screws (2) from the front Stacker Tray Drive Belt Clamp and remove the
Clamp (Figure 2).
