1/05
5-293
DocuColor 12/DCCS50
PL 8.7
Parts Lists
Reissue

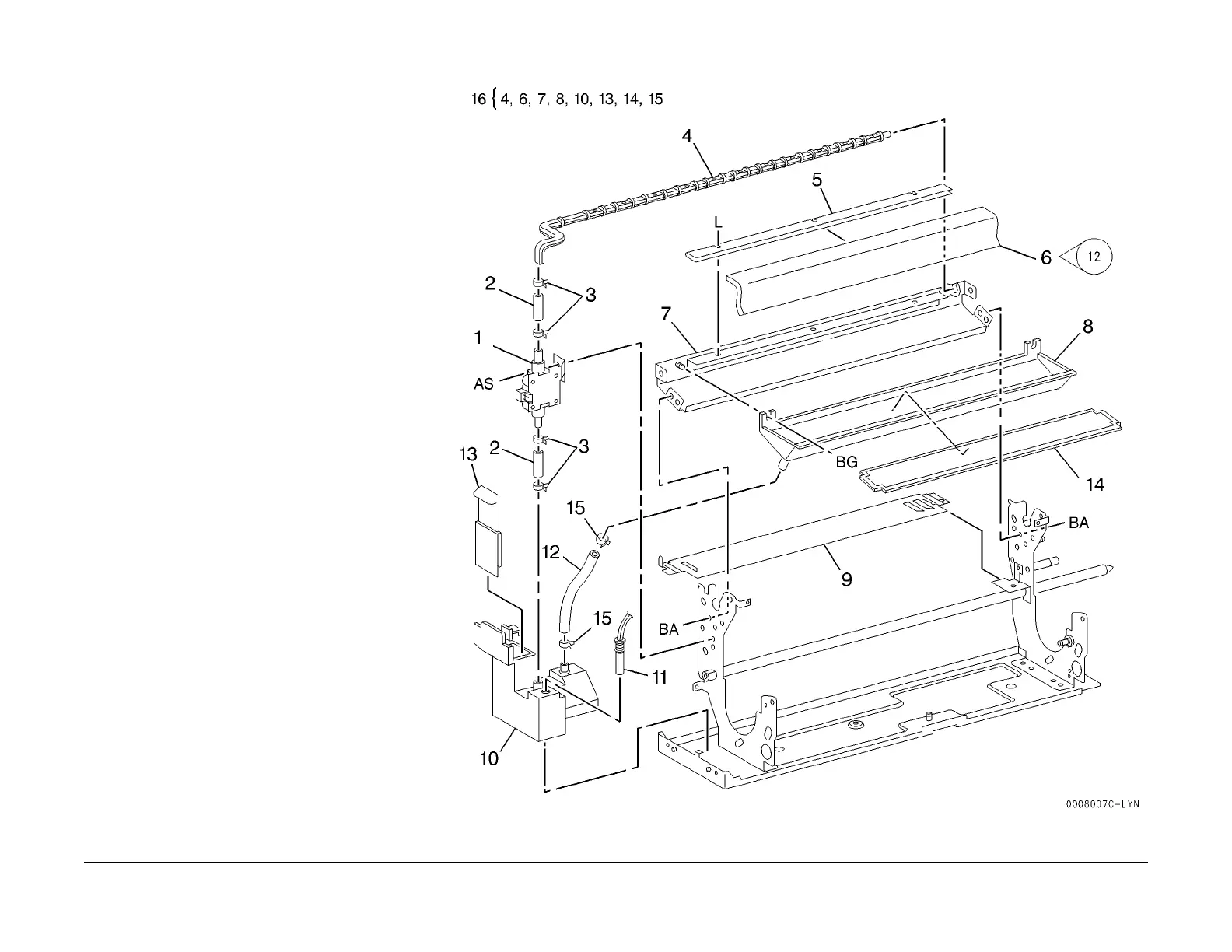

PL 8.7 Oil Pump/Tank
Item Part Description
1 127K21410 Oil Pump (REP 8.7.1 )
2 052E92750 Tube
3 019E39570 Clamp
4 052E93181 Oil Pipe
5 809E06530 Spring Plate
6 039K90592 Oil Wick (W/TAG P12) (REP 8.7.2 )
7 068K21850 Bracket
8 050E17450 Oil Pan
9 054K11220 Inlet Chute
10 093E91961 Oil Tank
11 130K57940 Oil Empty Sensor
12 052E93920 Tube
– 052E96630 Tube (Alternate)
13 809E19010 Support Plate Spring
14 053E92650 Oil Filter
15 019E49780 Hose Clamp
16 604K01911 Oil System Upgrade Kit (W/TAG
P37)
To Next Page
