Mailbox/Sorter Electrical Connections, Offset Catch
Reissue
Principles of Operation

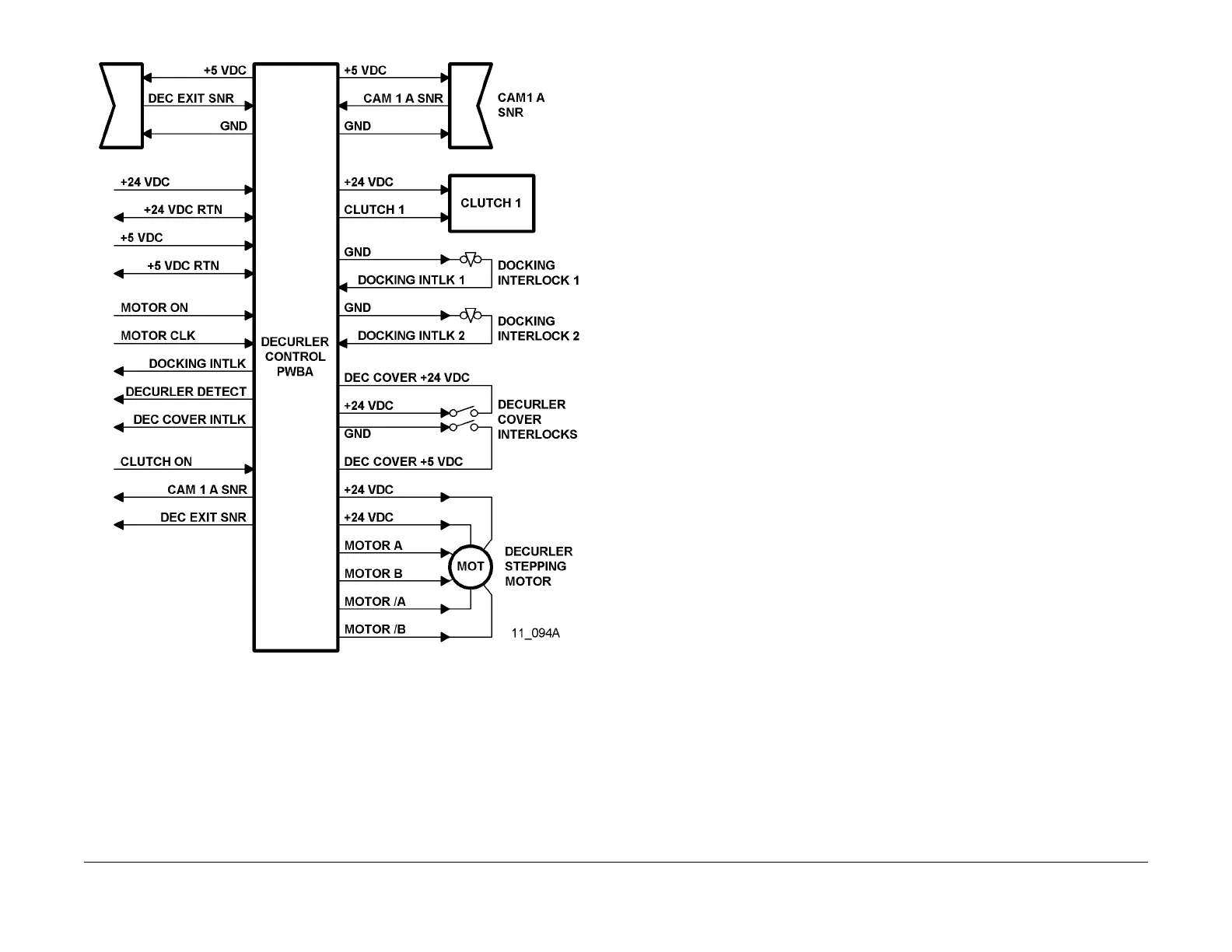

Figure 3 Decurler Simplified Block Diagram
Offset Catch Tray Electrical Connections
The Offset Catch Tray (OCT) does not have a control processor. Discrete lines from one of two
assemblies provide direct control of the OCT. If a Mailbox/Sorter is not installed, the OCT is
connected to the IOT Drive PWBA, as shown in Figure 1. If the OCT is installed with a Mailbox/
Sorter, the OCT is connected to the Mailbox/Sorter Control PWBA as shown in Figure 1. These
PWBAs become aware of the OCT by detecting the level on the OCT Det line. The OCT Mot
Fwd and OCT Mot Rev control lines directly control the OCT motor and cause it to move the
tray toward the front or back of the machine. The OCT Full status line indicates that the OCT
paper capacity has been reached. The OCT Home Sensor indicates when the OCT is in the
front-most (Home) position, while the OCT Position Sensor indicates that the tray is in the rear-
most position.
