DocuColor 12/DCCS50
PL 1.5
Parts Lists
Reissue

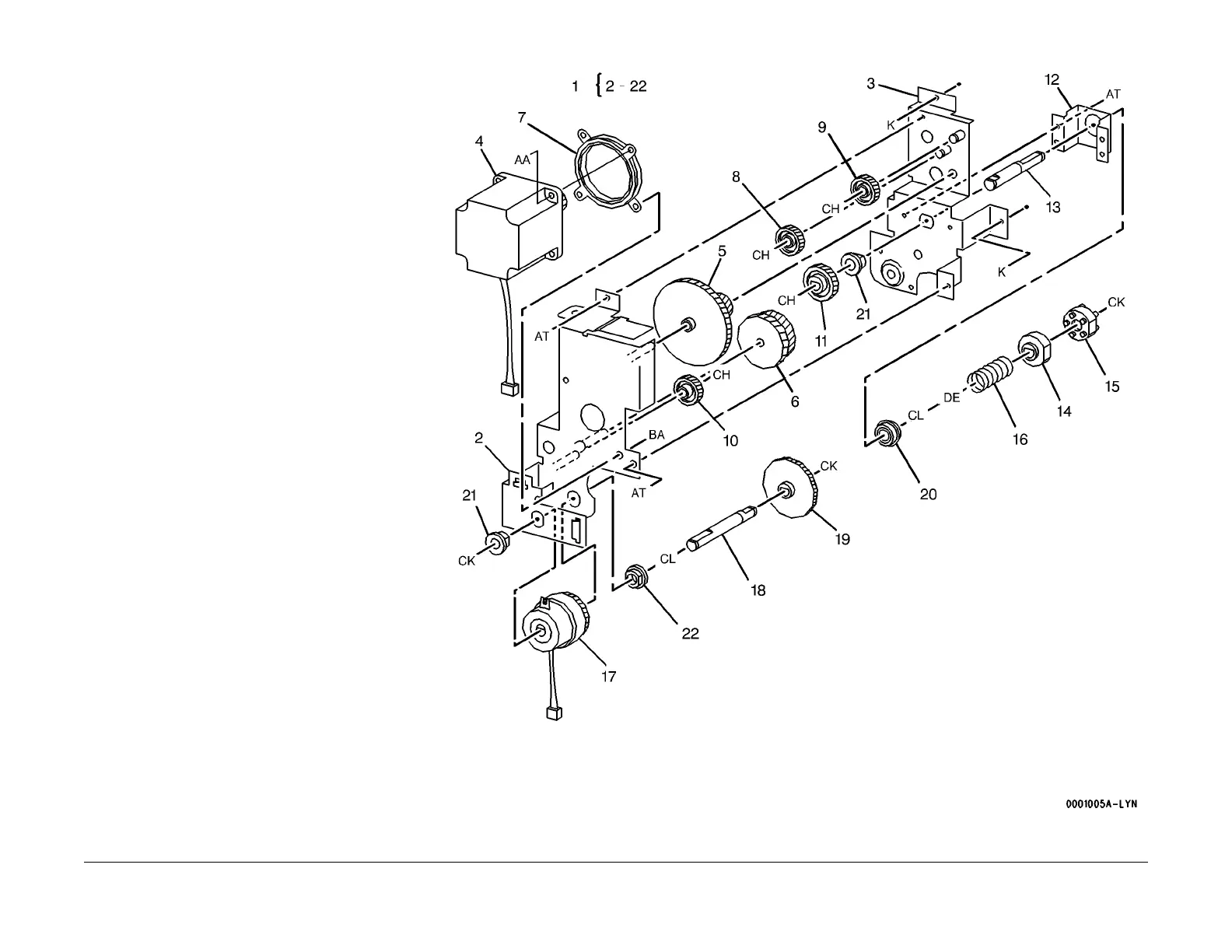

PL 1.5 Main Motor 2, Tray 5/Regi./Tray
1 Take Away Drive
Item Part Description
1 007K84313 Tray 5/Regi./Tray 1 Take Away
Drive A
ssembly (REP 1.5.1 )
2 – Bracket (P/O PL 1.5 Item 1)
3 – Bracket (P/O PL 1.5 Item 1)
4 127K21311 Main Motor 2
5 007E46890 Gear
6 007E46880 Gear
7 – Dumper (P/O PL 1.5 Item 1)
8 407W08223 Gear
9 407W08273 Gear
10 407W08222 Gear
11 407W08328 Gear (28)
12 – Bracket (P/O PL 1.5 Item 1)
13 – Shaft (P/O PL 1.5 Item 1)
14 – Coupling (Slide) (P/O PL 1.5 Item
1)
15 – Coupling (Transmitter) (P/O PL 1.5
It
em
1)
16 009P62975 Spring
17 121K30050 T/A Feed Clutch
18 – Shaft (P/O PL 1.5 Item 1)
19 007E52250 Gear (Tray 1 T/A Roll)
20 – Bearing (P/O PL 1.5 Item 1)
21 – Bearing (P/O PL 1.5 Item 1)
22 – Bearing (P/O PL 1.5 Item 1)
