DocuColor 12/DCCS50
REP 3.4.2
Reissue
Repairs and Adjustments
REP 3.4.2 Lamp Wire Harness
Parts List on PL 3.4
Removal
WARNING
Turn power off and disconnect the power plug.
1. Remove the Platen Cover or DADF (REP 12.1.
1).
2. Remove the Platen Glass (REP 3
.1.1).
3. Platen machines: Remove the Blind Cover (PL 11
.1 Item 7).
4. Remove the Top Cover (PL
11.1 Item 1).
5. Disconnect the Lamp Wire Harness connector and release the Clamp Hook (Figure 1).
1.
Disconnect the connector.
2. Release the clamp.
3. Remove the clamp.
4. Release the hook.

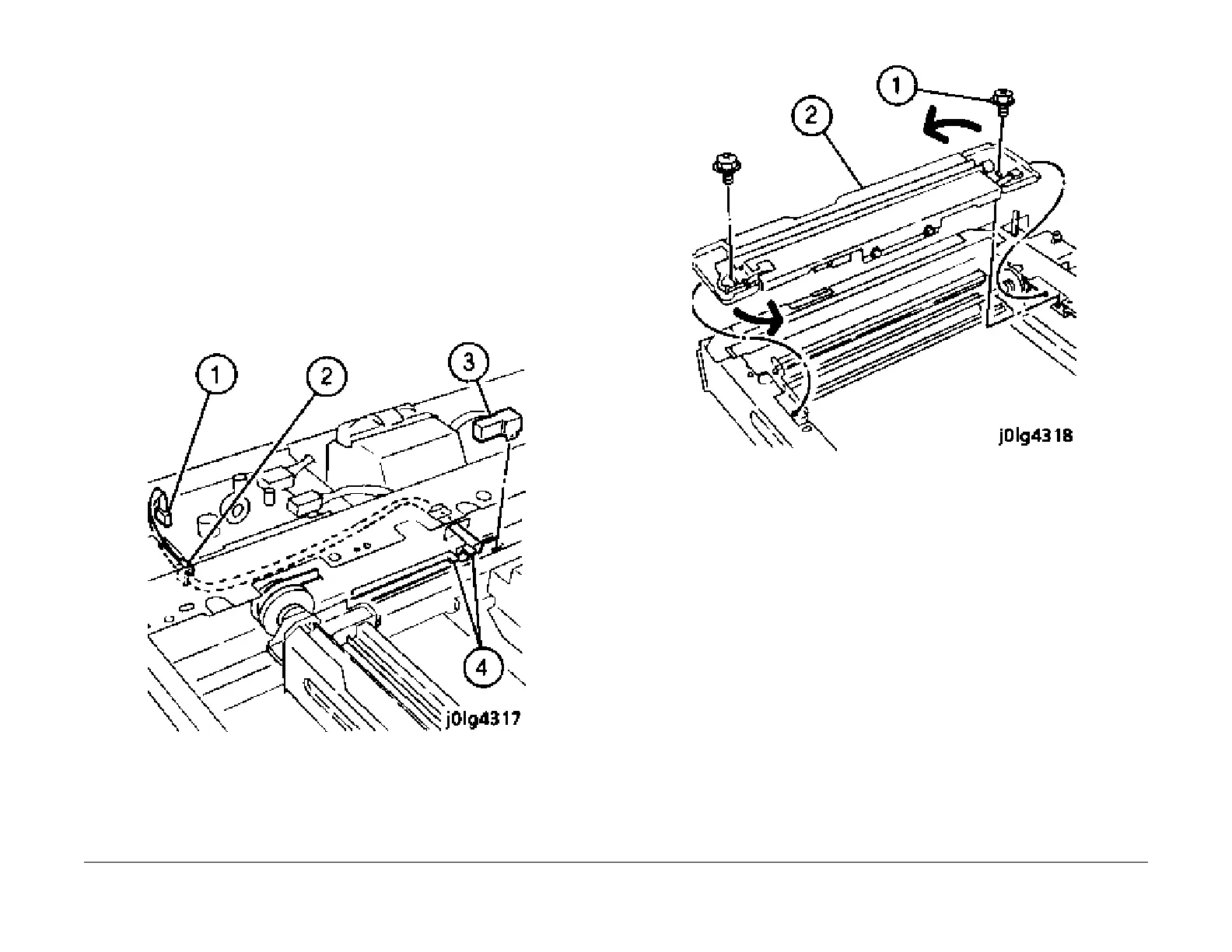

Figure 1 Disconnecting the Lamp Wire Harness
6. Remove the Full Rate Carriage (Figur
e 2).
1. Remove the screws (2).
2. Remove the Full Rate Carriage.
Figure 2 Removing the Full Rate Carriage
7. Remove the Lamp Wire Harness from the Full Rate Carriage (Figure 3).
1.
Flip the Full Rate Carriage.
2. Remove the screw.
3. Remove the guide.
4. Disconnect the connector.
5. Remove the Lamp Wire Harness.
