Xerox DocuColor 12/DCCS50 User Manual

1/05
5-245
DocuColor 12/DCCS50
PL 2.12
Parts Lists
Reissue

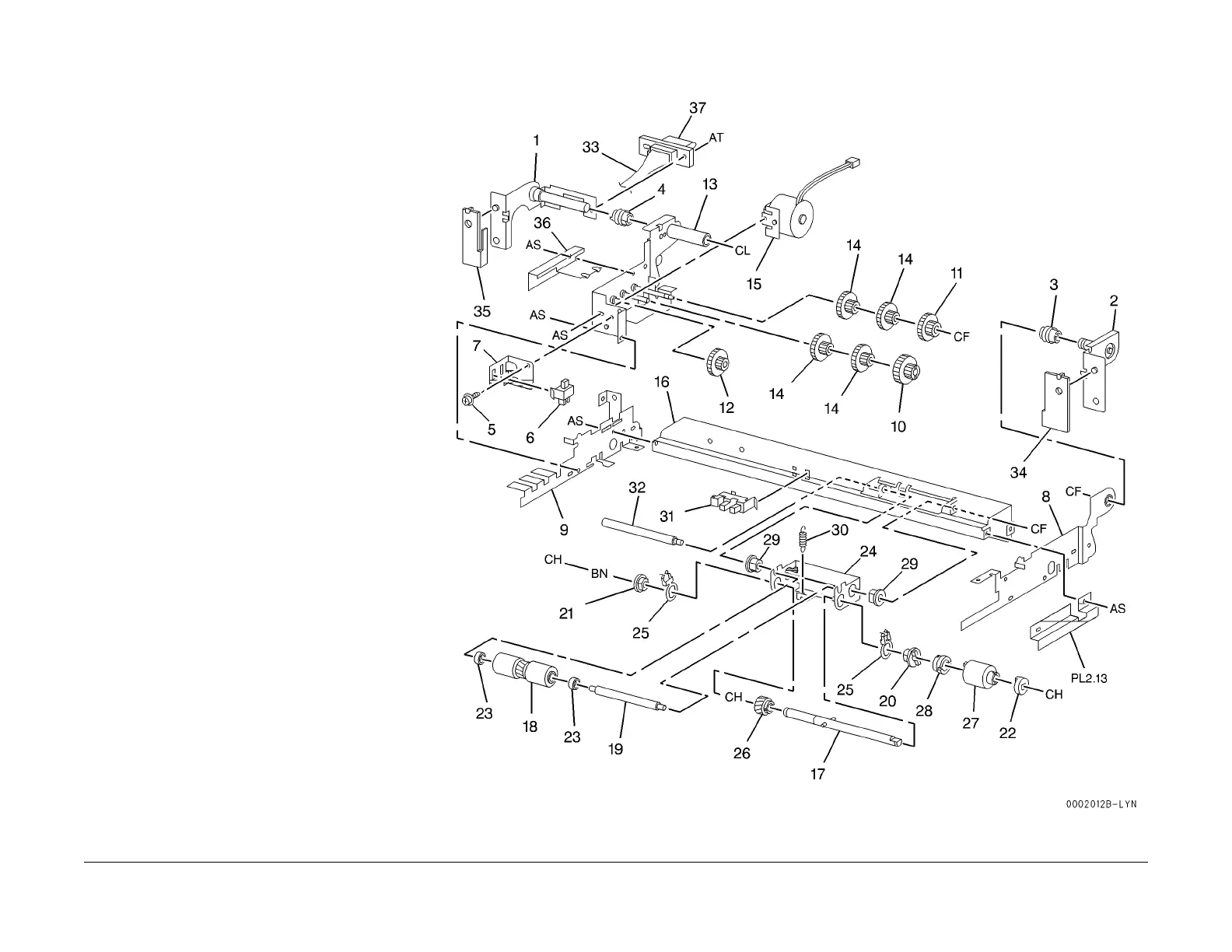

PL 2.12 Tray 5 Base
Item Part Description
1 – Bracket (Rear) (P/O PL 2.9 Item
14)
2 – Bracket (Front) (P/O PL 2.9 Item
14)
3 – Damper (Front) (P/O PL 2.9 Item
14)
4 – Damper (Rear) (P/O PL 2.9 Item
14)
5 – Screw (P/O PL 2.9 Item 14)
6 110E93440 Tray 5 Interlock Switch
7 – Switch Bracket (P/O PL 2.9 Item
14)
8 – Frame (Front) (P/O PL 2.9 Item 14)
9 – Frame (Rear) (P/O PL 2.9 Item 14)
10 007E23260 Gear (12/28)
11 007E50250 Gear (10/20)
12 007E51430 Gear
13 – Frame (P/O PL 2.9 Item 14)
14 007E22430 Gear (12/28)
15 127K23470 Tray 5 Lift Motor (REP 2.12.1 )
16 – Chute (P/O PL 2.9 Item 14)
17 – Shaft (P/O PL 2.9 Item 14)
18 059K08840 Tray 5 Retard Roll (REP 2.12.2 )
19 – Shaft (P/O PL 2.9 Item 14)
20 – Bearing (P/O PL 2.9 Item 14)
21 – Bearing (P/O PL 2.9 Item 14)
22 – Collar (P/O PL 2.9 Item 14)
23 – Collar (P/O PL 2.9 Item 14)
24 – Support (P/O PL 2.9 Item 14)
25 – Spring (P/O PL 2.9 Item 14)
26 007E54910 Gear
27 005K82490 Fiction Clutch
28 – Collar (P/O PL 2.9 Item 14)
29 – Bearing (P/O PL 2.9 Item 14)
30 – Spring (P/O PL 2.9 Item 14)
31 130E82190 Tray 5 Stack Down Sensor
32 – Shaft (P/O PL 2.9 Item 14)
33 – Tray 5 Feeder Harness (P/O PL
2.
9 It
em 14)
34 – Bracket Cover (Front) (P/O PL 2.9
I
tem 14)
35 – B
racket Cover (Rear) (P/O PL 2.9
I
tem 14)
36 – G
ear Cover (P/O PL 2.9 Item 14)
37 113E24030 Connector (J703)
