Xerox DocuColor 12/DCCS50 User Manual

1/05
5-327
DocuColor 12/DCCS50
PL 13.9
Parts Lists
Reissue

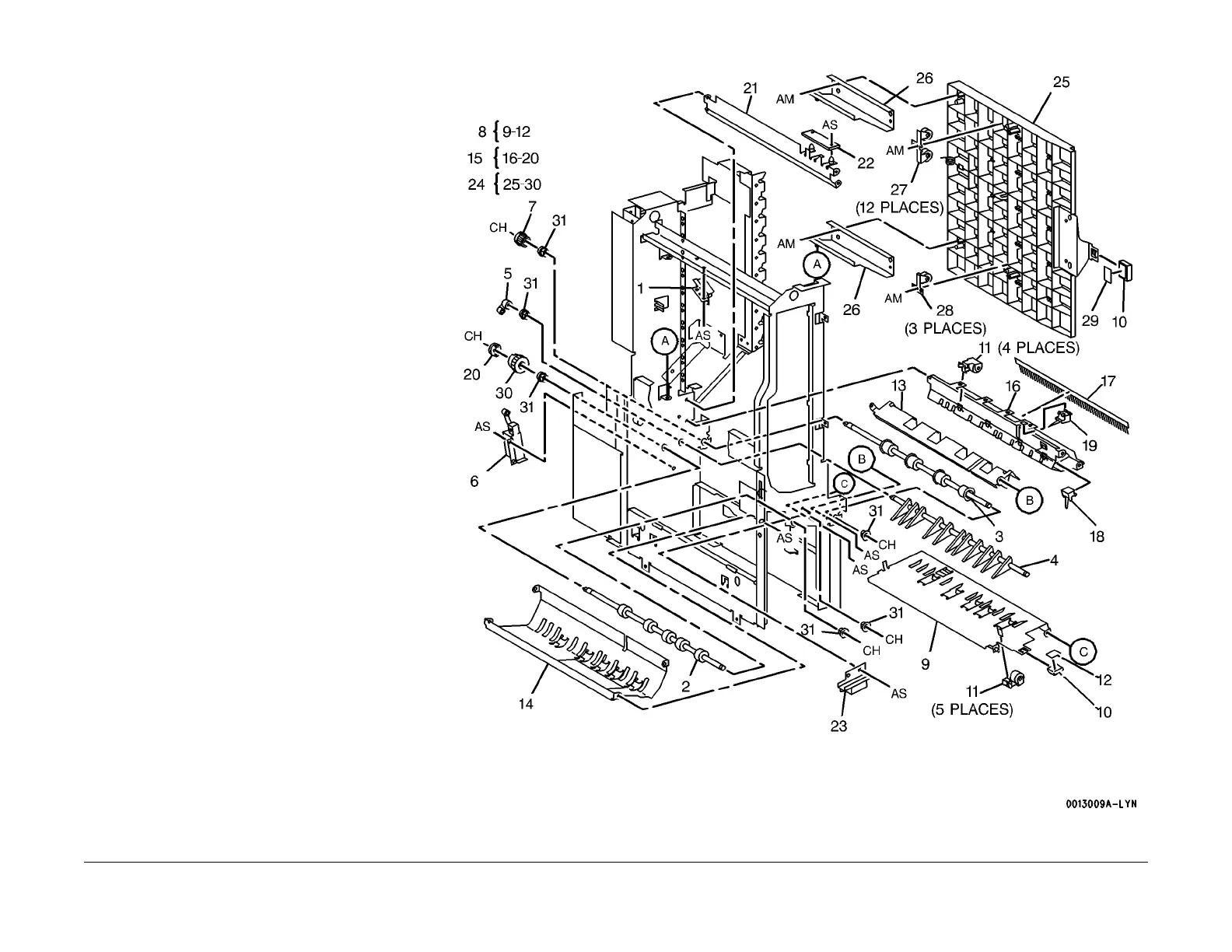

PL 13.9 Mail Box Roll, Chute
Item Part Description
1 121K19230 Magnet
2 059K12460 Entrance Roll
3 059K12471 Exit Roll
4 050K30120 OCT Gate
5 – Link (P/O PL 13.3 Item 1)
6 121K14541 OCT Gate Solenoid
7 – Pulley (Not Spared)
8 054K14091 Entrance Lower Baffle Assembly
9 – Entrance Lower Baffle (P/O PL
13.
9 It
em 8)
10 003E36290 Knob
11 059K08590 Pinch Roll
12 891E73331 Label (7)
13 – Exit Lower Chute (P/O PL 13.3
It
em
1)
14 – Entrance Upper Chute (P/O PL
13.
3 It
em 1)
15 054K14102 Exit Upper Chute Assembly
16 – Exit Upper Chute (P/O PL 13.9
I
tem 15)
17 105E986
90 Eliminator
18 130E80100 OCT Exit Sensor
19 130K94740 V-Tra. In Sensor
20 – Stopper (P/O PL 13.3 Item 1)
21 – Lower Tray Chute (P/O PL 13.3
It
em
1)
22 160K53431 Mail Box Vertical Sensor (REP
13.
5.1 )
23 068K153
50 Magnet
24 054K14131 Transport Baffle Assembly
25 – Transport Baffle (P/O PL 13.9 Item
24)
26 – Support (P/O PL 13.9 Item 24)
27 022K43720 Pinch Roll
28 022K48240 Pinch Roll
29 891E73431 Label (8)
30 005K82400 Torque Limiter Gear
31 413W75959 Bearing
