Xerox DocuColor 12/DCCS50 User Manual

1/05
4-24
DocuColor 12/DCCS50
REP 2.7.3, REP 2.8.1
Reissue
Repairs and Adjustments
REP 2.7.3 T/A Motor
Parts List on PL 2.7A
Removal
WARNING
Turn power off and disconnect the power plug.
1. Remove the Tray 2-4 Take Away Drive (REP 2.7.
1).
2. Remove the T/A Motor (Figur
e 1).
1. Disconnect the connector.
2. Remove the screws (2).
3. Remove the T/A Motor.

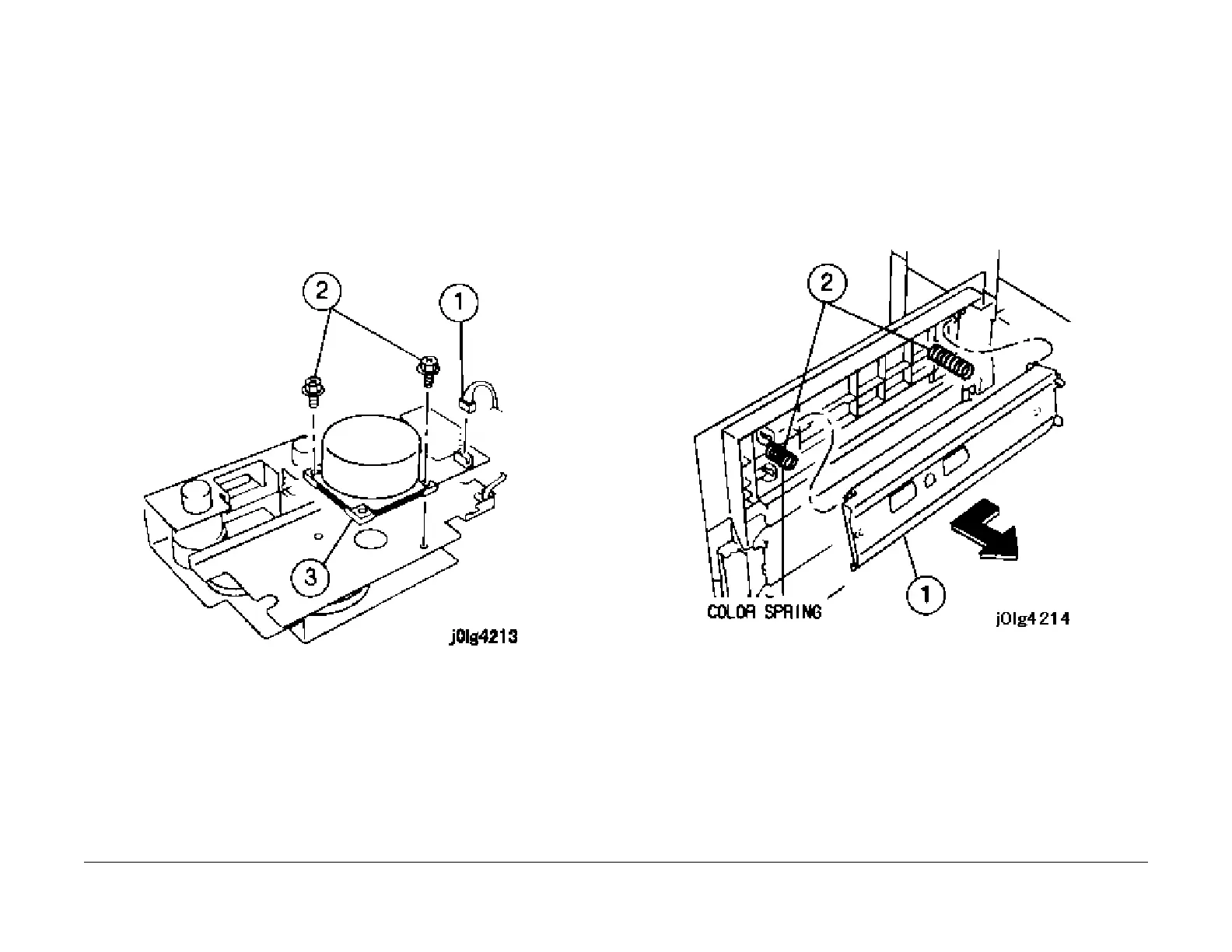

Figure 1 Removing the T/A Motor
Installation
1. Reinstall the parts in the reverse order of disassembly.
REP 2.8.1 Tray 1 Feed-out Sensor, T/A Sensor
Parts List on PL 2.8
Removal
WARNING
Turn power off and disconnect the power plug.
1. Open the Left Lower Cover.
2. Move the baffle in the direction shown and remove it (Figure 1).
1.
Remove the baffle.
2. Remove the springs (2).
Figure 1 Removing the Baffle
3. Move the sensor with the bracket (Figure 2
).
1. Remove the screw.
2. Remove the bracket.
