Figure 3 Remove the Decurler Entrance Roll
Replacement
Reinstall the Decurler Entrance Roll in the reverse order of disassembly.
REP 15.1.13 Decurler Exit Roll
Parts List on PL 18.8
Removal
WARNING
To avoid personal injury or shock, disconnect the Finisher cable connector. Switch off
the machine power and disconnect the Machine Power Cord.
1. Remove the Decurler Door (REP 15.3.
4).
2. Remove the Decurler Top Cover (REP 15.3.
12).
3. Remove the Decurler Inner Cover (REP 15.3.
14).
4. Remove the Decurler Rear Cover (REP 15.3.
13).
5. Remove the Torque Limiter, from the roll, at the rear of the Finisher (Figure 1).
1.
Remove the E-Clip.
2. Remove the Stopper.
3. Remove the Torque Limiter Gear.
4. Remove the Bearing.

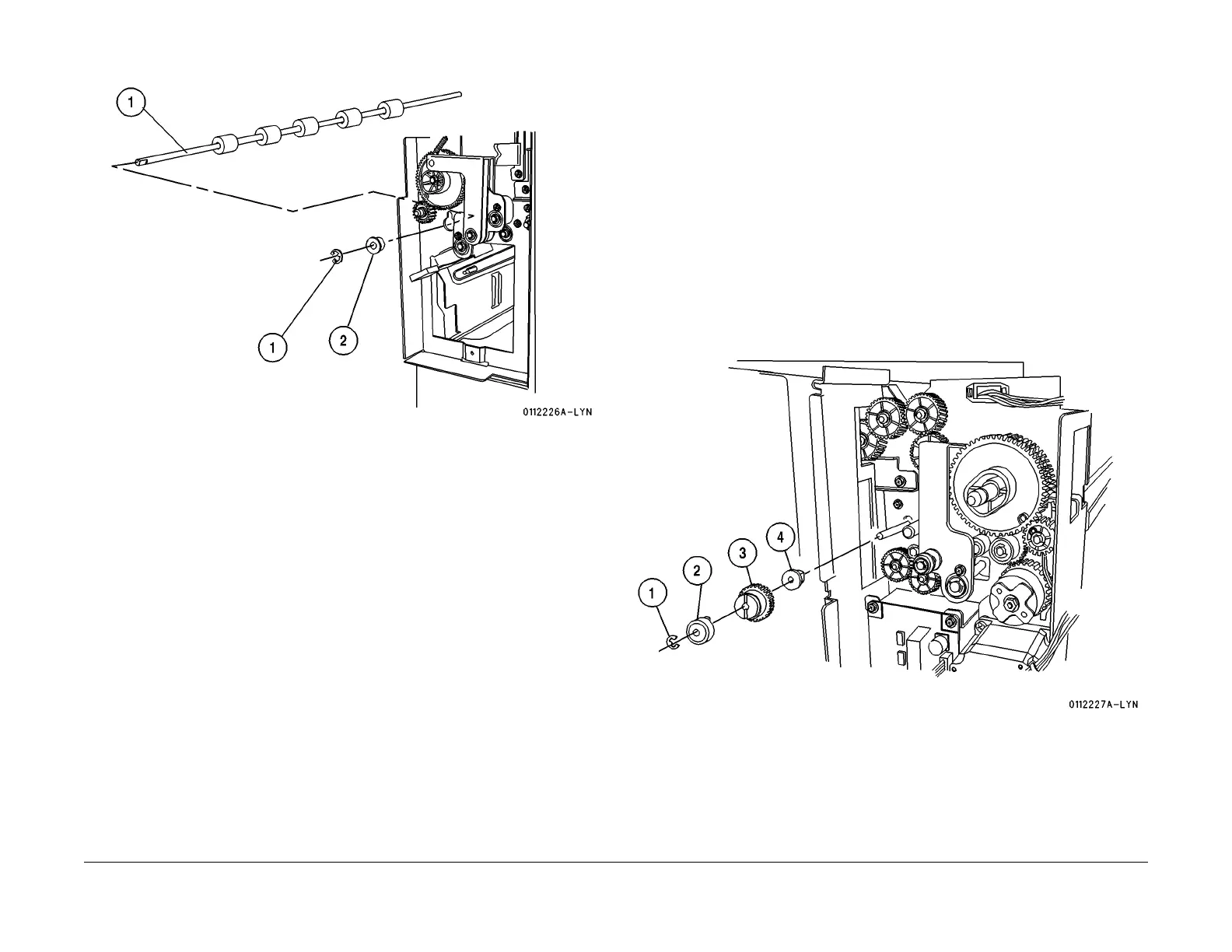

Figure 1 Remove the Torque Limiter Gear
6. Remove the Decurler Exit Roll at the front of the Finisher (F
igur
e 2).
1. Disengage the Exit Roll from the frame.
2. Remove the E-Clip.
3. Remove the Bearing, then remove the roll.
To Next Page
