1/05
5-291
DocuColor 12/DCCS50
PL 8.5
Parts Lists
Reissue

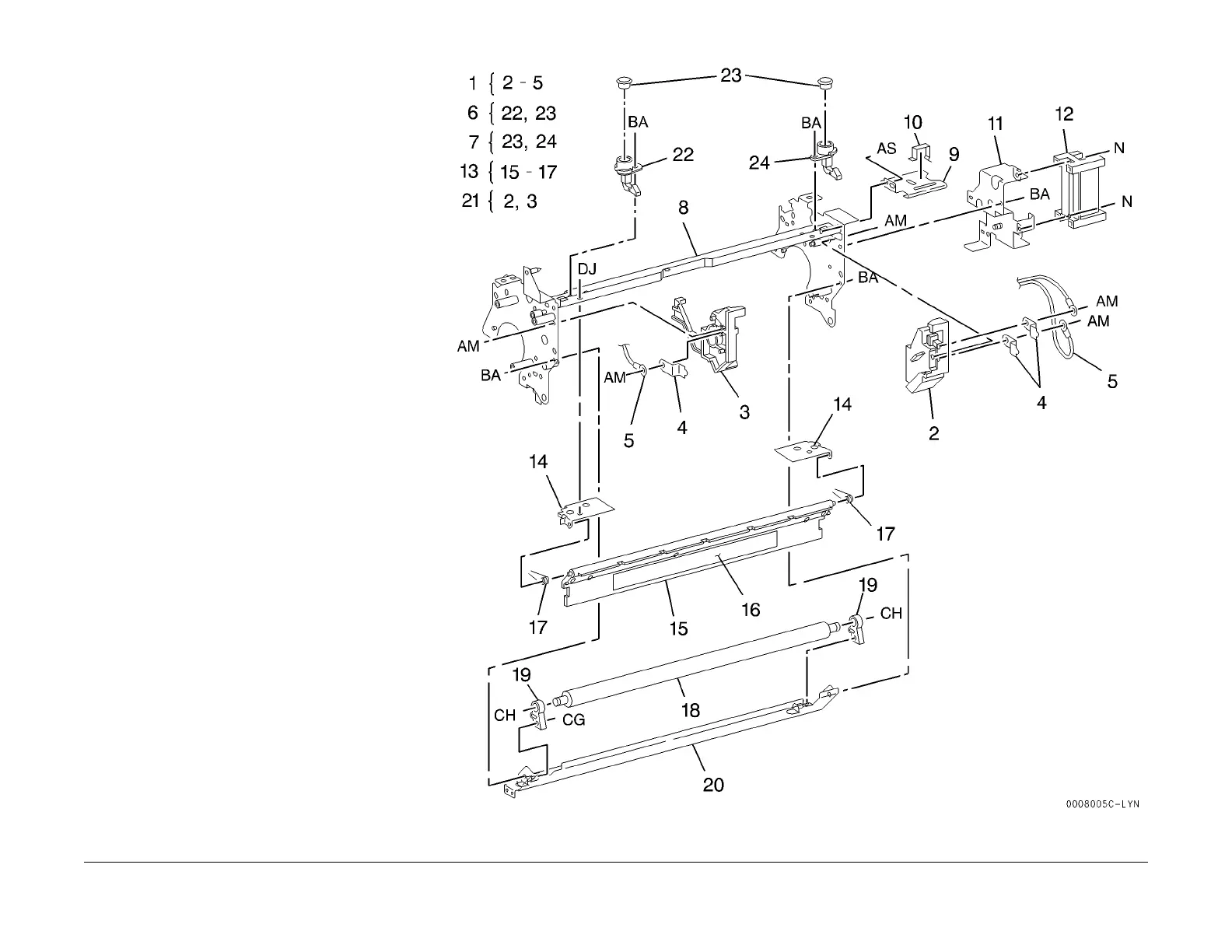

PL 8.5 Web Shutter, Cleaning Roll
(Heat Roll)
Item Part Description
1 – Web Guide Block Assembly (P/O
PL 8.1 It
em 1)
2 – Rear Guide Block (P/O PL 8.5 Item
1)
3 – Front Guide Block (P/O PL 8.5
It
em
1)
4 – Contact Plate (P/O PL 8.1 Item 1)
5 – Wire Harness (P/O PL 8.1 Item 1)
6 003K85453 Front Latch Assembly
7 003K85483 Rear Latch Assembly
8 – Upper Frame (P/O PL 8.1 Item 1)
9 – Bracket (P/O PL 8.1 Item 1)
10 – Holder (P/O PL 8.1 Item 1)
11 – Bracket (P/O PL 8.1 Item 1)
12 913W02310 Connector (Blue) (PJ700)
– 162K37050 Fuser Side Harness
– 162K36960 Frame Side Harness
13 600K84050 Web Shutter Repair Kit
14 – Support (P/O PL 8.1 Item 1)
15 – Shutter (P/O PL 8.5 Item 13)
16 – Label (P/O PL 8.5 Item 13)
17 – Spring (P/O PL 8.5 Item 13)
18 059K24360 Cleaning Roll
19 013E87551 Bearing
20 – Tie Plate (P/O PL 8.1 Item 1)
21 014K81273 CRU Block Guide Assembly
22 – Front Latch (P/O PL 8.5 Item 6)
23 003K85731 Web Release Button
24 – Rear Latch (P/O PL 8.5 Item 7)
