1/05
4-23
DocuColor 12/DCCS50
REP 2.7.2
Repairs and Adjustments
Reissue

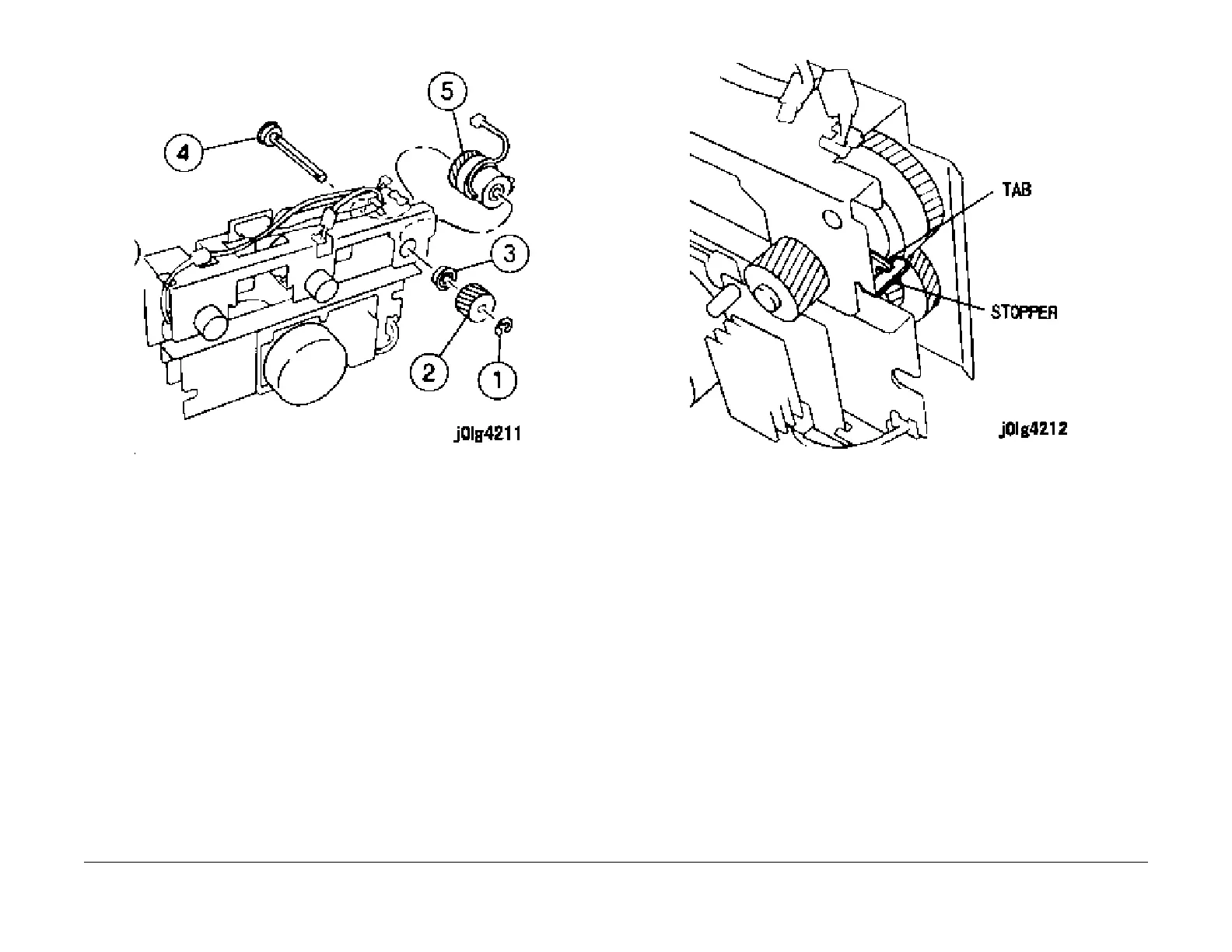

Figure 2 Removing the Tray 2 Feed T/A Clutch
Installation
NOTE: When you reinstall the parts, make sure to insert the bracket stopper into the clutch tab
(Figure 3).
1. Reinstall the parts in the reverse order of disassembly.
Figure 3 Reassembly
