DocuColor 12/DCCS50

REP 6.6.1, REP 6.6.2

Repairs and Adjustments

Reissue

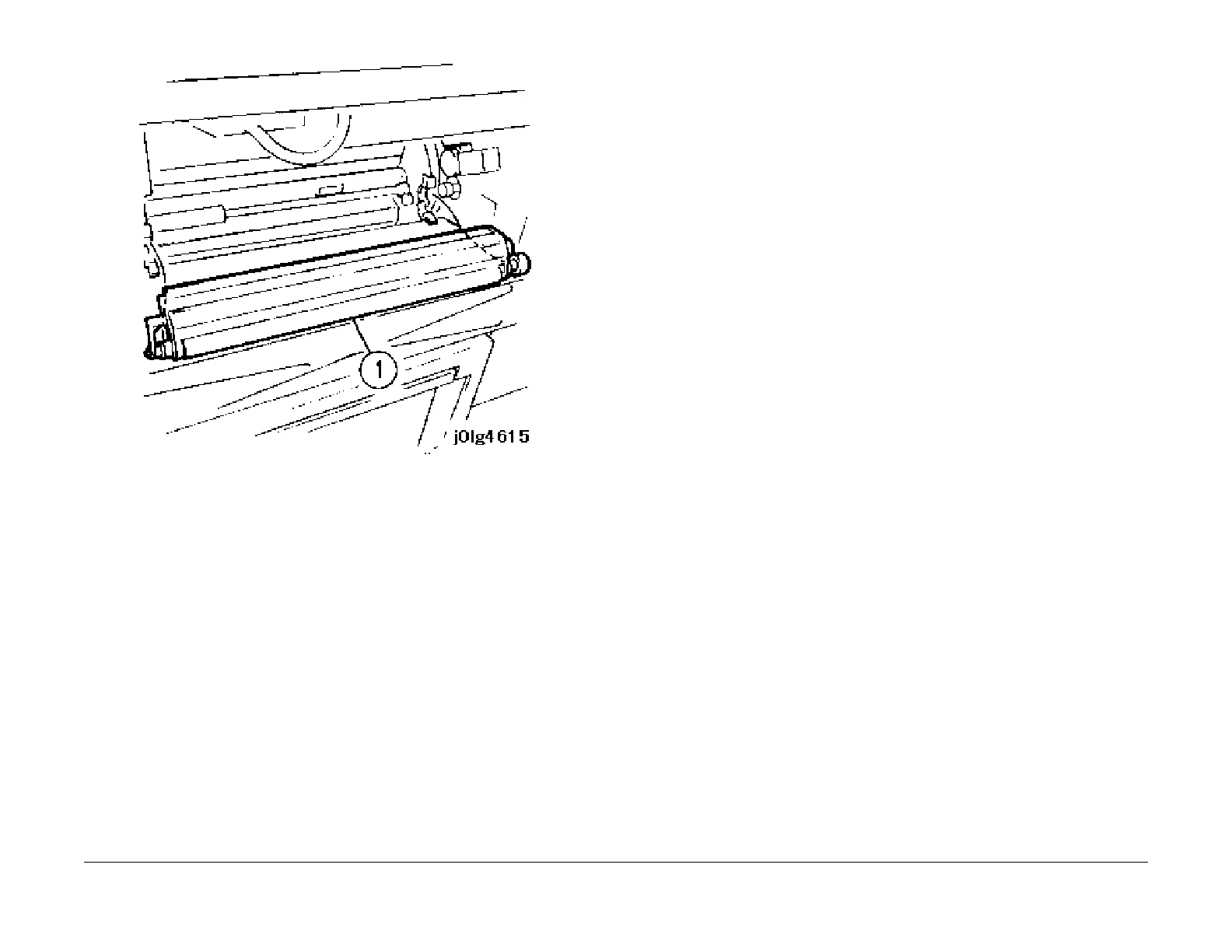

Figure 4 Remove the Development Housing

Installation

NOTE: If the Development Housing cannot be easily installed, the gears may not be meshed

properly. Rotate the gears clockwise slightly and then install the Development Housing.

1. Reinstall the parts in the reverse order of disassembly.

NOTE: If the developer material has been replaced, go to

IQ47 ATC Sensor RAP, Appendix 1.

ATC set-up procedure

REP 6.6.2 Developer Replacement

Parts List on PL 6.6

Removal

Developer Removal

WARNING

Turn power off and disconnect the power plug.

WARNING

Do not put the Developer or Developer Unit into a fire. If the Developer or Developer Unit

is placed into a fire, it may explode and cause injury.

NOTE: After replacing the Development Housing, reset the HFSI counter. Enter the dC135

HFSI Count

er List Diag. Screen:

a. Yellow: location NVM 009-851

b. Magenta: location NVM 009-852

c. Cyan: location NVM 009-853

d. Black: location NVM 009-850

1. Remove the Development Housing (REP 6.6.

1).

2. Place a sheet of paper on the floor or desk. Place the removed Development Housing on

it.

3. Rem

ove the Upper Cover (Figure 1).

Remove the screws (2).

2. Release the hooks (4) and remove the cover.
