Xerox DocuColor 12/DCCS50

1/05
4-88
DocuColor 12/DCCS50
REP 6.6.1
Reissue
Repairs and Adjustments

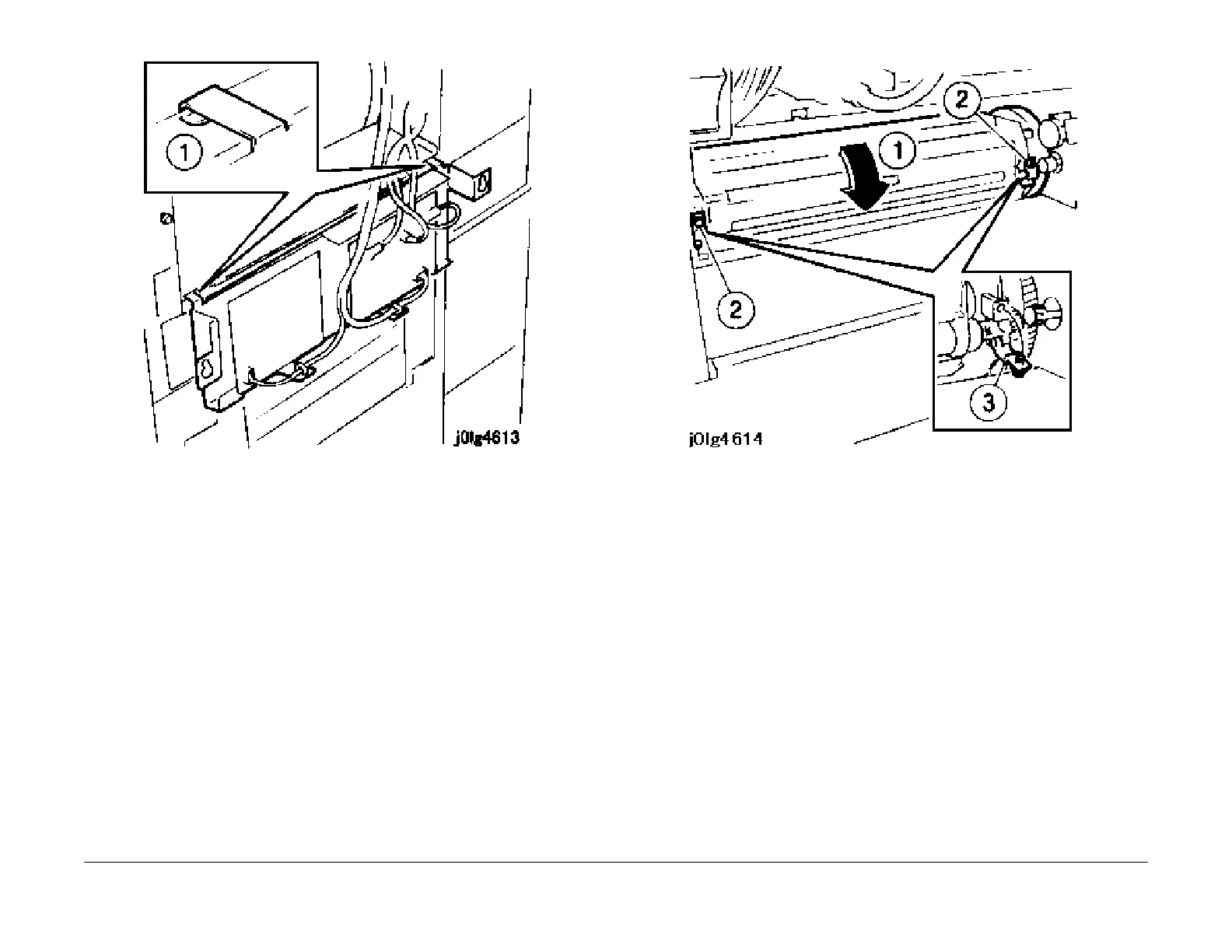

Figure 2 Hook the Bracket Hook s
4. Open the arms (white) (Figu
re 3).
1. Rotate the Rotary Assembly.
2. Loosen the screws (2).
3. Open the arms (2).
Figure 3 Open the Arms
5. Remove the Development Housing (F
igure 4).
1. Remove the development housing.
