Xerox DocuColor 12/DCCS50 User Manual

1/05
5-260
DocuColor 12/DCCS50
PL 3.1
Reissue
Parts Lists

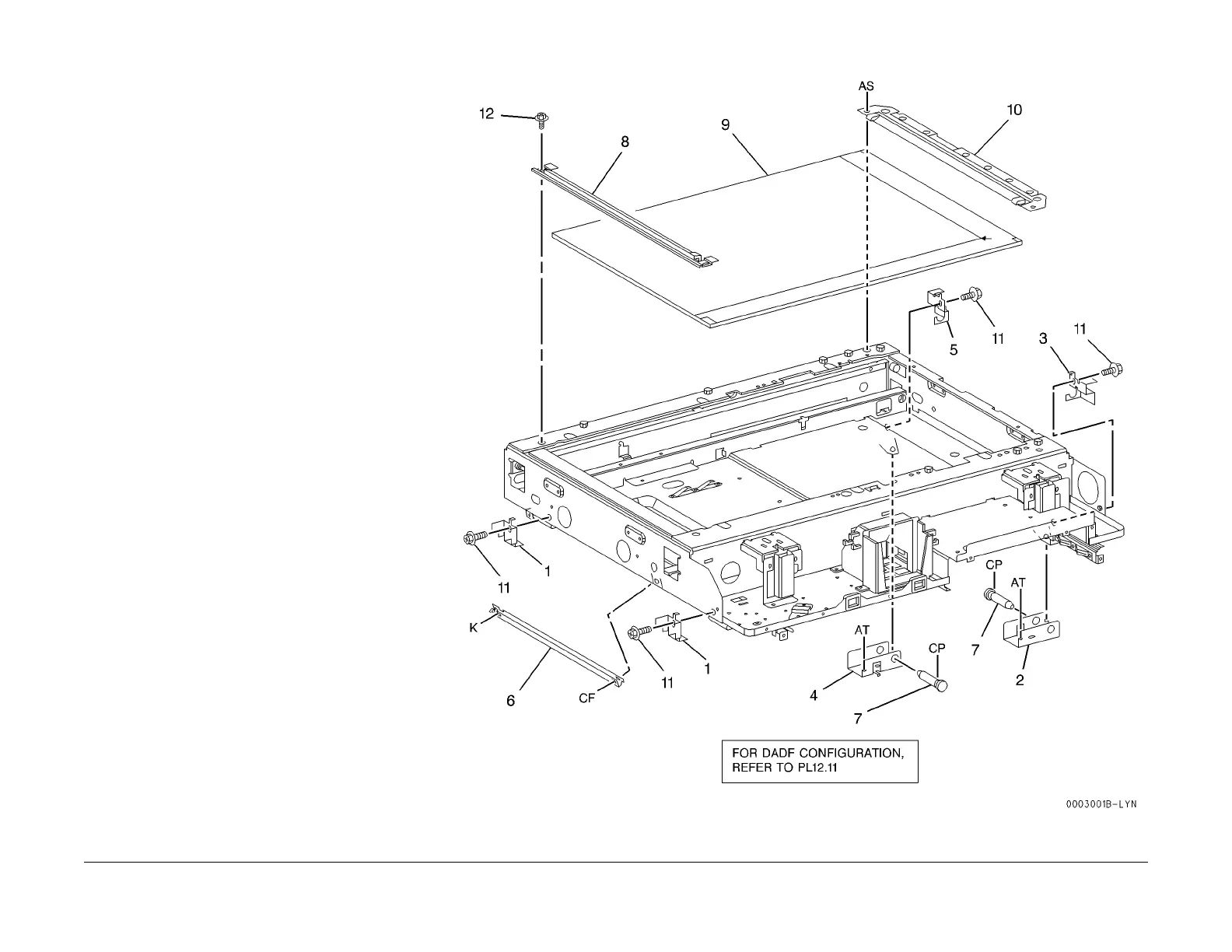

PL 3.1 Platen Glass: ITT
Item Part Description
1 – Stopper (Not Spared) (REP 3.1.2 )
2 – Bracket (Rear) (Not Spared)
3 – Stopper (Rear) (Not Spared)
4 – Bracket (Front) (Not Spared)
5 – Stopper (Front) (Not Spared)
6 – Brace (Not Spared)
7 – Stud (Not Spared)
8 – Right Side Plate (Not Spared)
9 090K92572 Platen Glass (With ADF) (REP
3.
1.1)
10 015K376
41 Left Side Plate
11 – Screw (Not Spared)
12 – Screw (Not Spared)
