Xerox DocuColor 12/DCCS50 User Manual

1/05
4-36
DocuColor 12/DCCS50
REP 2.15.1, REP 2.15.2
Reissue
Repairs and Adjustments

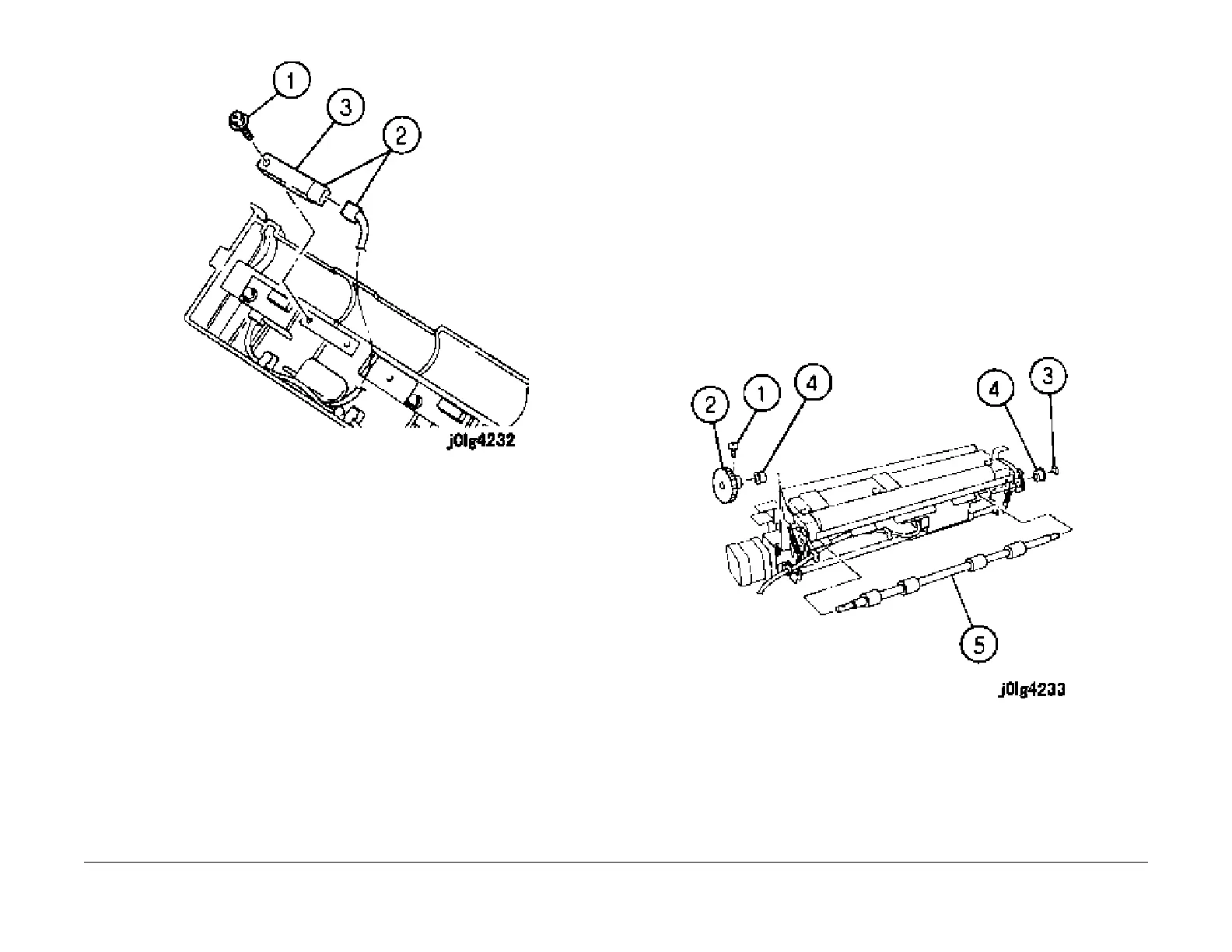

Figure 3 Removing the Regi. Sensor
Installation
1. Reinstall the parts in the reverse order of disassembly.
REP 2.15.2 Regi. Roll
Parts List on PL 2.15
Removal
WARNING
Turn power off and disconnect the power plug.
1. Open the Front Door.
2. Remove the Regi. Unit (REP 2.14.
1).
3. Remove the Regi. Roll (Figure 1).
1.
Remove the screw.
2. Remove the gear.
3. Remove the E-clip.
4. Move the bearings (2).
5. Remove the Regi. Roll.
Figure 1 Removing the Regi. Roll
Installation
1. Reinstall the parts in the reverse order of disassembly.
