Xerox DocuColor 12/DCCS50 User Manual

1/05
4-52
DocuColor 12/DCCS50
REP 3.1.2
Reissue
Repairs and Adjustments
REP 3.1.2 IIT Opening/Closing
Parts List on PL 3.1
Removal
CAUTION
Ensure that Tag 8, IIT Support Weld Brace Kit, is installed before the following removal proce-
dure is performed.
WARNING
Turn power off and disconnect the power plug.
NOTE: Remove the DADF if the unit is so equipped. (REP 12.
1.1).
1. Remove the following parts:
a. IIT Left Cover (PL 11
.3 Item 16)
b. Right Upper Cover (PL 11
.2 Item 1)
2. Slide the Control Panel toward the front (see Figu
re 1 of REP 9.5.1).

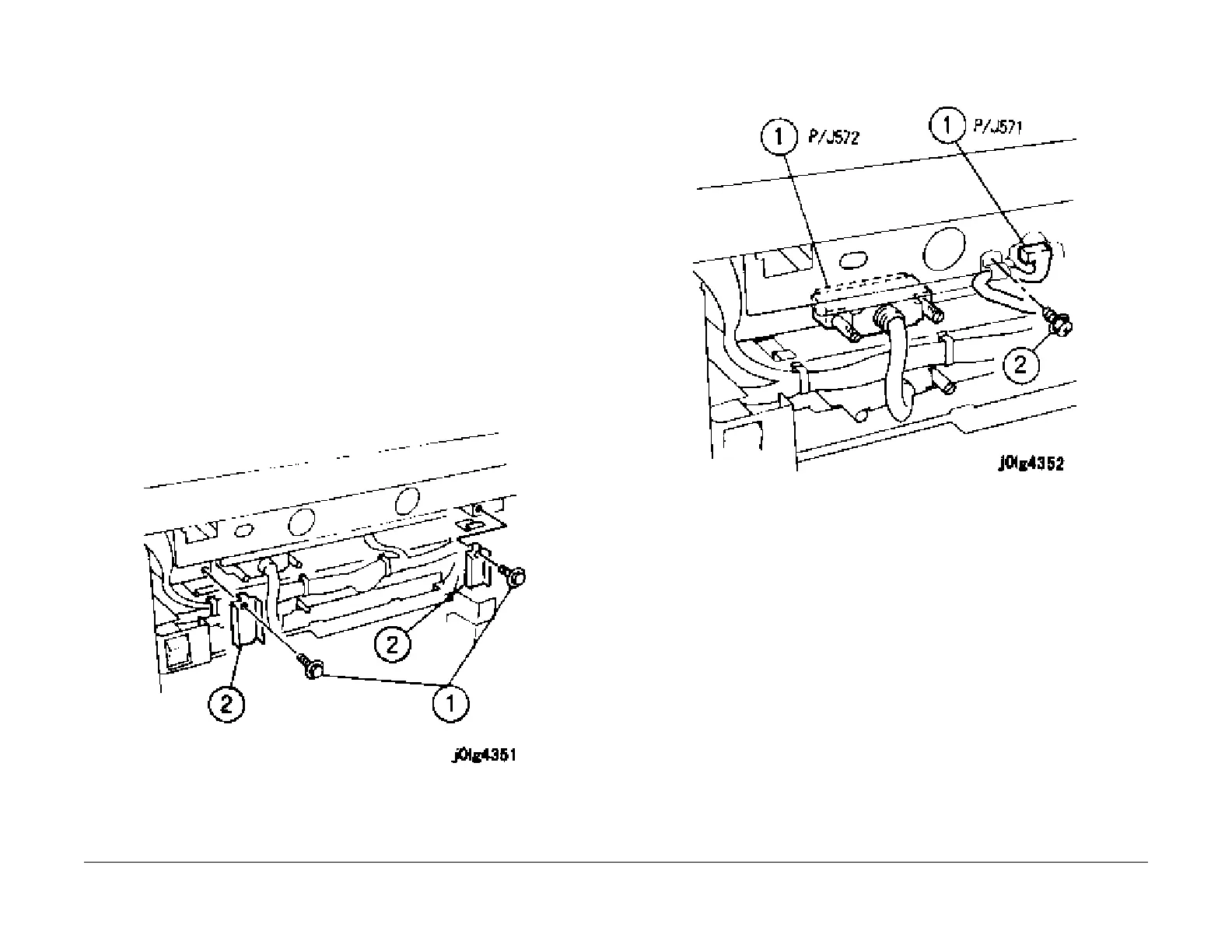

3. Remove the stopper (Figure 1).
1.
Remove the screws (2).
2. Remove the stoppers (2)
Figure 1 Removing the Stoppers
4. Disconnect the connectors (Figure 2).
1.
Disconnect the connectors (2).
2. Remove screw
Figure 2 Disconnecting the connectors
5. Open the IIT (Figure 3).
1.
Remove the screw.
2. Open the IIT
3. Insert the brace into the hole.
4. Lock the screw removed in step 5.1.
