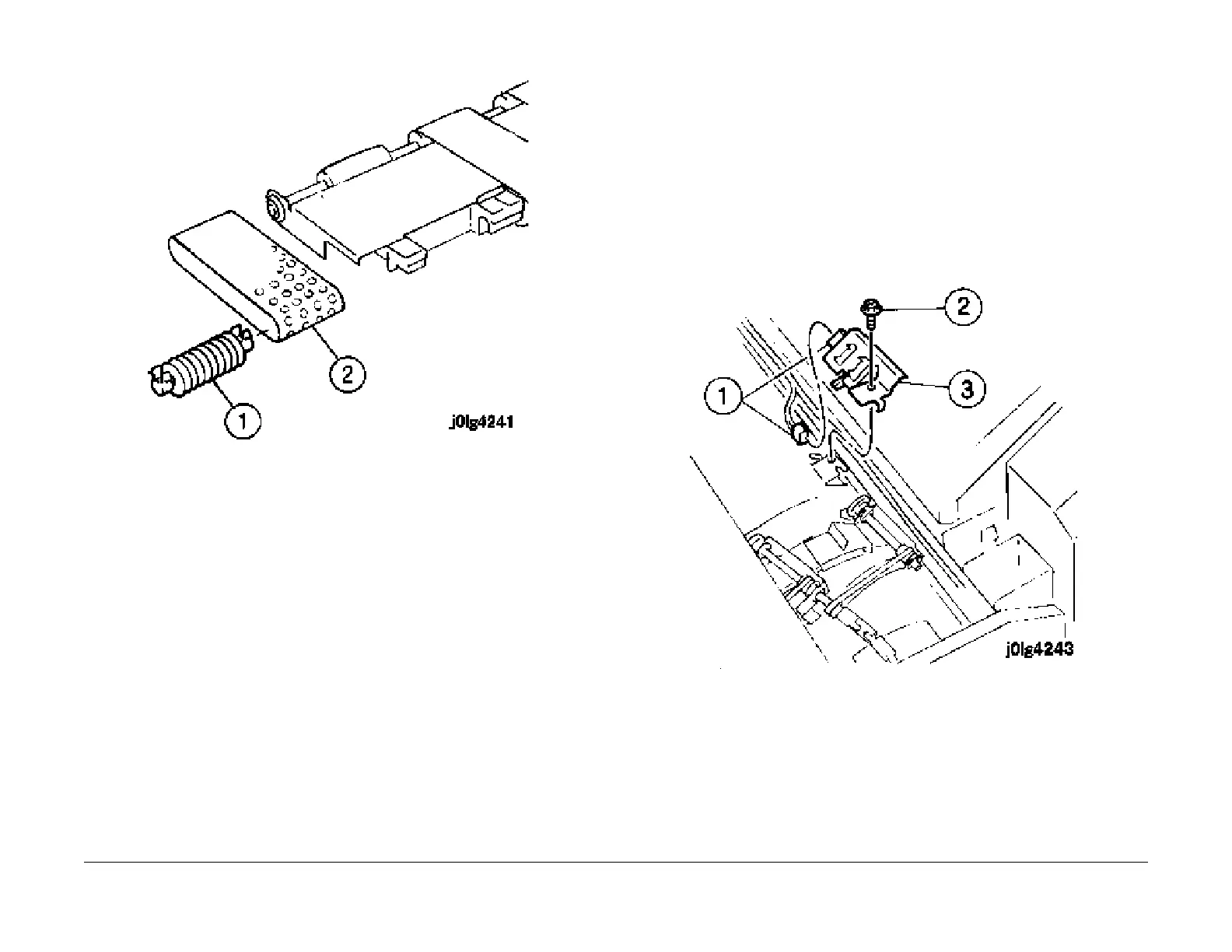

Figure 2 Removing the Vacuum Transport Belt
Installation
NOTE: When installing the Vacuum Transport Belt, make sure the shiny side is inside.
1. Reinstall the parts in the reverse order of disassembly.
REP 2.21.1 Duplex Path Sensor
Parts List on PL 2.21
Removal
WARNING
Turn power off and disconnect the power plug.
1. Open the Front Door.
2. Remove the Vacuum Transport (REP 2.17.
1).
3. Remove the Duplex Path Sensor with the bracket (Figure 1).
1.
Disconnect the connector.
2. Remove the screw.
3. Remove the bracket.
Figure 1 Removing the Bracket
4. Remove the Duplex Path Sensor from
the sensor bracket (Figure 2).
1. Remove the Duplex Path Sensor.
