1/05
4-45
DocuColor 12/DCCS50
REP 2.21.3, REP 2.23.1
Repairs and Adjustments
Reissue

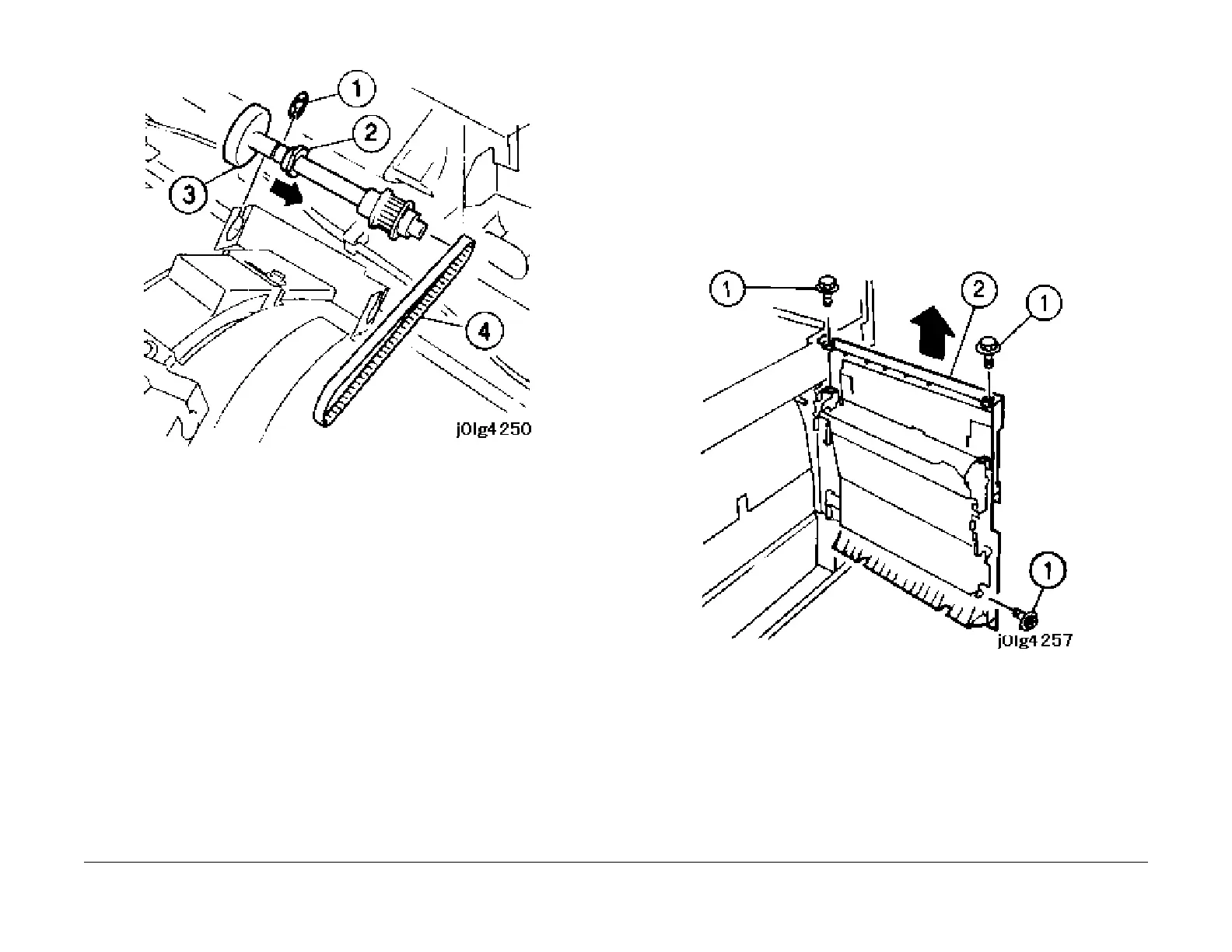

Figure 4 Removing the Duplex Belt 2
7. Reinstall the parts in the reverse order of disassembly.
REP 2.23.1 Inverter 1
Parts List on PL 2.23
Removal
WARNING
Turn power off and disconnect the power plug.
1. Remove the Right Upper Cover (PL 11
.2 Item 1)
2. Open the Inverter 2.
3. Remove the Inverter Cover (Figure 1).
1.
Remove the screws (3).
2. Lift the Inverter Cover and remove it.
Figure 1 Removing the Inverter Cover
4. Pull out the Drawer Assembly.
5. Disconnect the connector (Figure 2).
1.
Release the clamps (2) and remove the wire.
2. Disconnect the connectors (2).
To Next Page
