Xerox DocuColor 12/DCCS50 User Manual

1/05
5-241
DocuColor 12/DCCS50
PL 2.8
Parts Lists
Reissue

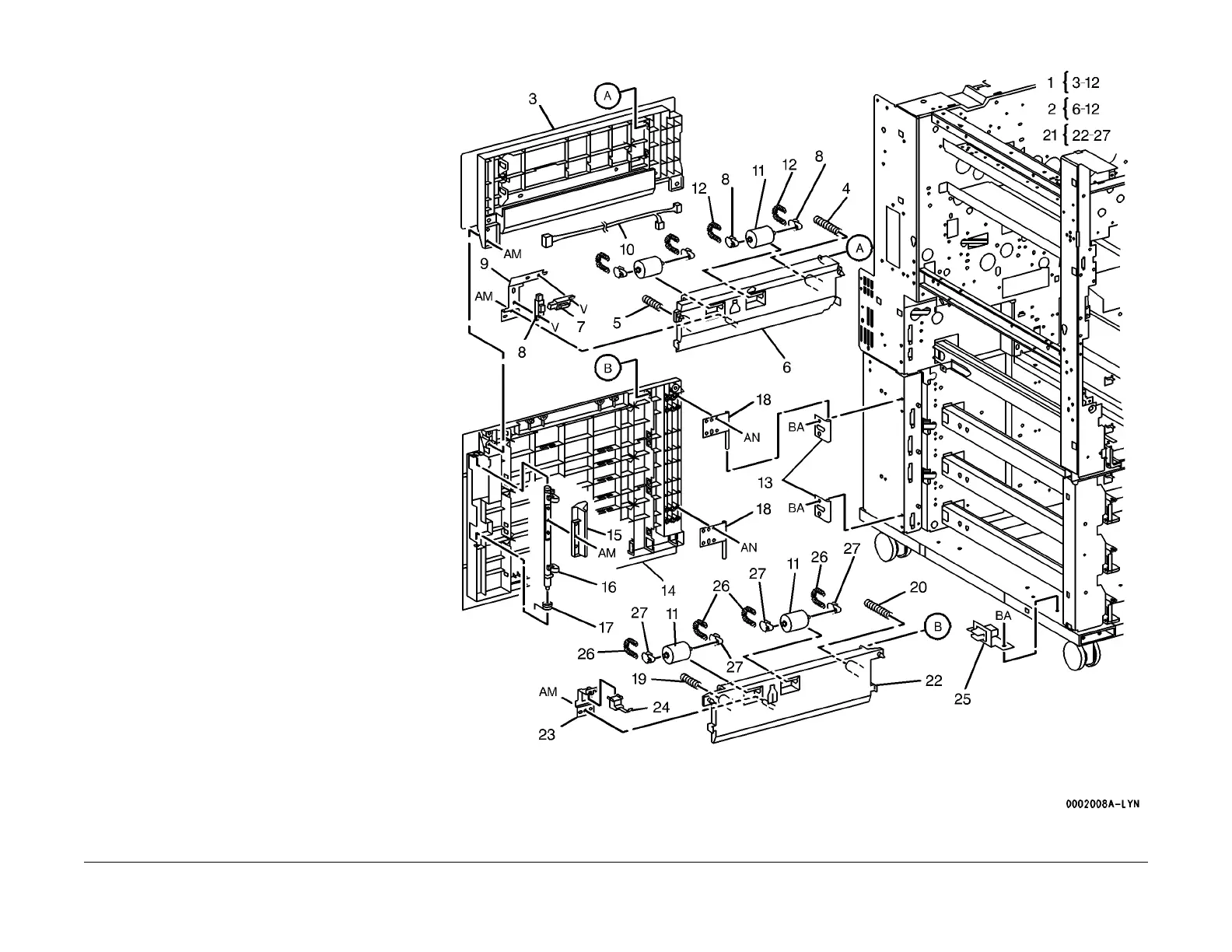

PL 2.8 Left Lower Cover
Item Part Description
1 048K65250 Left Lower Cover (Upper) and
Chute 1 Ass
embly
2 054K10350 Chute 1 Assembly
3 – Left Lower Cover (Upper) (P/O PL
2.
8 It
em 1)
4 809E07780 Spring
5 809E07770 Spring
6 054E10780 Baffle
7 130E82650 T/A Sensor, Tray 1 Feed Out Sen-
sor (REP 2.8.1 )
8 013E83380 Bearing
9 – Bracket (P/O PL 2.8 Item 2)
10 162K37160 Wire Harness
11 059E92920 Pinch Roll
12 009E63110 Spring
13 003E38120 Hinge
14 048E61482 Left Lower Cover (Lower)
15 011E07950 Handle
16 003E38130 Latch
17 – Spring (Not Spared)
18 003K84500 Hinge
19 – Spring (Not Spared)
20 – Spring (Not Spared)
21 054K10341 Chute 2/3/4 Assembly
22 – Baffle (P/O PL 2.8 Item 21)
23 – Bracket (P/O PL 2.8 Item 21)
24 130K60770 Tray 2 Feed Out Sensor, Tray 3
Fe
ed
Out Sensor, Tray 4 Feed Out
Sensor (REP 2.8.2 )
25 068K14170 L/H Cover Interlock Switch
26 – Spring (P/O PL 2.8 Item 21)
27 – Bearing (P/O PL 2.8 Item 21)
