DocuColor 12/DCCS50
REP 15.1.12
Reissue
Finisher/Sorter
REP 15.1.12 Decurler Entrance Roll
Parts List on PL 18.8
Removal
WARNING
To avoid personal injury or shock, disconnect the Finisher cable connector. Switch off
the machine power and disconnect the Machine Power Cord.
1. Remove the Decurler Door (REP 15
.3.4).
2. Remove the Decurler Top Cover (REP 15.
3.12).
3. Remove the Decurler Inner Cover (REP 15.3.
14).
4. Remove the Decurler Rear Cover (REP 15.
3.13).
5. Remove the Sensor Bracket (Figur
e 1).
1. Disconnect the connector.
2. Release the harness from the Clamps (4).
3. Remove the E-clip.
4. Remove the screw.
5. Remove the spring from the Bracket.
6. Remove the bracket.

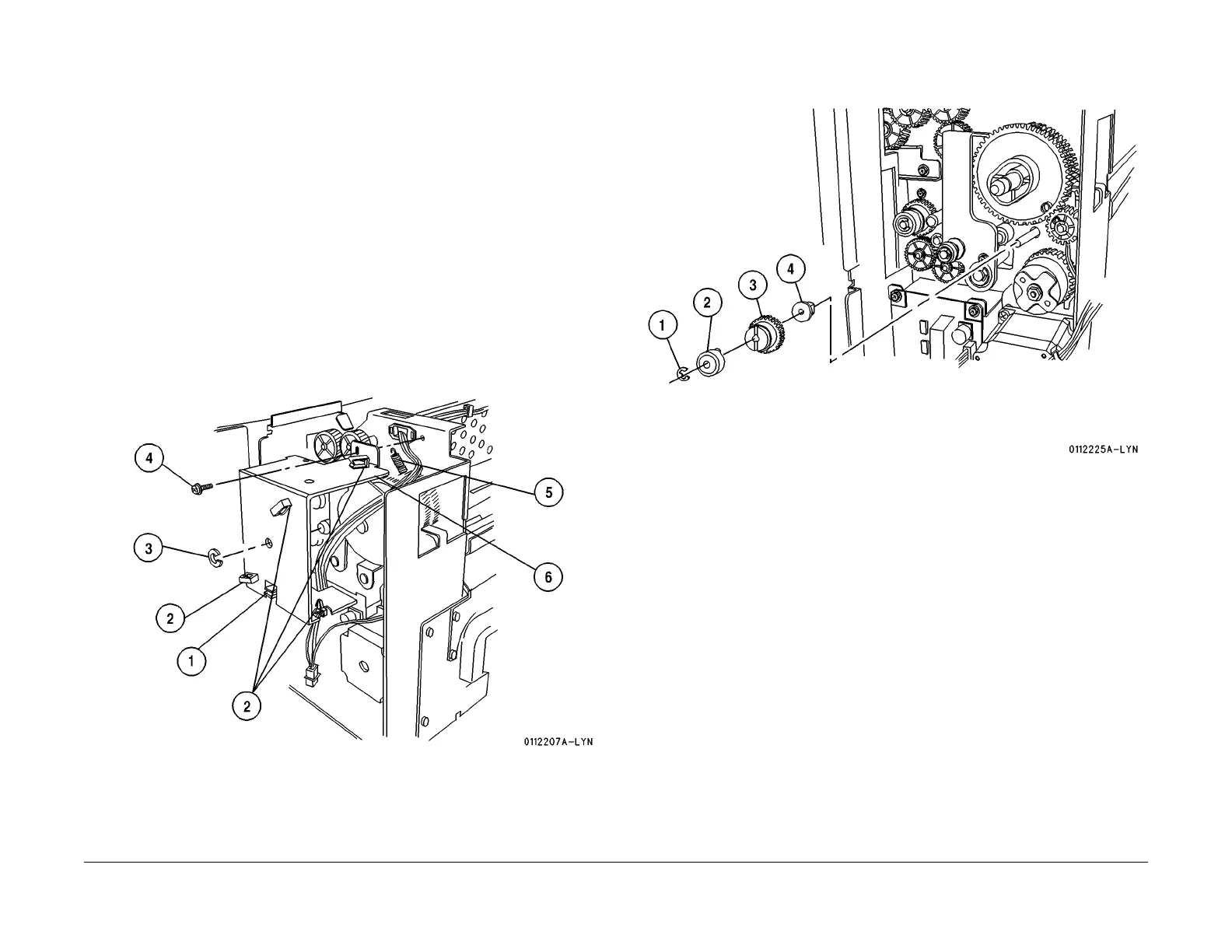

Figure 1 Remove the Sensor Bracket
6. Remove the Torque Limiter Gear at the rear of the Finisher (Fi
gu
re 2).
1. Remove the E-Clip.
2. Remove the Stopper.
3. Remove the Torque Limiter.
4. Remove the Bearing.
Figure 2 Remove the Torque Limiter Gear
7. Remove the Decurler Entrance Roll at the front of the Finisher (F
igure 3
).
1. Remove the C-Clip.
2. Remove the Bushing.
3. Remove the Decurler Entrance Roll.
