1/05
8e-11
DocuColor 12/DCCS50
REP 20.3
Electronic Pre-Collation (EPC)
Reissue
REP 20.3 EPC Scan Cable
Parts List on PL 20.1
Removal
1. For DCCS50:
• Switch Off the power. Wait 30 seconds, then unplug the power cord. Disconnect the
IDFE
DDI Cables.
For DC12 with attached Fiery or Splash DFE:
• Perform the correct power down procedure. Disconnect
the DFE DDI cables.
For DC12 without an attached DFE:
• Switch off the power and disconnect the power cord.
2. Undock the Finisher or Mailbox/Sorter, if present.
3. Remove the following:
• Exit Tray (PL 12.
11)
•
Right Upper Cover (PL 11
.2)
• IIT Rear Cover (PL 1
1.3)
• IOT Rear Cover (PL 11.3)
4.
Open the IIT (REP 3.1.
2)
CAUTION
Take note of the routing for the Scan Cable, the Print Cable and the Ribbon Cable. These com-
ponents must be reinstalled carefully to avoid damage.
5. Remove the Scan Cable (Figure 1
and Figure 2):

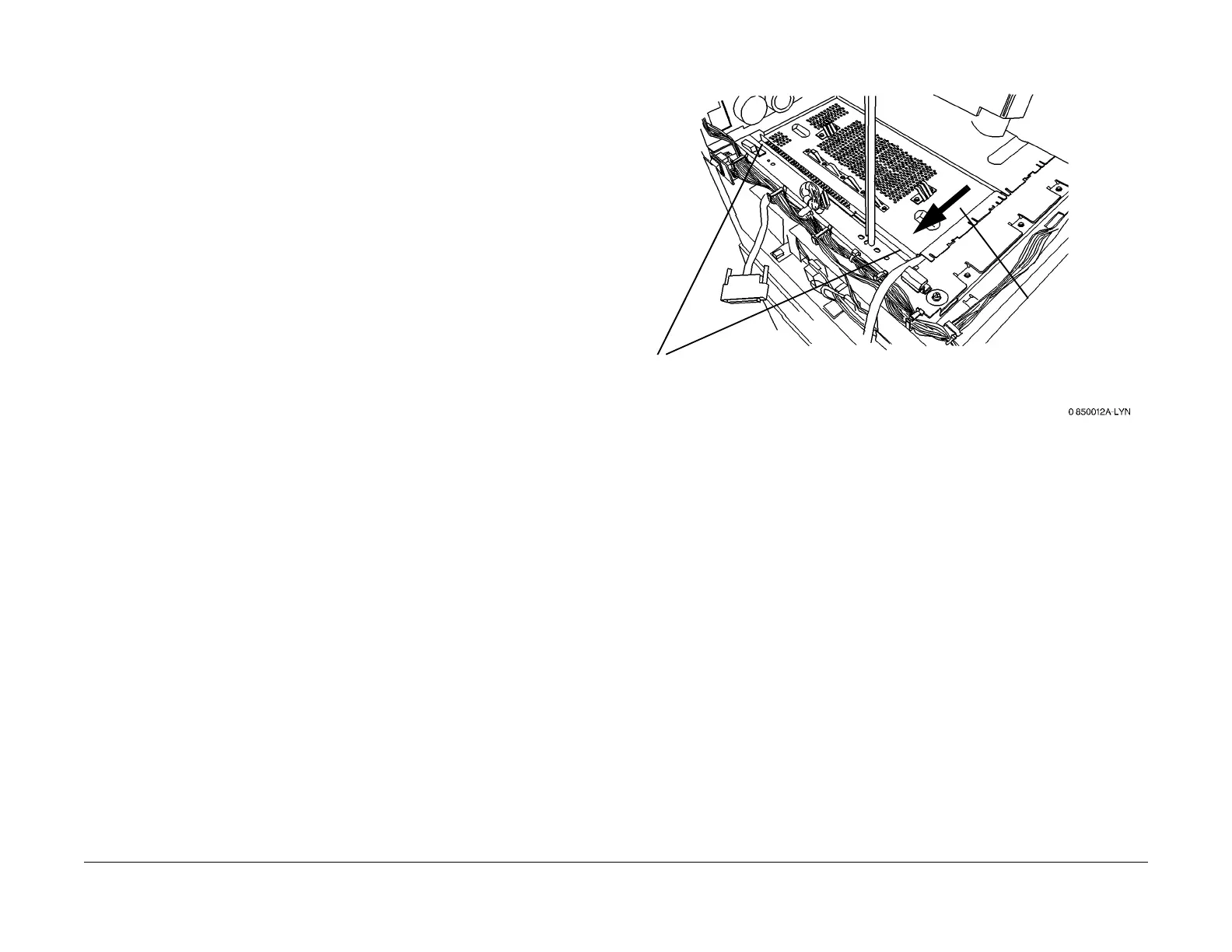

Figure 1 Accessing the VSEL PWB
1
Remove the screws (2)
2
Remove the Cover
To Next Page
