Repairs and Adjustments

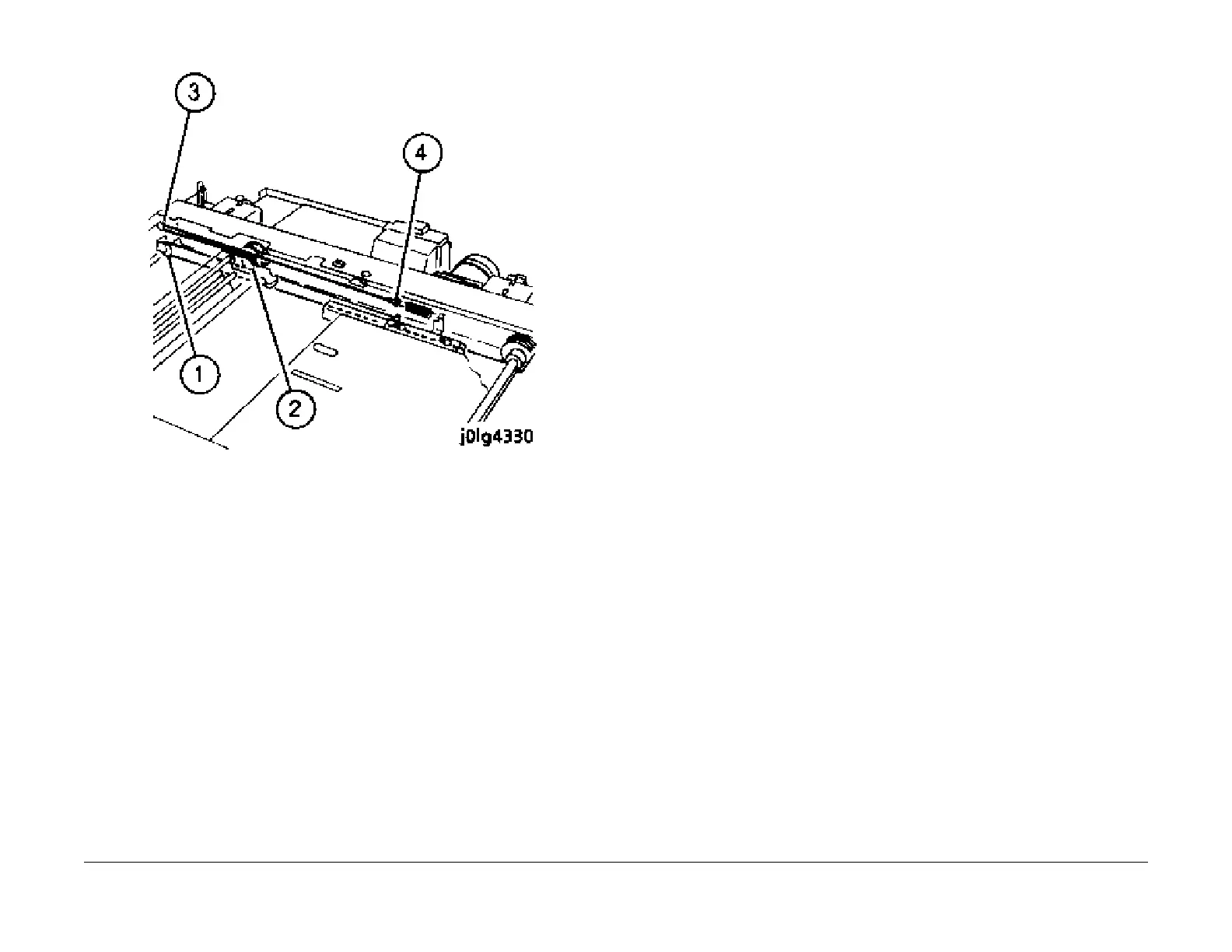

Figure 10 Installing the Carriage Cable (spring hook side)
4. Remove the tape from the cable.
5. Install the Full Rate Carriage in the IIT Frame.
6. Adjust the positions of the Full Rate/Half Rate Carriages (A
DJ.
3.4.1).
7. Manually move the Full Rate Carriage to make sure it moves smoothly.
8. Install the remaining parts in the reverse order of disassembly from Step 6.
REP 3.3.2 Carriage Motor
Parts List on PL 3.3
Removal
WARNING
Turn power off and disconnect the power plug.
1. Remove the Platen Cover or DADF (REP 12.1.
1).
2. Remove the Platen Glass (REP 3.1.
1).
3. Platen machine: Remove the Blind Cover (PL11.1). PL
11.1 Item 7
4. Remove the Top Cover (PL
11.1 Item 1)
5. Remove the IIT Rear Cover (PL 1
1.3 Item 15)
6. Remove the Carriage Motor (Figure 1
).
1. Release the clamps (2).
2. Disconnect the connector.
3. Remove the screws (3).
4. Remove the spring.
5. Remove the Carriage Motor.
