1/05
4-42
DocuColor 12/DCCS50
REP 2.21.1, REP 2.21.2
Reissue
Repairs and Adjustments
Figure 2 Removing the Duplex Path Sensor
Installation
1. Reinstall the parts in the reverse order of disassembly.
REP 2.21.2 Duplex Out Sensor
Parts List on PL 2.21
Removal
WARNING
Turn power off and disconnect the power plug.
1. Open the Front Door.
2. Remove the Regi. Unit (REP 2.14.
1).

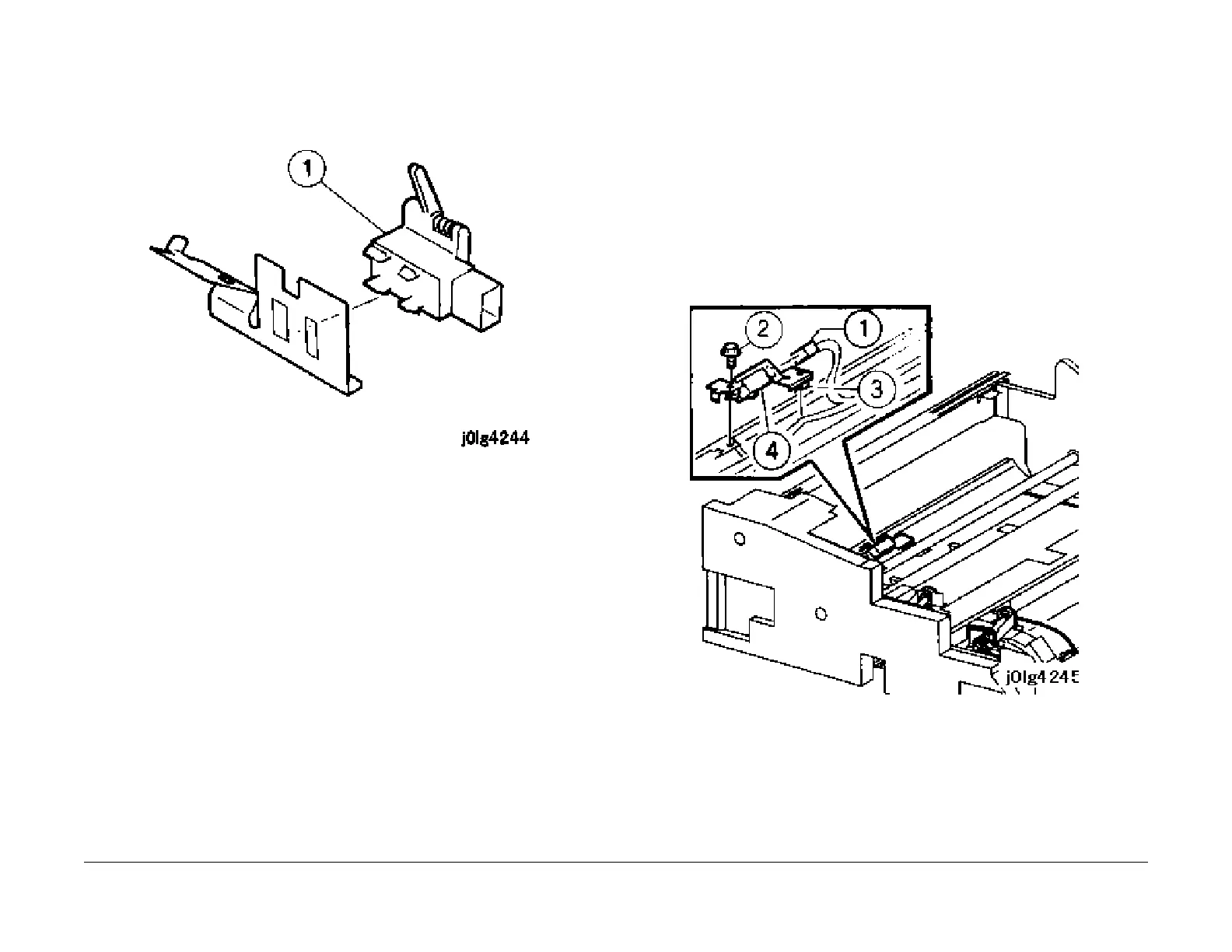

3. Remove the Duplex Out Sensor with the bracket (Figure 1).
1.
Disconnect the connector.
2. Remove the screw.
3. Release the clamp and remove the wire.
4. Remove the bracket.
Figure 1 Removing the Bracket
4. Remove the Duplex Out Sensor from the sensor bracket (Figure
2).
1. Remove the Duplex Out Sensor.
