1/05
5-323
DocuColor 12/DCCS50
PL 13.5
Parts Lists
Reissue

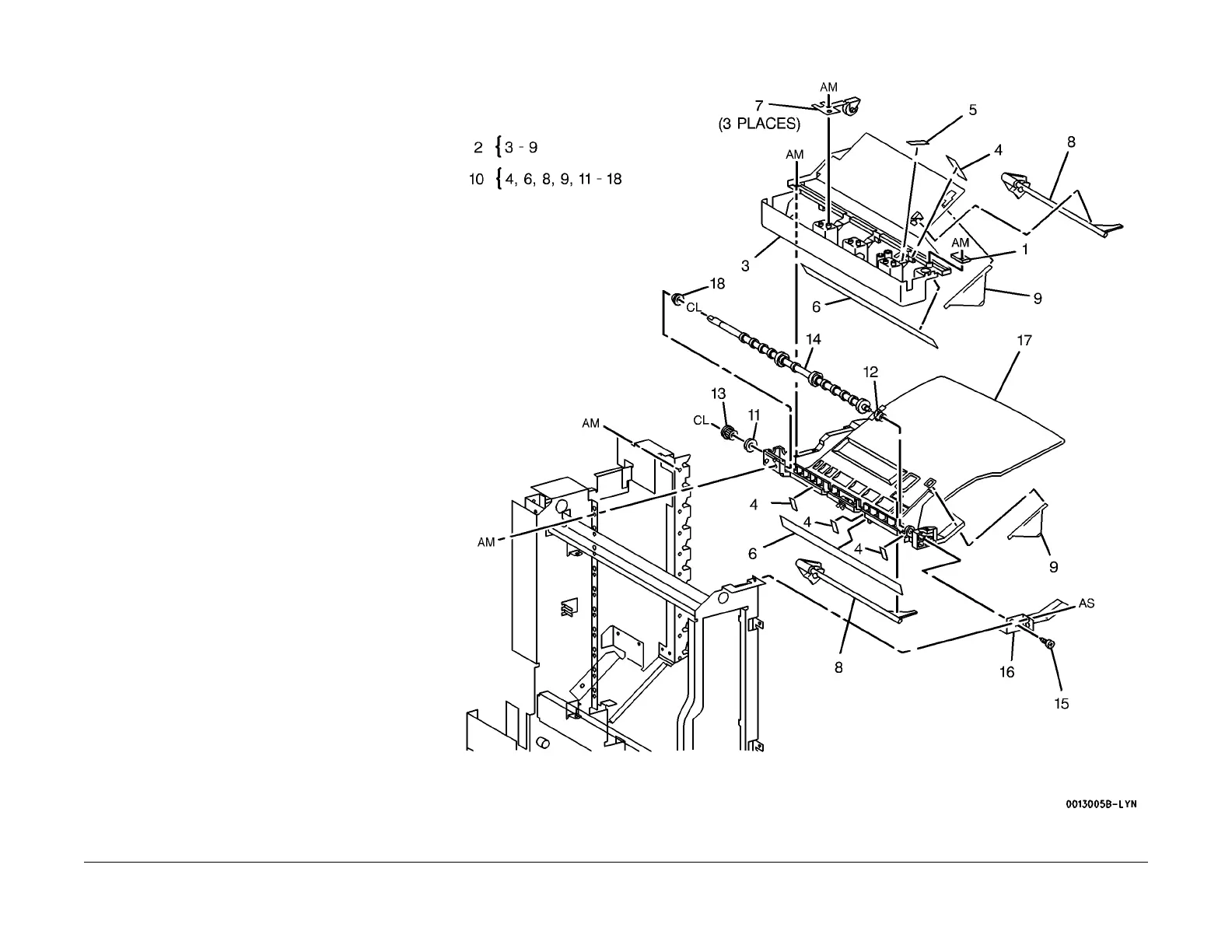

PL 13.5 ACT Cover, Bin Tray 1
Item Part Description
1 160K53431 Vertical Led (REP 13.5.1 )
2 802K09190 ACT Cover Assembly
3 – ACT Cover (P/O PL 13.5 Item 2)
4 038E88980 Paper Guide
5 038E86180 Paper Guide
6 105E98450 Eliminator
7 022K43710 Pinch Roll
8 120E13130 Actuator
9 120E17020 Actuator
10 050K36832 Bin Tray 1 Assembly (REP 13.5.2 )
11 005E83570 Collar
12 013E89540 Bearing
13 020E21490 Pulley
14 022E83451 Roll
15 – Tapping Screw (M3 X 10) (P/O PL
13.
5 It
em 10)
16 830E32600 Support
17 050E88781 Bin Tray
18 413W77559 Bearing
To Next Page
