1/05
8d-94
DocuColor 12/DCCS50
REP 15.2.18
Reissue
Finisher/Sorter
REP 15.2.18 Stacker Offset Home Sensor
Parts List on PL 18.19
Removal
WARNING
To avoid personal injury or shock, disconnect the Finisher cable connector. Switch off
the machine power and disconnect the machine Power Cord.
1. Switch off the printer power and disconnect the AC Power Cord.
2. Remove the Rear Lower Cover (REP 15.3.
15).
3. Remove the Stacker Offset Home Sensor (Figu
re 1).
1. Remove the screws (2) securing the Offset Home Sensor Bracket to the Finisher
fra
me, and remove the Bracket.
2. Free the two wire harnesses from the wire clamp that is attached to the Bracket. Dis-
connect P
/J1051 fr
om the Stacker Offset Home Sensor.
3. Press in and release the Sensor latches that secure the Sensor to the Bracket, and
remove t
he Sensor.

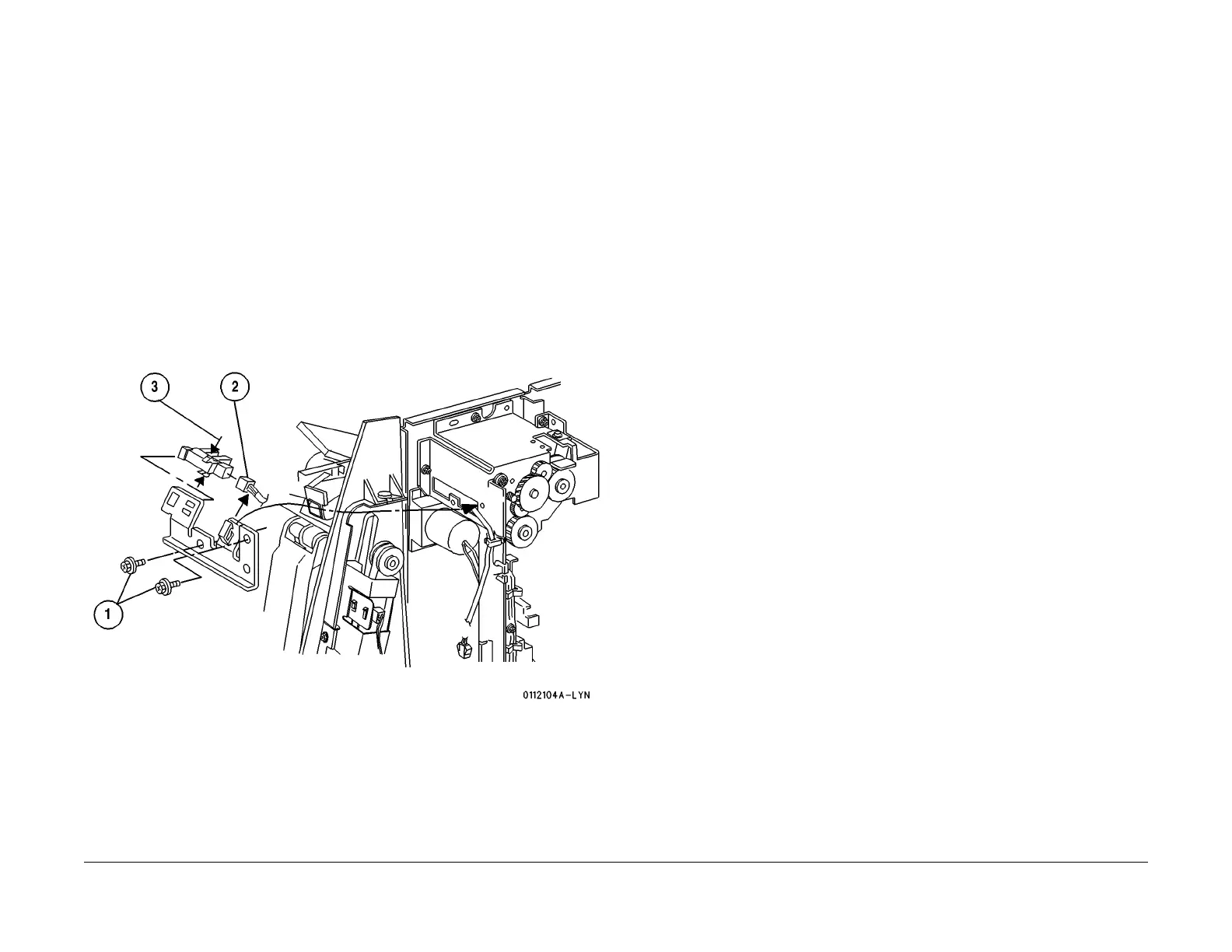

Figure 1 Remove the Stacker Offset Home Sensor
Replacement
1. Position the Stacker Offset Home Sensor into the cutout in the Sensor Bracket.
2. Reconnect P/J
1051 to the Stacker Offset Home Sensor.
3. Secure the two wire harnesses in the wire clamp that is attached to the Bracket.
4. Reinstall the Stacker Offset Home Sensor Bracket onto the Finisher frame. Use two
scr
ews to secure the Bracket to the frame.
5. Reinstall the Rear Lower Cover.
