1/05
5-279
DocuColor 12/DCCS50
PL 7.2
Parts Lists
Reissue

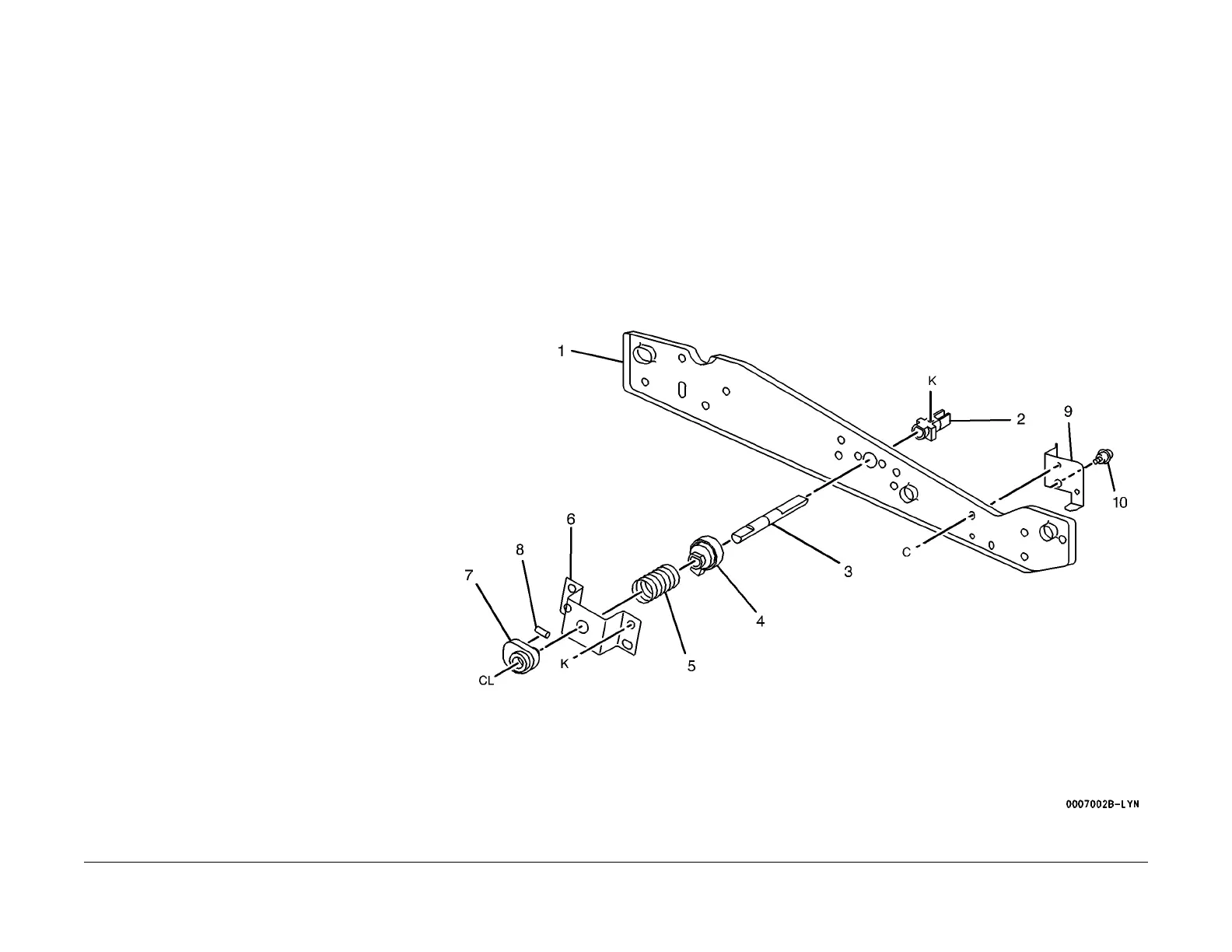

PL 7.2 Rail Front Plate
Item Part Description
1 – Front Plate (P/O PL 7.1 Item 9)
2 014E87701 Block
3 006E56632 Shaft
4 – Cam (P/O PL 7.1 Item 9)
5 009E43970 Spring
6 – Bracket (P/O PL 7.1 Item 9)
7 008E93400 Retract Cam
8 – Pin (P/O PL 7.1 Item 1)
9 – Bracket (P/O PL 7.1 Item 9)
10 – Screw (P/O PL 8.7 Item 9)
