DocuColor 12/DCCS50
REP 15.2.16
Reissue
Finisher/Sorter
REP 15.2.16 End Wall Motor
Parts List on PL 18.15
Removal
WARNING
To avoid personal injury or shock, disconnect the Finisher cable connector. Switch off
the machine power and disconnect the machine Power Cord.
1. Switch off the printer power and disconnect the AC Power Cord.
2. Remove the Stapler Cover Assembly (REP 15.3.
3).
3. Remove the End Wall Motor (Figu
re 1).
1. Remove the screws (2) securing the Harness Holder to the Finisher frame and push
the wire harness
to one side.
2. Remove the End Wall Spring.
3. Remove the screws (2) securing the End Wall Motor Bracket to the finisher frame.
Remove t
he Bracket along with the attached End Wall Motor.
4. Release the end Wall Motor wire harness from the harness clips.
5. Disconnect the End Wall Motor wire harness at the back of the motor or disconnect
P/J1083.
6. Remov
e the screws (2) securing the End Wall Motor to the Bracket, and remove the
Motor
.

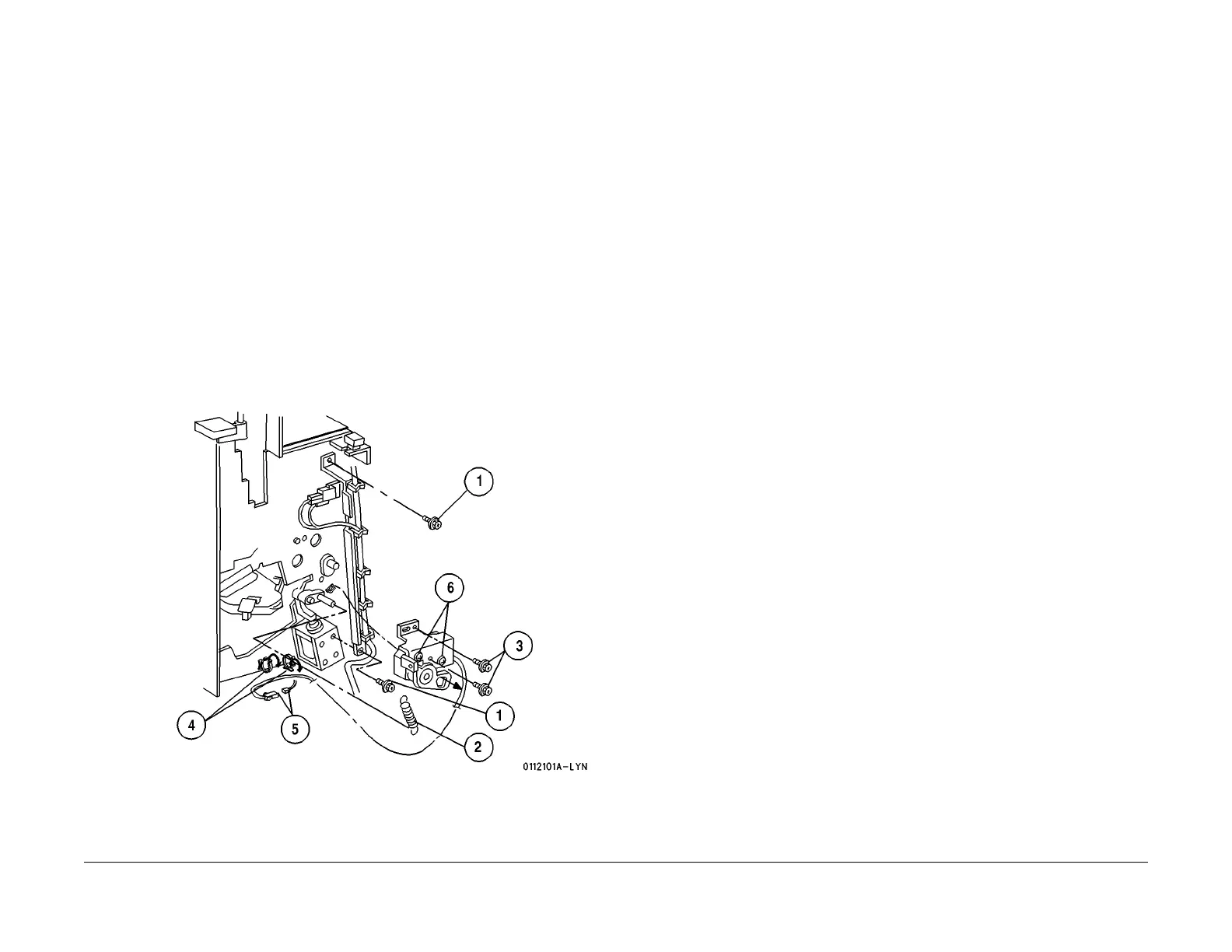

Figure 1 Remove the End Wall Motor
Replacement
1. Reinstall the End Wall Motor onto the Motor Bracket.
2. Reconnect the End Wall Motor Wire Harness.
3. Reinstall the End Wall Motor Bracket onto the Finisher frame, making sure the End Wall
Link is
captured inside the End Wall Motor yoke.
4. Connect the End Wall Motor Connector P/J1083.
5. Use t
he screws (2) to secure the End Wall Motor Bracket to the Finisher frame.
6. Reinstall the End Wall Spring, with one end of the Spring attached to the End Wall
7. Install the Stapler Cover Assembly.
