Xerox DocuColor 12/DCCS50

1/05
10-132
DocuColor 12/DCCS50
Process Controls
Reissue
Principles of Operation
• The calculated ADC Density from the IBT is converted to a rotation time of the
Developer Dispense Motor for each color.
Refer to the following Figure 1 for an illustrative overview of how Electrostatic and Developabil-
ity Controls function.

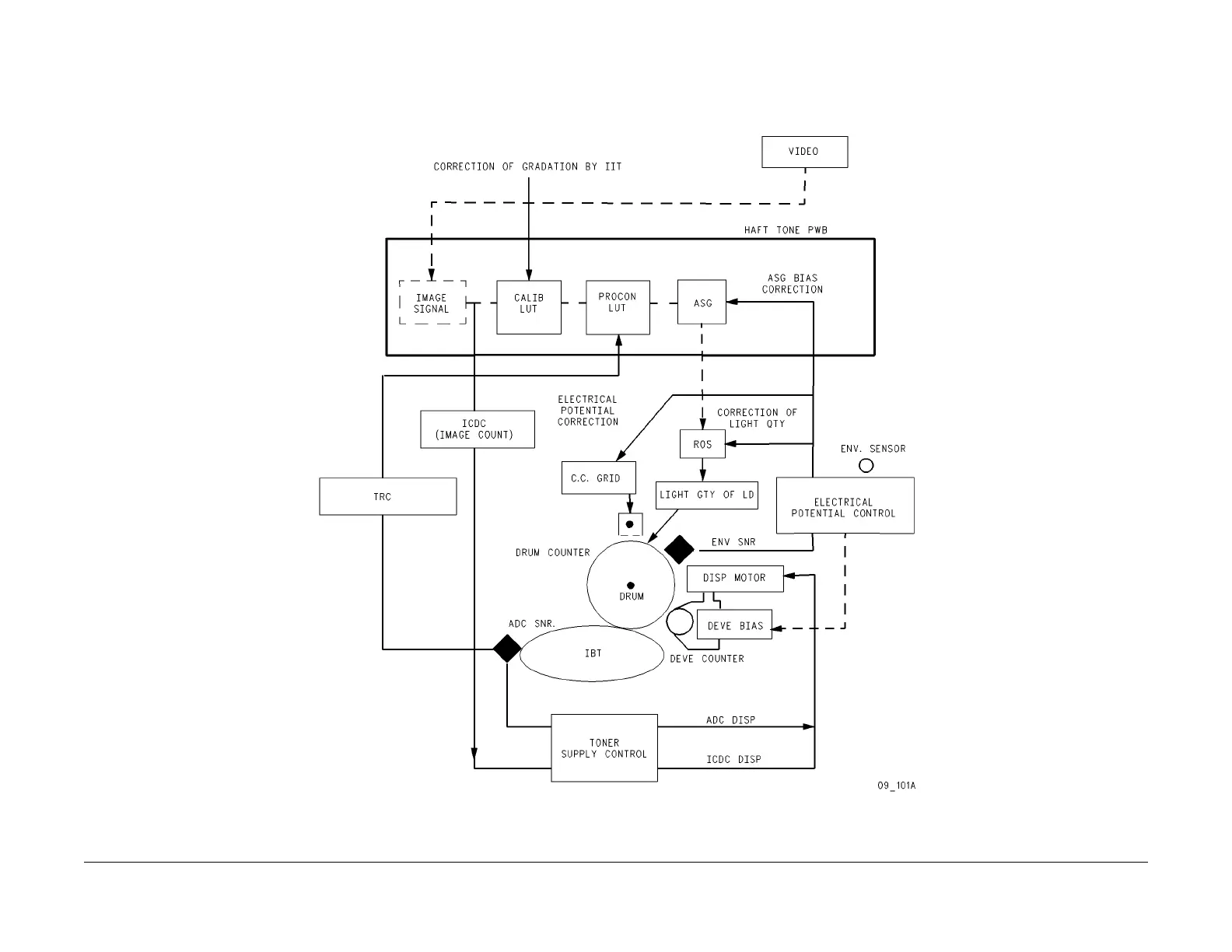

Figure 1 Process Controls overview
