REP 2.12.2, REP 2.14.1
Repairs and Adjustments
Reissue
Installation

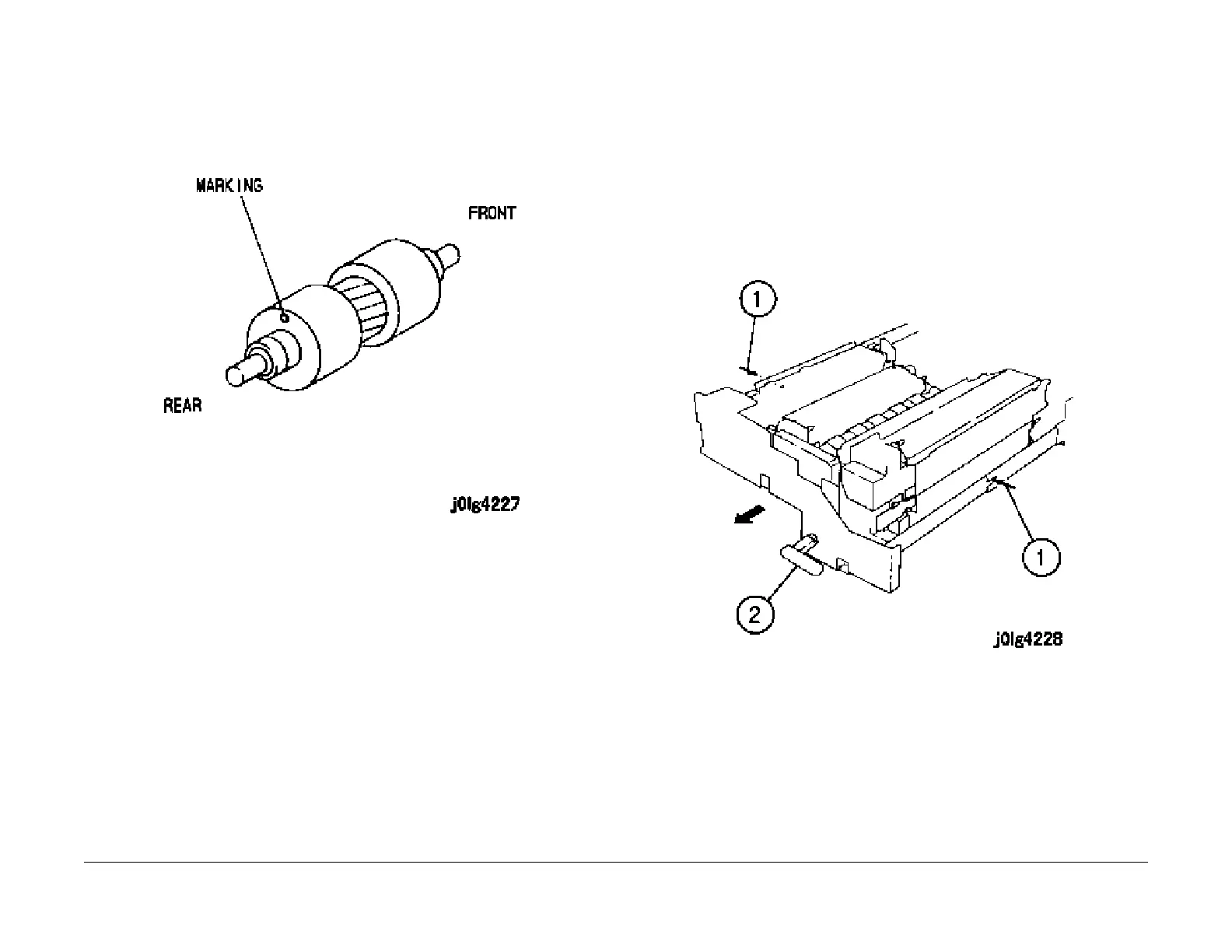

NOTE: When installing the Tray 5 Retard Roll, make sure that the marking is at the rear (Figure
3).
Figure 3 Reassembly
1. Reinstall the parts in the reverse order of disassembly.
REP 2.14.1 Regi. Unit
Parts List on PL 2.14
Removal
WARNING
Turn power off and disconnect the power plug.
1. Open the Front Door.
2. Push the lever down and pull out the drawer assembly.
3. Pull the drawer assembly out to a maintenance position. (Figure 1
)
1. Push the stoppers on both sides.
2. Pull out the drawer assembly.
Figure 1 Opening the Drawer
4. Remove the following parts:
a. Drawer Cover (PL 2.18)
b. Knob (PL 2.22 I
tem 9)
c. Oil Cartridge (PL 8.1 It
em 5)
d. Cartridge Guide (PL 8.1
Item 4)
5. Remove the ground wire (Figure 2).
1.
Remove the screws (2).
