Xerox DocuColor 12/DCCS50

1/05
4-34
DocuColor 12/DCCS50
REP 2.14.1
Reissue
Repairs and Adjustments
2. Remove the plate.
3. Release the clamp and remove the wire.
4. Remove the screw.
5. Pull out the ground wire from the hole.

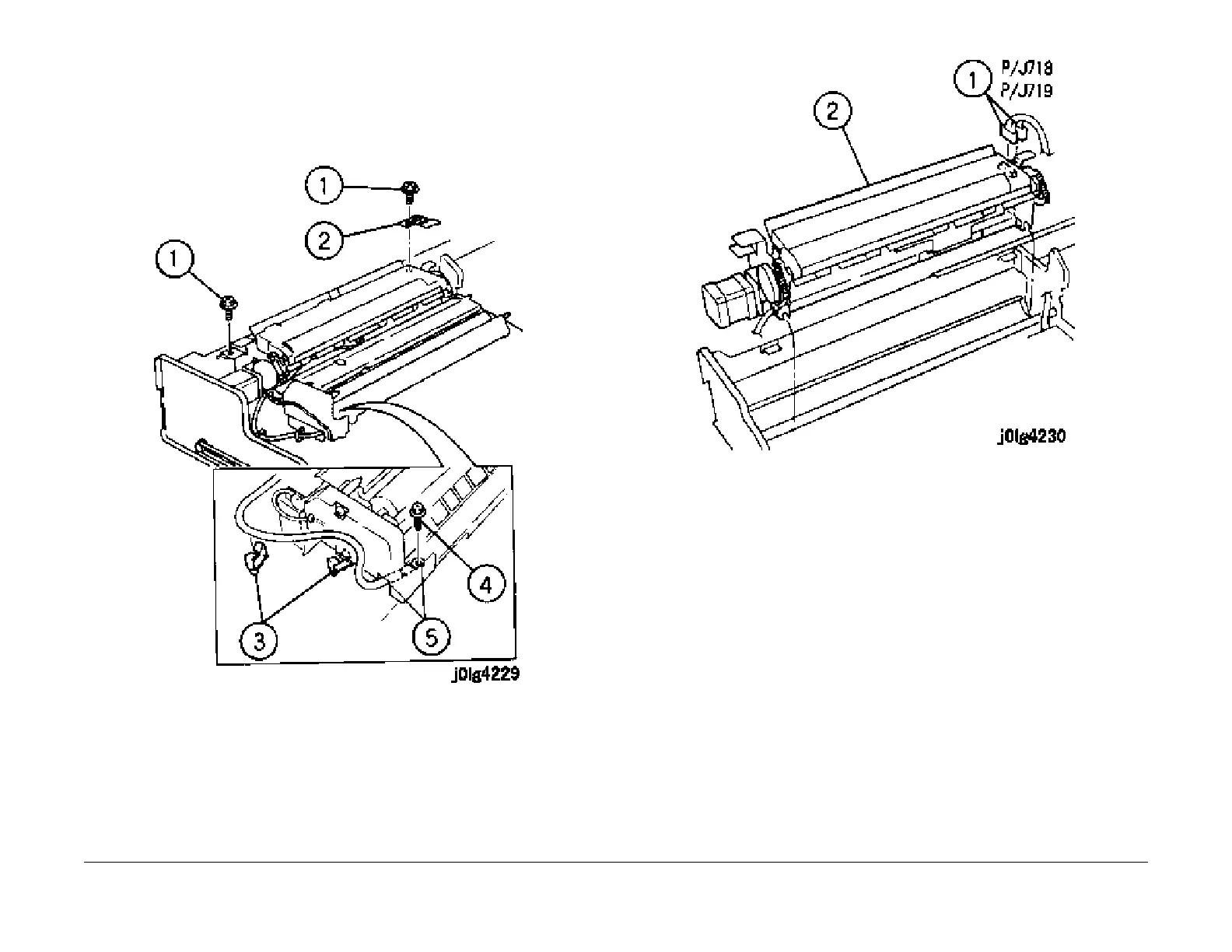

Figure 2 Removing the Ground Wire
6. Remove the Regi. Unit. (Fi
gu
re 3)
1. Disconnect the connectors (2).
2. Remove the Regi. Unit.
Figure 3 Removing the Regi. Unit
Installation
1. Reinstall the parts in the reverse order of disassembly.
