Xerox DocuColor 12/DCCS50 User Manual

1/05
5-228
DocuColor 12/DCCS50
PL 1.2
Reissue
Parts Lists

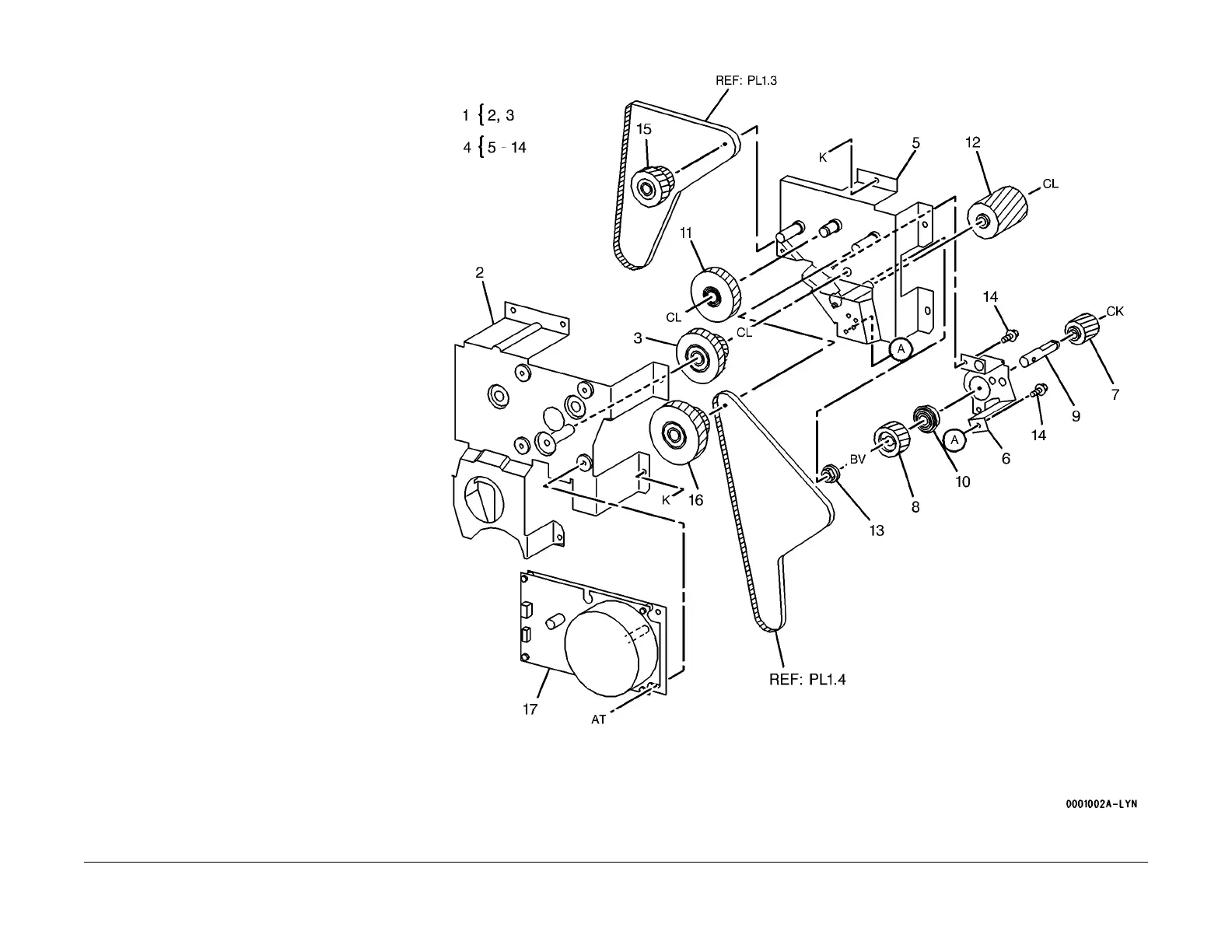

PL 1.2 Main Motor, Drum Brush Drive
Item Part Description
1 007K84820 Main Motor Bracket Assembly
2 – Bracket (Main Motor) (P/O PL 1.2
Item
1)
3 007K84170 Gear (56/20)
4 007K84634 Drum Brush Drive Assembly
5 – Bracket (P/O PL 1.2 Item 4)
6 – Bracket (P/O PL 1.2 Item 4)
7 007E50120 Gear (Drum Brush)
8 007E49980 Gear
9 – Shaft (P/O PL 1.2 Item 4)
10 – Bearing (P/O PL 1.2 Item 4)
11 007K84701 Gear
12 007E50112 Gear
13 – Bearing (P/O PL 1.2 Item 4)
14 – Screw (P/O PL 1.2 Item 4)
15 007K84641 Gear Pulley (42/27)
16 007K84650 Gear Pulley (56/27)
17 127K21321 Main Motor
