1/05

5-292

DocuColor 12/DCCS50

PL 8.6

Reissue

Parts Lists

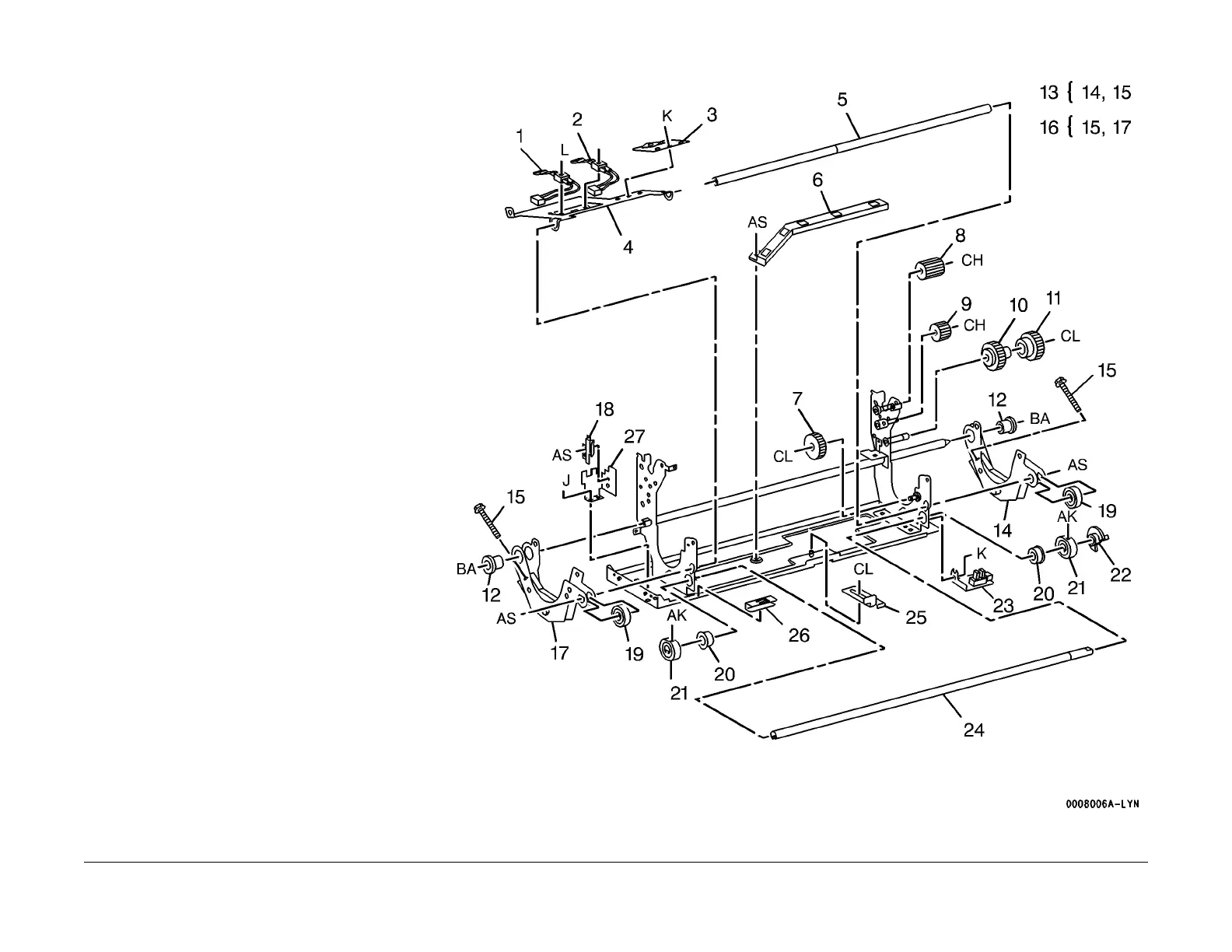

PL 8.6 Pressure Roll Sensor, Pressure

Roll Nip

Item Part Description

1 130K57380 P/R Overheat Thermistor

2 130K57370 P/R Control Thermistor

3 130K87470 P/R Thermostat

4 068K87410 Bracket

5 – Shaft (P/O PL 8.1 Item 1)

6 – Harness Cover (P/O PL 8.1 Item 1)

7 007E49760 Gear (28)

8 007E51500 Gear (20)

9 007E49740 Gear (20)

10 007K84130 Gear (32)

11 007K84140 Gear (34)

12 – Bearing (P/O PL 8.1 Item 1)

13 011K94040 Rear Lever Assembly

14 – Rear Lever (P/O PL 8.6 Item 13)

15 026K80720 Adjust Screw

16 011K94030 Front Lever Assembly

17 – Front Lever (P/O PL 8.6 Item 16)

18 – Holder (P/O PL 8.1 Item 1)

19 013E87730 Bearing

20 413W10650 Bearing

21 008E93160 Cam

22 120E12630 Actuator

23 015K33670 Nip Sensor

24 – Shaft (P/O PL 8.1 Item 1)

25 – Stand Plate (P/O PL 8.1 Item 1)

26 – Harness Guard (P/O PL 8.1 Item 1)

27 – Bracket (P/O PL 8.1 Item 1)
